Yamaha MX825 - ECU, RECTIFIER;REGULATOR, AND FUSES

3-8
1
2
3
4
5
6
7
8
9
10
ENGINE

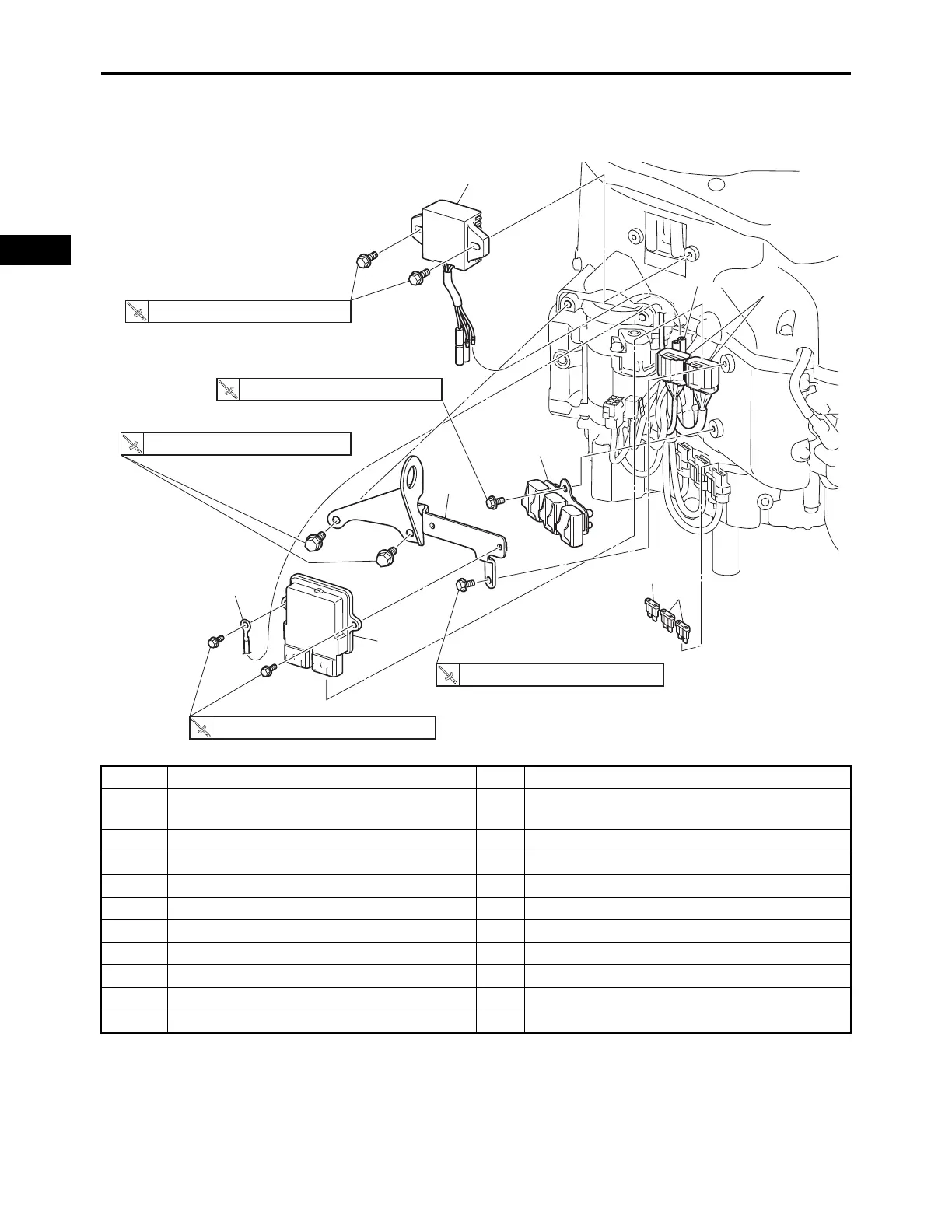

ECU, RECTIFIER/REGULATOR, AND FUSES
ECU, RECTIFIER/REGULATOR, AND FUSES
Order Job/Parts to remove Q’ty Remarks
Removing the ECU, rectifier/regulator,
and fuses
Remove the parts in the order listed.
1 ECU coupler 2 Disconnect.
2 Earth terminal 1
3ECU 1
4 Engine hunger 1 For maintenance.
5 Rectifier/regulator lead connector 4 Disconnect.
6 Rectifier/regulator 1
7 Fuse holder bracket 1
8 Fuse 1 30 A
9 Fuse 2 10 A
20 N・m (2.0 kgf・m, 14 lb・ft)
4.0 N・m (0.40 kgf・m, 2.9 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
1
2
3
4
5
6
7
8
9
