FUEL
4-1
FUEL

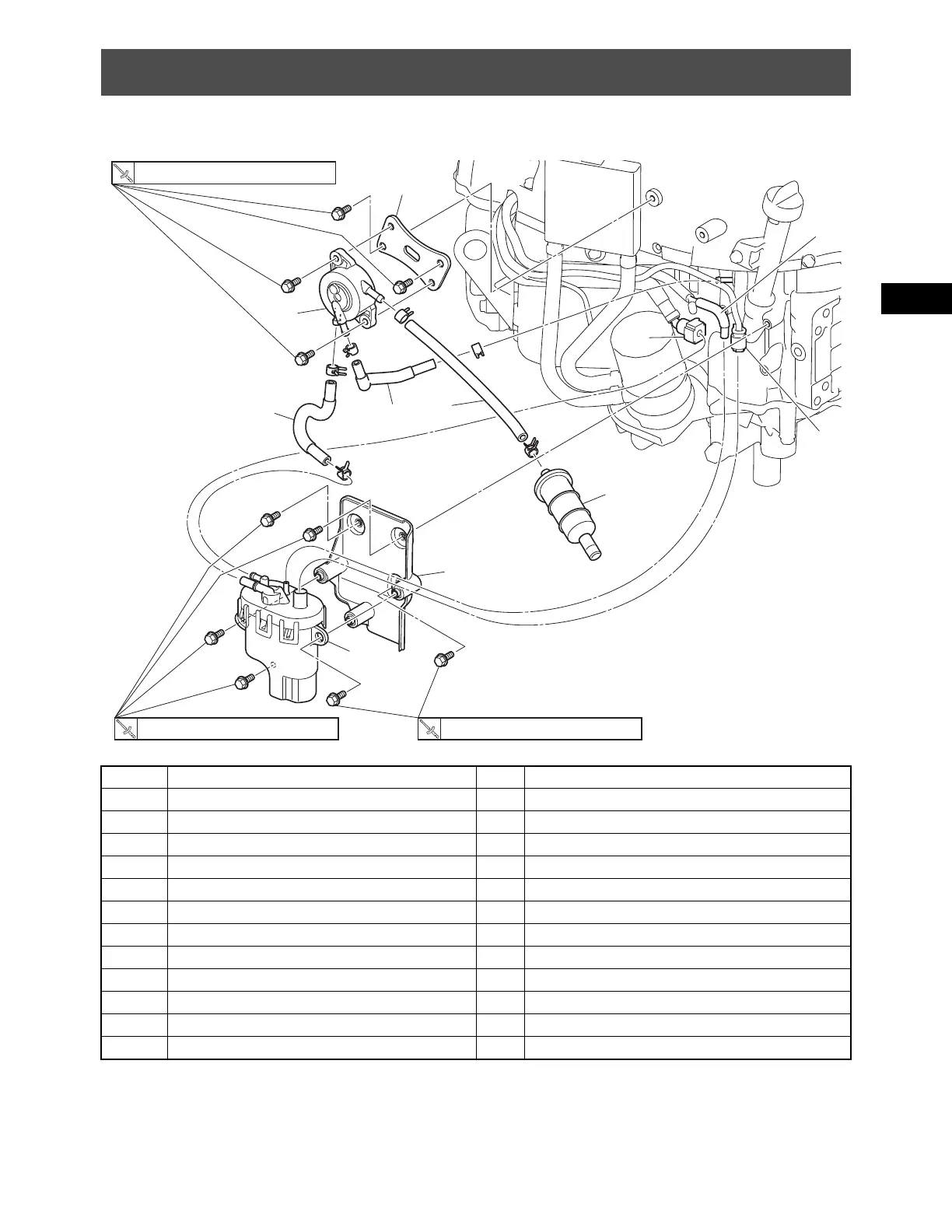

FUEL PUMPS
Order Job/Parts to remove Q’ty Remarks
Removing the fuel pumps Remove the parts in the order listed.
1 Fuel filter 1
2 Fuel hose 1
3 Low-pressure fuel pump 1
4 Fuel pump bracket 1
5 Fuel injector pipe 1 1 Disconnect.
6 Purge hose 2 1 Disconnect.
7 High-pressure fuel pump lead coupler 1 Disconnect.
8 High-pressure fuel pump 1
9 Fuel pump bracket 1
10 Pulsar hose 1
11 Fuel delivery hose 1
7 N・m (0.7 kgf・m, 5.1 lb・ft)
9 N・m (0.9 kgf・m, 6.5 lb・ft) 9 N・m (0.9 kgf・m, 6.5 lb・ft)
1
2
3
5
6
7
8
9
11
10
4
