ENGINE
FLYWHEEL AND STATOR COIL ASSEMBLY

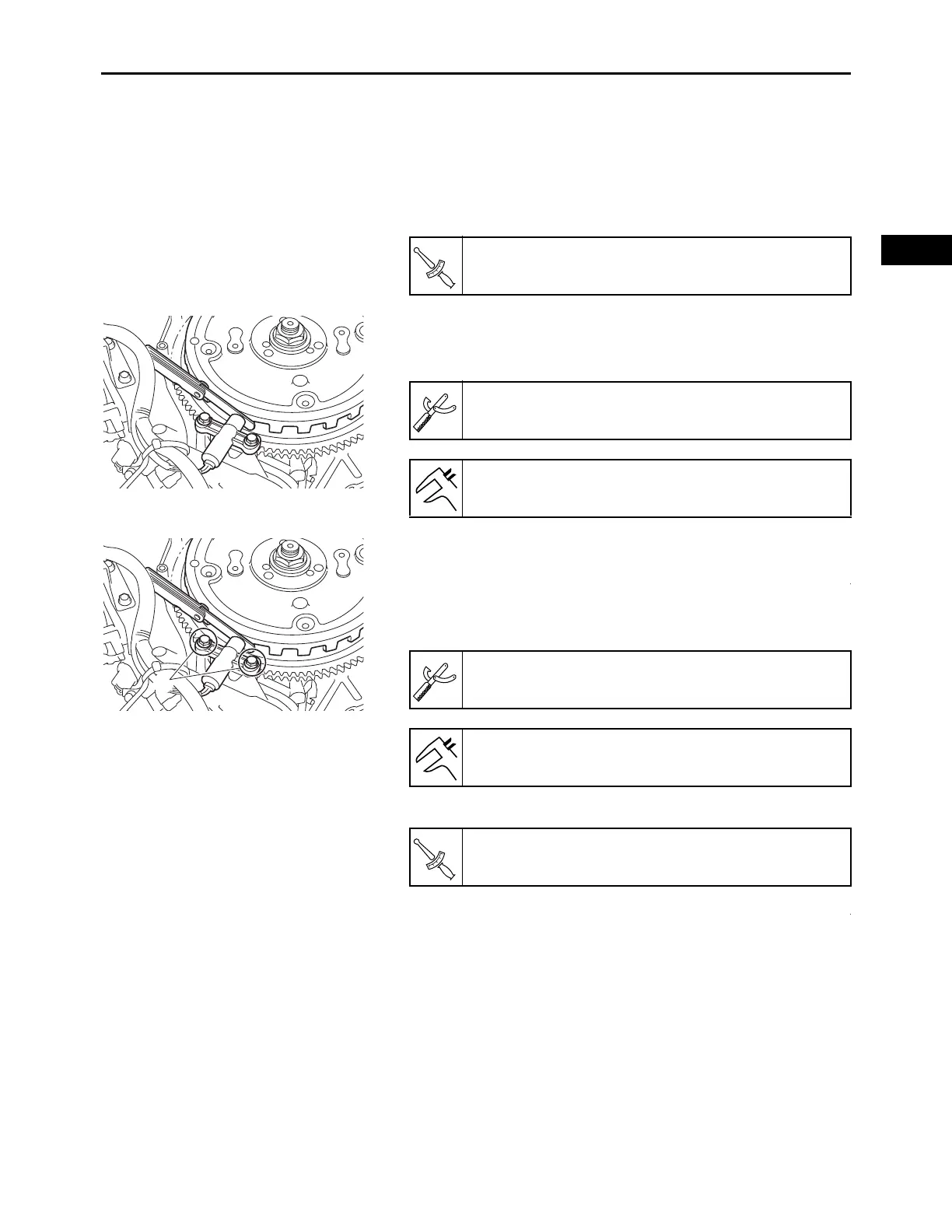

INSTALLING THE CRANKSHAFT POSITION
SENSOR
1. Install:
• Crankshaft position sensor
• Crankshaft position sensor bolts
2. Measure:
• Crankshaft position sensor air gap
Out of specification  Adjust.
3. Adjust:
• Crankshaft position sensor air gap
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Loosen the crankshaft position sensor bolts “1”.
b. Adjust the crankshaft position sensor air gap.
c. Tighten the crankshaft position sensor bolts “1”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Crankshaft position sensor bolt:
7 N·m (0.7 kgf·m, 5.1 lb·ft)
T
R
.
.
Feeler gauge set:
YU-26900-9
Crankshaft position sensor air gap:
0.5–1.5 mm (0.02–0.06 in)
1
Feeler gauge set:
YU-26900-9
Crankshaft position sensor air gap:
0.5–1.5 mm (0.02–0.06 in)
Crankshaft position sensor bolt:
7 N·m (0.7 kgf·m, 5.1 lb·ft)
T
R
.
.
