Yamaha MX825 - Page 61

3-21
1
2
3
4
5
6
7
8
9
10
ENGINE

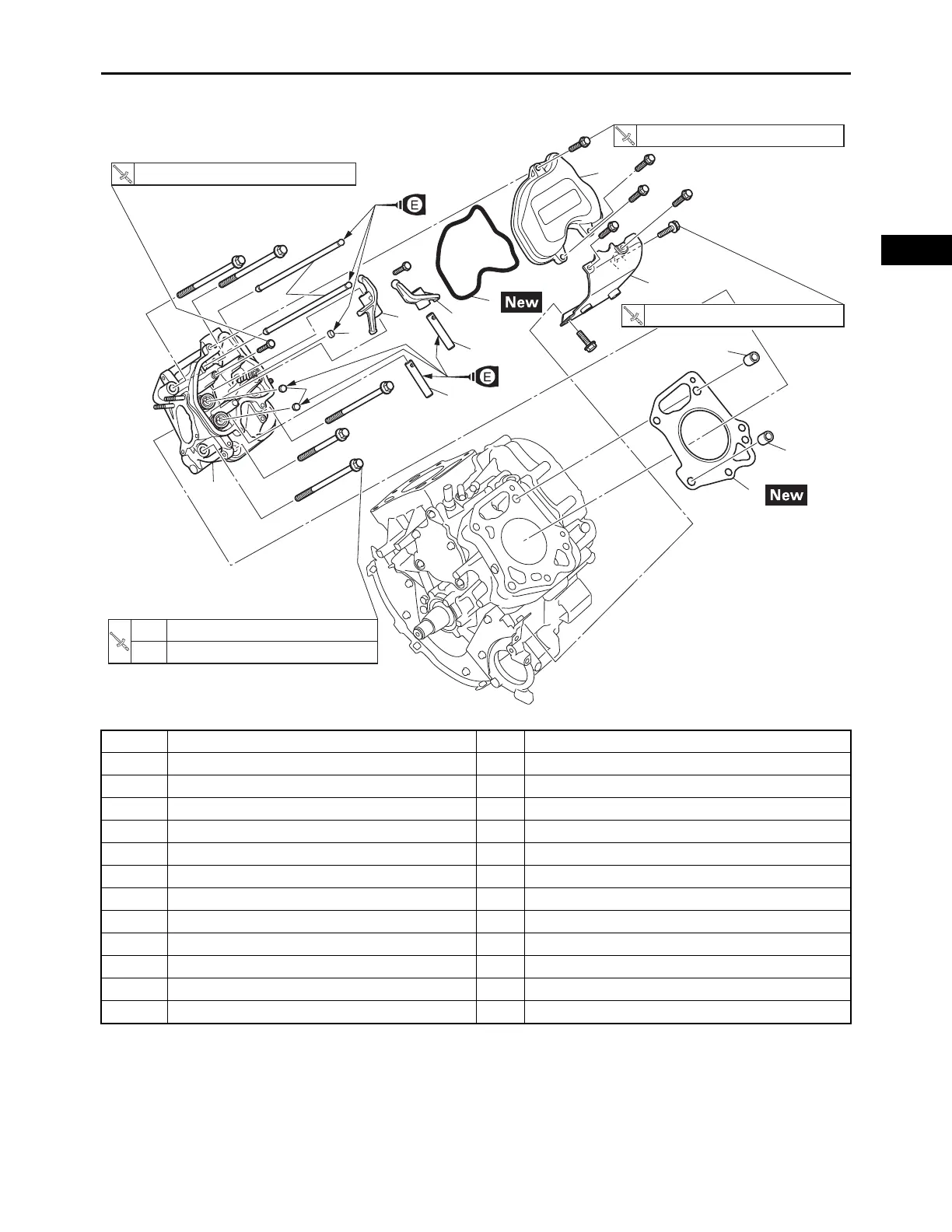

CYLINDER HEAD COVERS, CYLINDER HEADS
Order Job/Parts to remove Q’ty Remarks
1 Cylinder air shroud 1
2 Cylinder head cover 1
3 Cylinder head cover gasket 1
4 Rocker arm shaft 1 Intake
5 Rocker arm shaft 1 Exhaust
6 Rocker arm 1 Intake
7 Rocker arm 1 Exhaust
8 Adjusting pad 3
9Push rod 2
10 Cylinder head assembly #1 1
11 Cylinder head gasket 1
12 Dowel pin 2
1
2
3
4
5
6
7
8
8
9
10
11
12
12
11 N・m (1.1 kgf・m, 8.0 lb・ft)
4.0 N・m (0.40 kgf・m, 2.9 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
50 N・m (5.0 kgf・m, 36 lb・ft)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
1st
2nd
