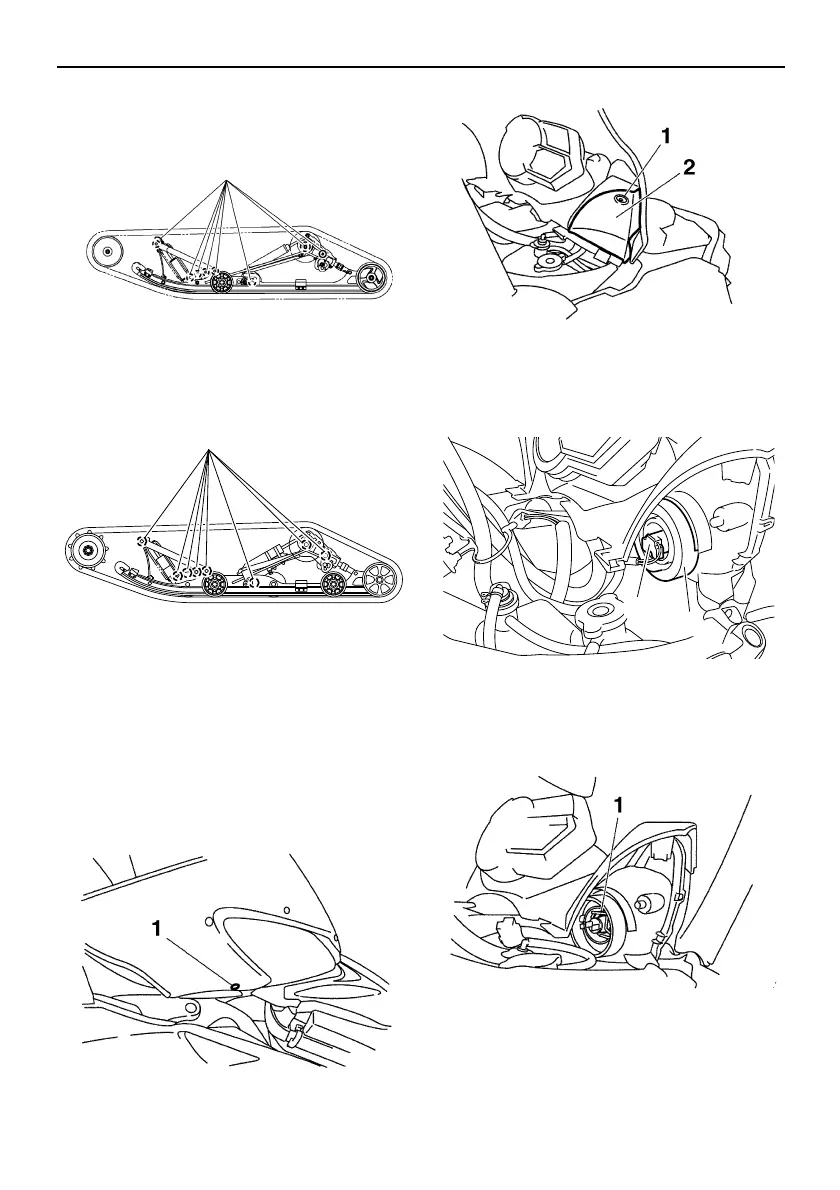

Replacing a headlight bulb
RS90P / RS90PLT
1. Remove the top cover. (See page 62 for
removal procedures.)
2. Remove the screws, and then remove
the headlight access panel.
3. Disconnect the headlight coupler.
4. Remove the bulb holder cover.
5. Unhook the bulb holder, and then remove
the burnt-out bulb.
6. Install a new bulb, and then hook the bulb
holder onto the headlight unit. NOTICE:
Keep oil and your hands away from
1. Grease nipple
1. Grease nipple
1. Screw
1
1
1. Screw
2. Headlight access panel
1. Headlight coupler
2. Bulb holder cover
1. Bulb holder
1
2
