Replacing a fuse
WARNING
EWS00550
Be sure to use the specified fuse. A wrong
fuse could cause electrical system dam-
age or A FIRE HAZARD.
NOTICE
ECS00631
Be sure to turn the main switch to the off
position and disconnect the negative bat-
tery lead to prevent accidental short-cir-
cuiting.
RS90P / RS90PLT / RST90PGT
The main fuse and the fuel injection system
fuse are located under the air filter case. The
fuse box, which contains the fuses for the in-
dividual circuits, is located behind the right
side cover.

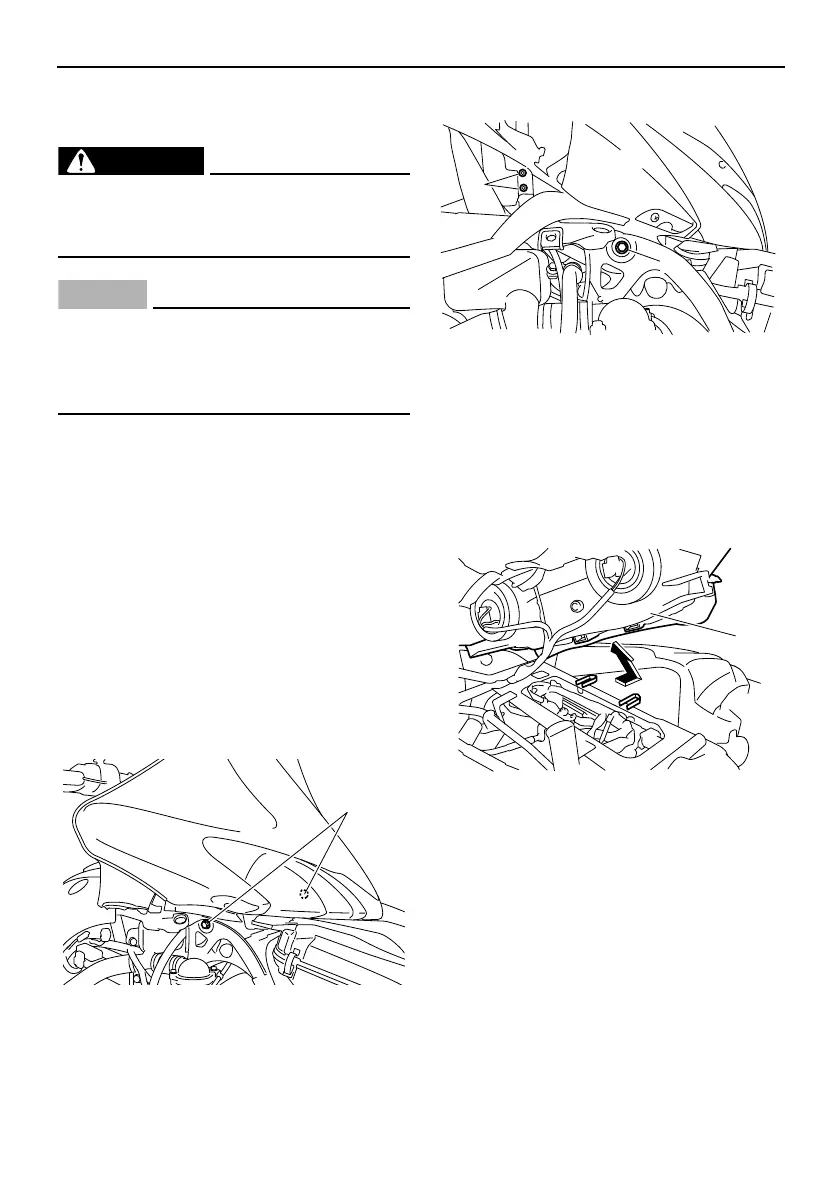

1. Remove the shroud, the left and right
side covers, and the top cover. (See page
62 for removal procedures.)
2. Remove the headlight unit bolt and the
windshield stay bolts (RST90PGT) on
each side of the snowmobile.
RS90P / RS90PLT
RST90PGT
3. Unhook the headlight unit as shown, then
lift it up and move it rearward, away from
the air filter case cover. NOTICE: Be
careful not to scratch the snowmobile
when moving the headlight unit.
[ECS00920]
4. Unhook the air filter case fastener and
disconnect the air temperature sensor
coupler.
1. Headlight unit bolt
1
1. Headlight unit bolt
2. Windshield stay bolt
1. Headlight unit
1
2
1
