RST90
RST90PGT
ESU14050
Passenger footrests (RST90 /
RST90PGT)
The passenger footrests can be installed in
two (RST90) or three (RST90PGT) different
positions to suit the passenger’s preference.
To change the position of a footrest, remove
the screws, place the footrest in the desired
position, and then install and tighten the
screws.
NOTICE
ECS00131
● Make sure that the screws are tightened
securely after changing the position of
the footrests.
● Do not overtighten the screws, other-
wise the footrest may be damaged.
ESU14130
Backrest (RST90 / RST90PGT)
WARNING
EWS00131
Do not sit on the backrest. Otherwise, you
could lose your balance, fall, and be in-
jured.
The angle (RST90 / RST90PGT) and position
(RST90PGT) of the backrest are adjustable.
To adjust the backrest angle
Turn the backrest adjusting knob until the
backrest reaches the desired angle.
1. Passenger grip warmer switch
2. Off
3. “HI” (high)
4. “LO” (low)
1. Passenger grip warmer switch
2. Off
3. “HI” (high)
4. “LO” (low)
HI LO
1
3
2
4

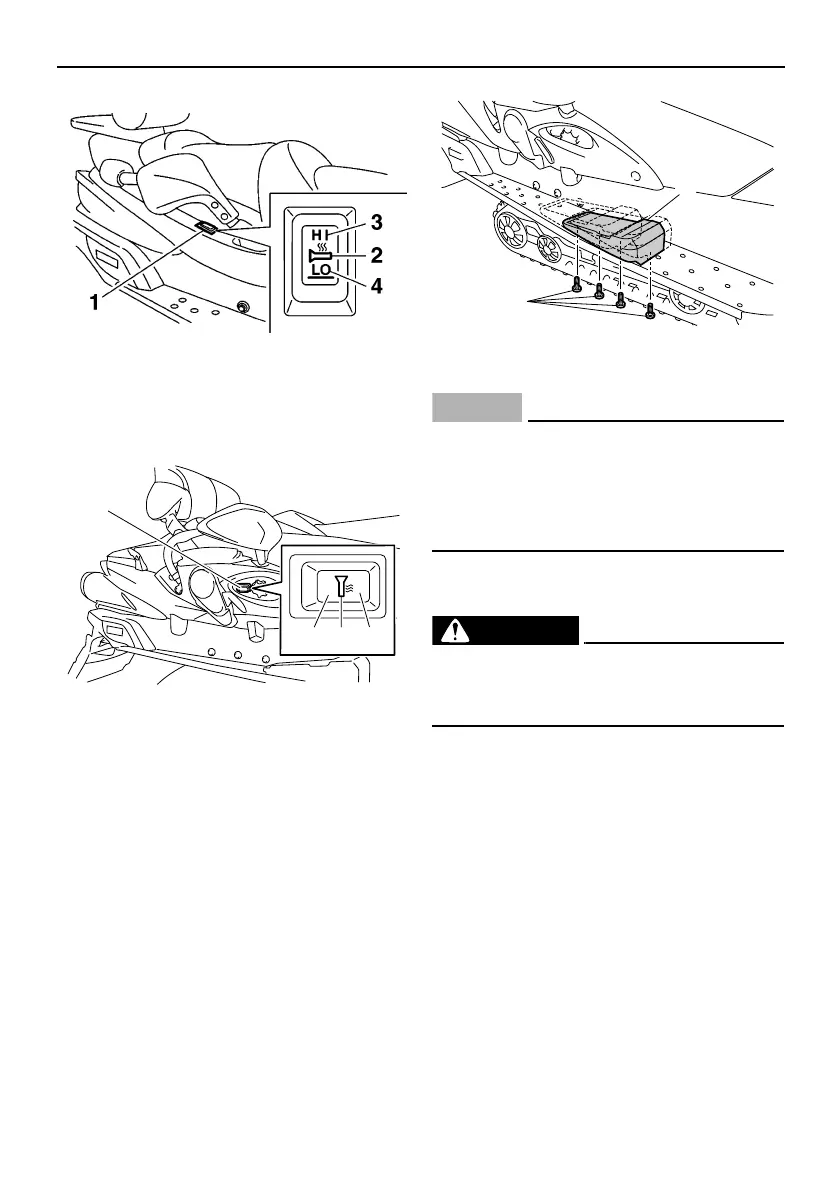

1. Footrest
2. Screw
2
1
