Control functions
29

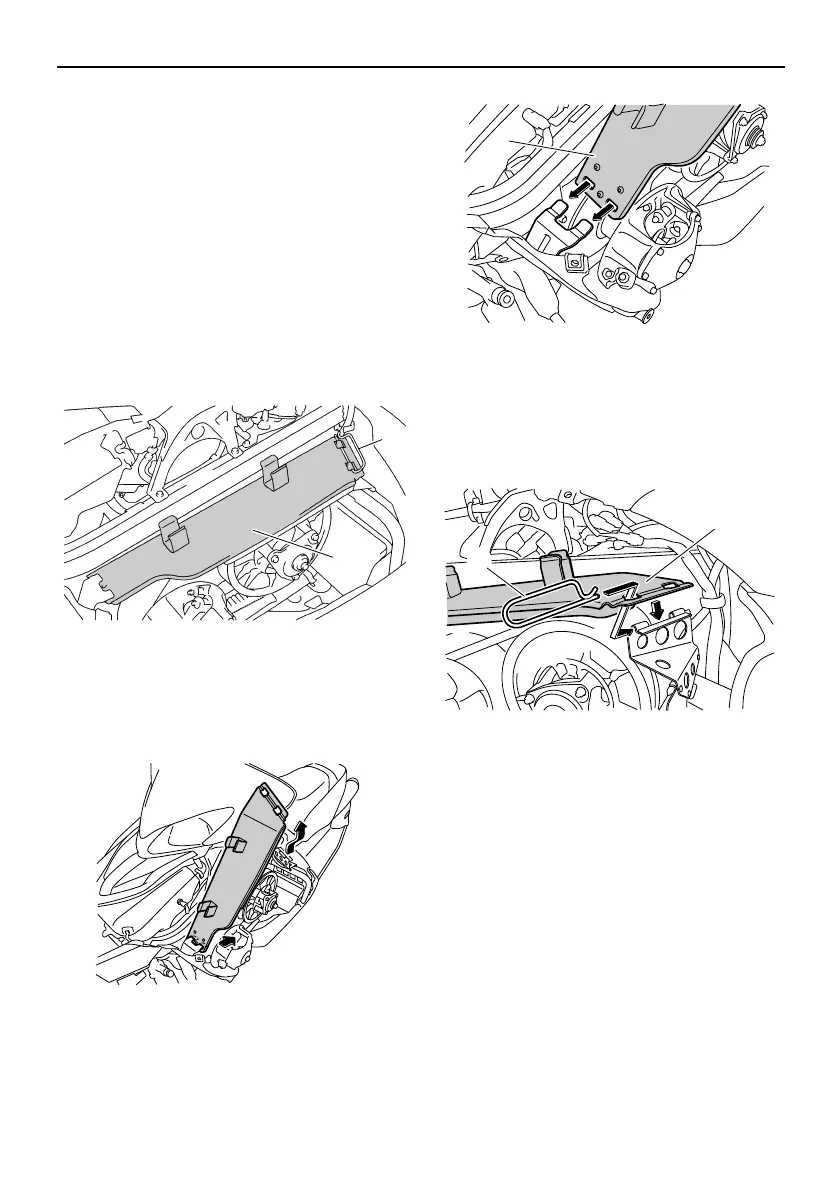

The drive guard is designed to protect the V-
belt clutch and V-belt in case parts break or
come loose.
The drive guard is located behind the left side
cover [RS90P / RS90PLT / RST90PGT (see
page 62 for information on how to access the
drive guard)], or under the shroud [RST90
(see page 66 for information on how to access
the drive guard)].
To remove the drive guard
1. Pull out the drive guard locking pin from
the drive guard rear holder.
2. Lift up the rear of the drive guard as
shown, and then pull the guard rearward
to remove it.
To install the drive guard
1. Fit the front slots in the drive guard over
the projections on the drive guard front
holder.
2. Align the slots in the rear of the drive
guard with the projections on the drive
guard rear holder, and then insert the
drive guard locking pin into the holder as
shown.
ESU10761
V-belt holders
Keep a spare V-belt for emergency use by
placing it into the V-belt holders provided.
1. Drive guard
2. Drive guard locking pin
2
1
1. Drive guard
1. Drive guard
2. Drive guard locking pin
1
1
2
