Periodic maintenance and adjustment
90

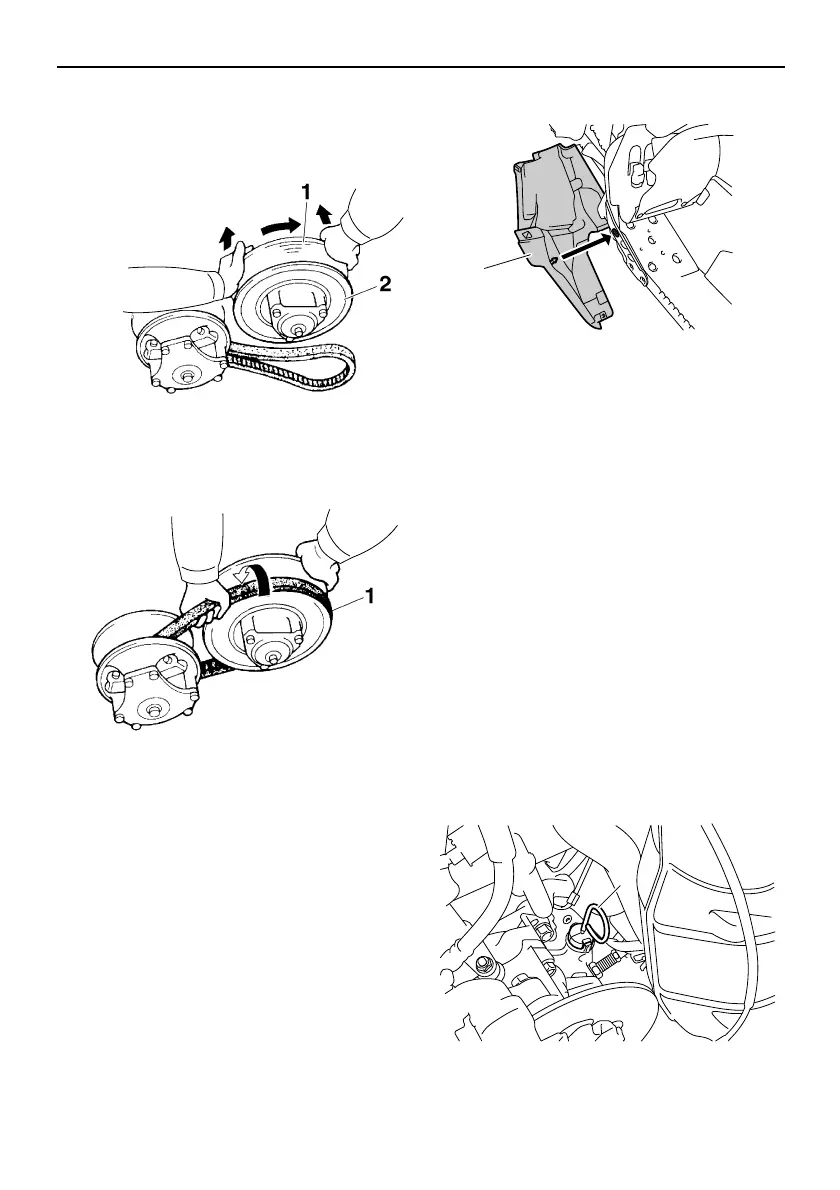

11. Rotate the secondary sliding sheave
clockwise and push it so that it separates
from the secondary fixed sheave.
12. Install the V-belt between the secondary
sliding and fixed sheaves.
13. Place the left lower cover in the original
position, and then install the screws and
the bolts. (RS90P / RS90PLT /
RST90PGT).
RS90P / RS90PLT / RST90PGT
14. Install the drive guard, and then install the
left side cover and the shroud, or close
the shroud.
ESU13924
Drive chain housing
To check the drive chain housing oil
level
1. Place the snowmobile on a level surface
and apply the parking brake.
2. Remove the shroud and the right side
cover [RS90P / RS90PLT / RST90PGT
(see page 62 for the procedures)], or
open the shroud [RST90 (see page 66 for
the procedures)].
3. Remove the dipstick, wipe it off with a
clean rag, and then insert it back into the
filler hole.
RS90P / RS90PLT / RST90PGT
1. Secondary sliding sheave
2. Secondary fixed sheave
1. V-belt
1. Left lower cover
1. Dipstick
1
1
