Control functions
19
ESU10427
Fuel meter and grip/thumb
warmer level indicator
The fuel meter and grip/thumb warmer level
indicator have eight segments which show
the amount of fuel remaining in the fuel tank,
the grip warmer level, or the thumb warmer
level.
RS90P / RS90PLT / RST90PGT
RST90
Fuel meter
The display segments of the fuel meter disap-
pear towards “E” (Empty) as the fuel level de-
creases. When only one segment is left near
“E”, the fuel level warning indicator and the
warning light come on.
RS90P / RS90PLT / RST90PGT
RST90
If the fuel level warning indicator and the
warning light come on, refuel as soon as pos-
sible.
TIP
The snowmobile must be stopped on a level
surface to obtain an accurate fuel meter read-
ing, since the reading changes according to
the movement and inclination of the snowmo-
bile.
Grip/thumb warmer level indicator
When the grip warmer adjusting switch is
pressed, the grip warmer indicator comes on
and the display switches to the grip warmer
level.

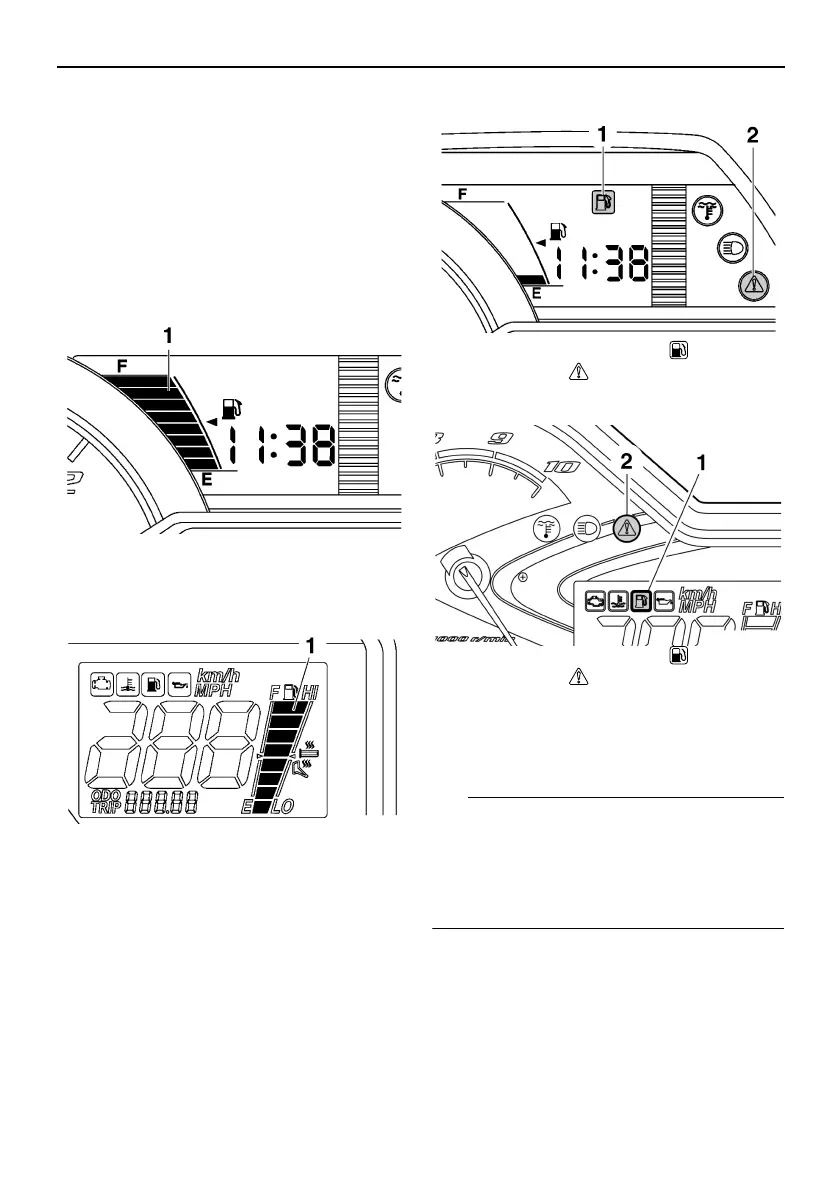

1. Fuel meter and grip/thumb warmer level in-
dicator
1. Fuel meter and grip/thumb warmer level in-
dicator
1. Fuel level warning indicator “ ”
2. Warning light “ ”
1. Fuel level warning indicator “ ”
2. Warning light “ ”
