Control functions
32
RST90
RST90PGT
RST90PGT
To adjust the backrest position
Pull the backrest adjusting lever upward, and
then move the backrest to the desired posi-
tion.
When riding without a passenger, the back-
rest can be moved to the forward-most posi-
tion, and its angle can be adjusted to suit the
operator’s preference as shown.
ESU14120
Storage compartment (RS90P /
RS90PLT / RST90PGT)
RS90P / RS90PLT
The storage compartment is located behind
the seat. Use the storage compartment to
store the tool kit, manuals, spare parts, or oth-
er small items.
To open the storage compartment
Turn the fastener 1/2 turn in either direction,
and then fold the storage compartment cover
up.

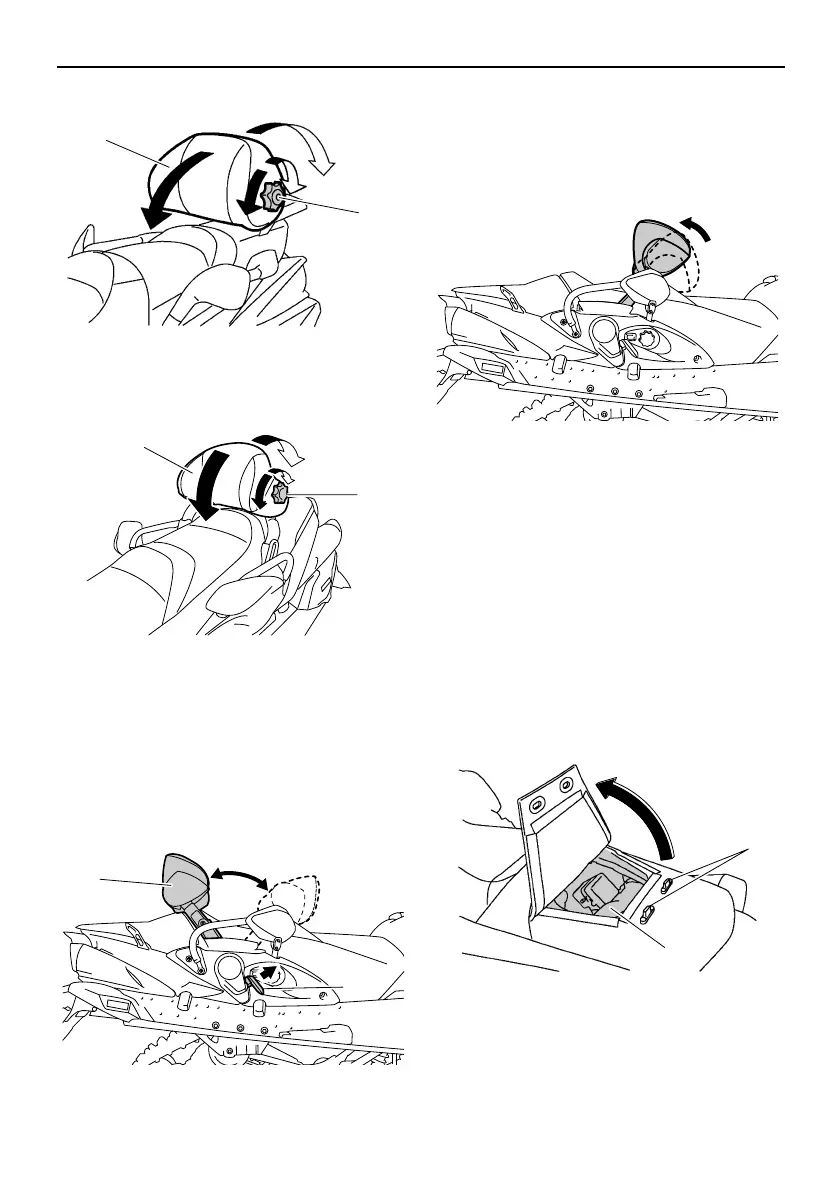

1. Backrest
2. Backrest adjusting knob
1. Backrest
2. Backrest adjusting knob
1. Backrest
2. Backrest adjusting lever
2
1
2
1
2
1
1. Fastener
2. Storage compartment
2
1
