3. Align the holes in the backrest bracket
with the bolts on the carrier lock bracket,
and then place the backrest on the carrier
lock bracket.
4. Align the holes in the rear carrier with the
bolts on the carrier lock bracket, and then
place the rear carrier on the carrier lock
bracket.
5. Slide both the backrest and the rear car-
rier backward until they stop.
6. Pull the carrier lock lever up to lock the
backrest and the rear carrier in place.
Then, place the lever under the rear car-
rier and secure it with the holder.
ESU10605
Fuel
EWS00071
Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and ex-
plosions and to reduce the risk of injury
when refueling, follow these instructions.
Make sure there is sufficient gasoline in the
tank.
1. Before refueling, turn off the engine and
be sure that nobody is on the snowmo-
bile. Never refuel while smoking, or while
in the vicinity of sparks, open flames, or
other sources of ignition such as the pilot
lights of water heaters and clothes dry-
ers.
2. Do not overfill the fuel tank. Stop filling
when the fuel reaches the bottom of the
filler tube. Because fuel expands when it
heats up, heat from the engine or the sun
can cause fuel to spill out of the fuel tank.

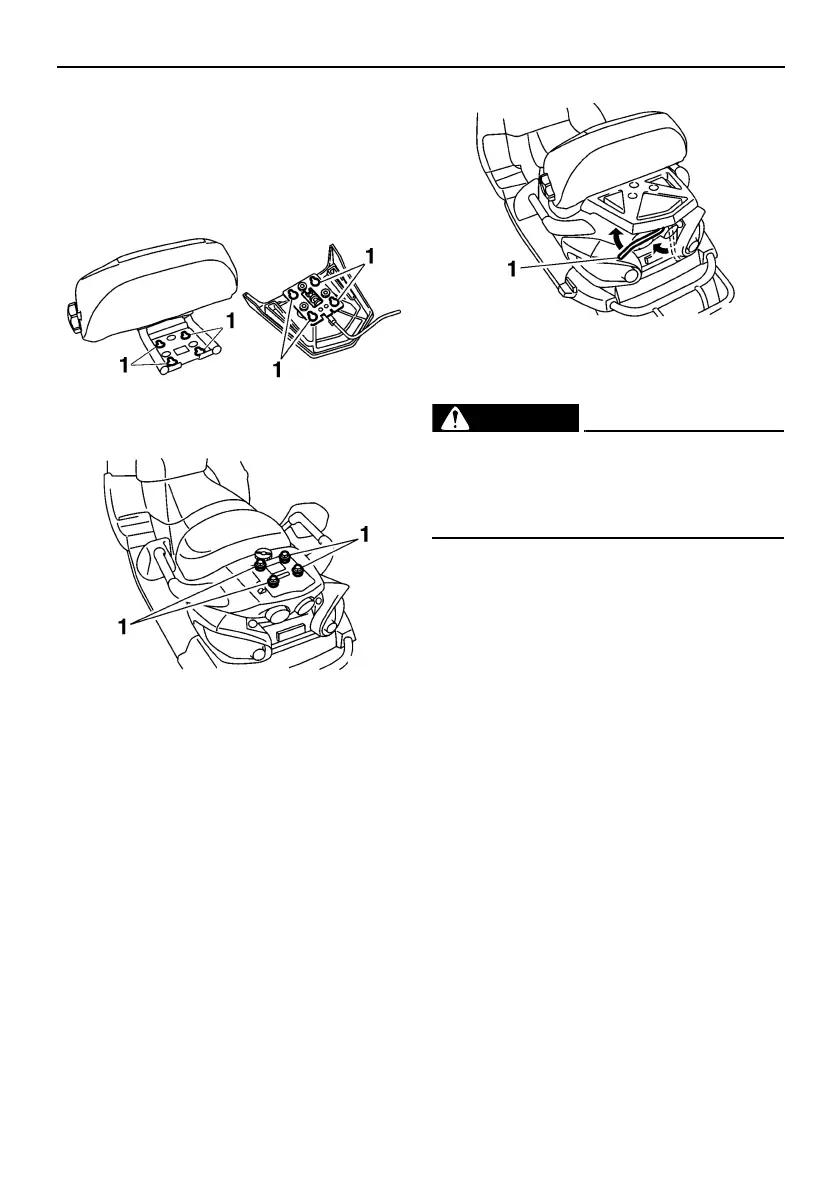

1. Hole
1. Bolt
1. Carrier lock lever
