Control functions
35

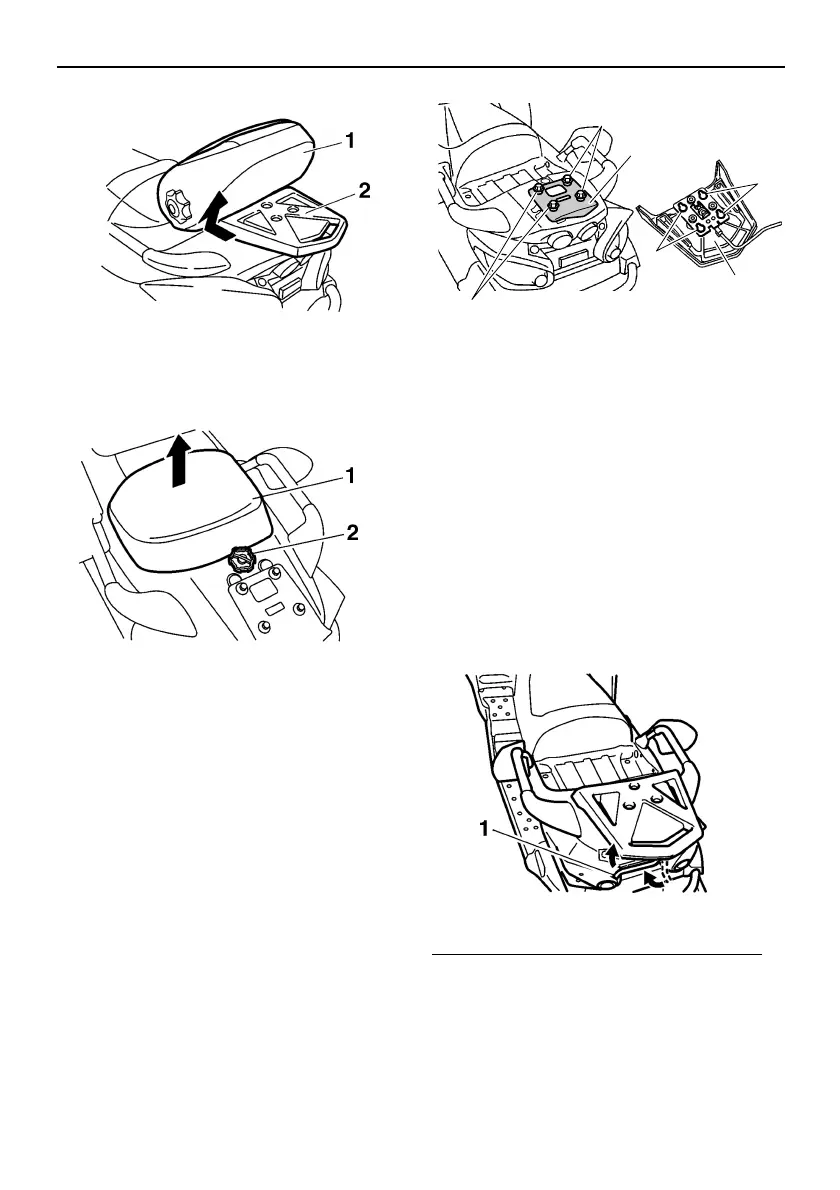

3. Remove the passenger seat lock knob,
and then remove the passenger seat.
4. Align the holes in the rear carrier with the
bolts on the carrier lock bracket, and then
place the rear carrier on the carrier lock
bracket.
5. Slide the rear carrier backward until it
stops.
6. Pull the carrier lock lever up to lock the
rear carrier in place. Then, place the lever
under the rear carrier and secure it with
the holder. NOTICE: When using the
rear storage area, do not load any car-
go that is too large for it. In addition,
cargo must not project from the edges
of the rear storage area.
[ECS00211]
To install the passenger seat and backrest
1. Remove the rear carrier. (Refer to steps
1–2 in the “To remove the passenger
seat and backrest” section.)
2. Install the passenger seat, and then in-
stall the passenger seat lock knob.
1. Backrest
2. Rear carrier
1. Passenger seat
2. Passenger seat lock knob
1. Hole
2. Rear carrier
3. Bolt
4. Carrier lock bracket
1. Carrier lock lever
1
2
1
3
4
3
