Periodic maintenance and adjustment
109

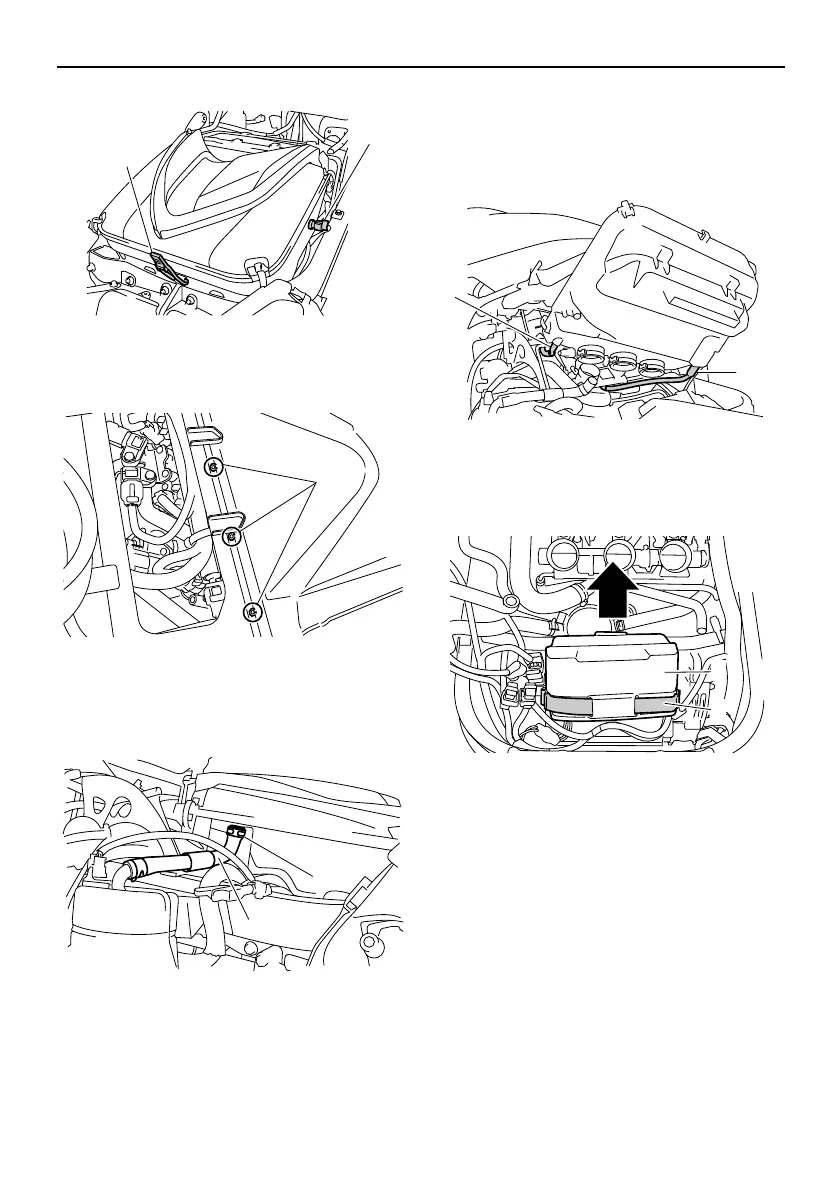

5. Loosen the joint clamp bolts.
6. Slide the oil tank breather hose clamp
away from the air filter case, and then dis-
connect the oil tank breather hose.
7. Lift up the air filter case, disconnect the
ISC (Idle Speed Control) unit inlet hose
and cylinder head breather hose from the
case, and then remove the case.
8. Unhook the battery band, and then re-
move the battery cover.
9. Disconnect the negative battery lead by
removing the bolt.
1. Air filter case fastener
2. Air temperature sensor coupler
1. Joint clamp bolt
1. Oil tank breather hose clamp
2. Oil tank breather hose
1. Cylinder head breather hose
2. ISC (Idle Speed Control) unit inlet hose
1. Battery cover
2. Battery band
