Periodic maintenance and adjustment
78
3. Remove the shroud and the right side
cover [RS90P / RS90PLT / RST90PGT
(see page 62 for the procedures)], or
open the shroud [RST90 (page 66 for the
procedures)].
4. Disconnect the oil level gauge coupler.
NOTICE: Disconnect the oil level
gauge coupler before removing the oil
filler cap, otherwise the cable could
twist and break.
[ECS00452]
RS90P / RS90PLT / RST90PGT
RST90

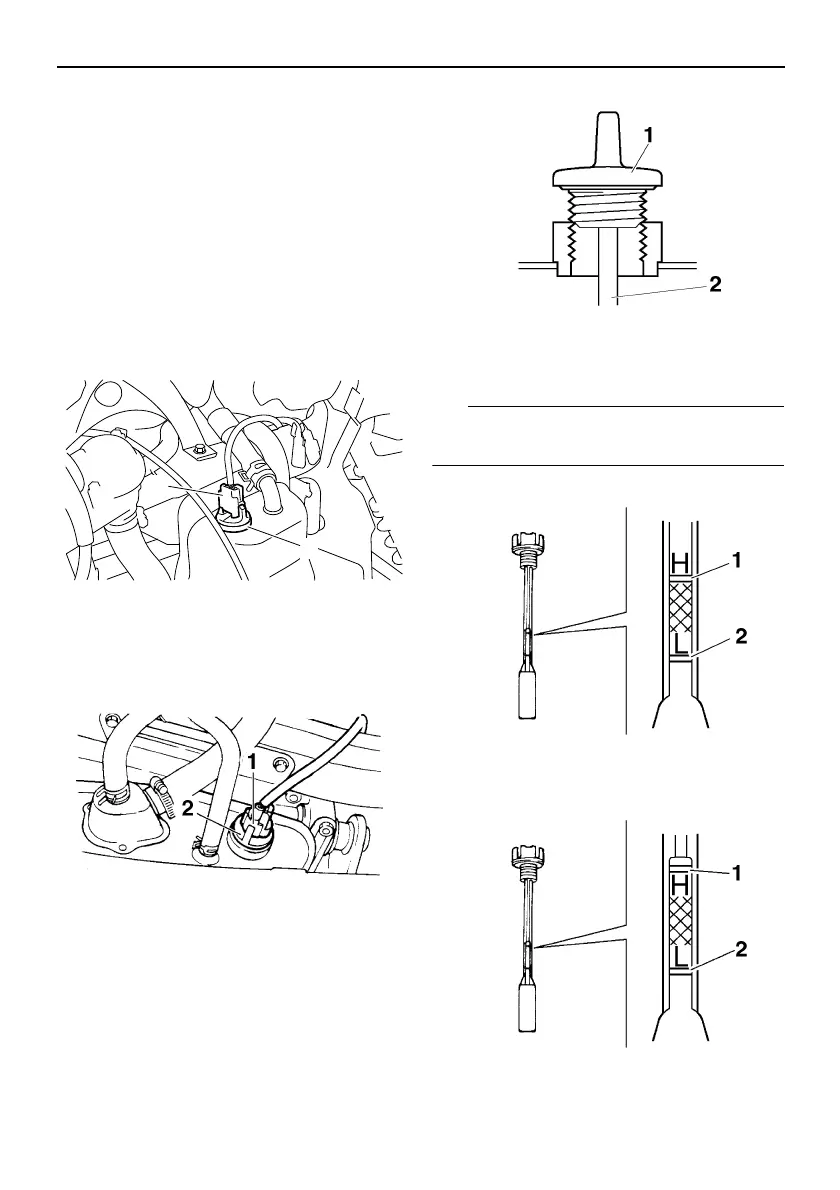

5. Remove the oil filler cap, wipe the dipstick
clean, insert it back into the oil filler hole
(without screwing it in), and then remove
it again to check the oil level.
The engine oil should be between the “H” and
“L” level marks on the dipstick.
RS90P / RS90PLT / RST90PGT
RST90
1. Oil level gauge coupler
2. Oil filler cap
1. Oil level gauge coupler
2. Oil filler cap
1. Oil filler cap
2. Dipstick
1. “H” level mark
2. “L” level mark
1. “H” level mark
2. “L” level mark
U8HV11E0.book Page 78 Monday, April 23, 2012 9:34 AM
