Periodic maintenance and adjustment
80
RS90P / RS90PLT / RST90PGT
RST90

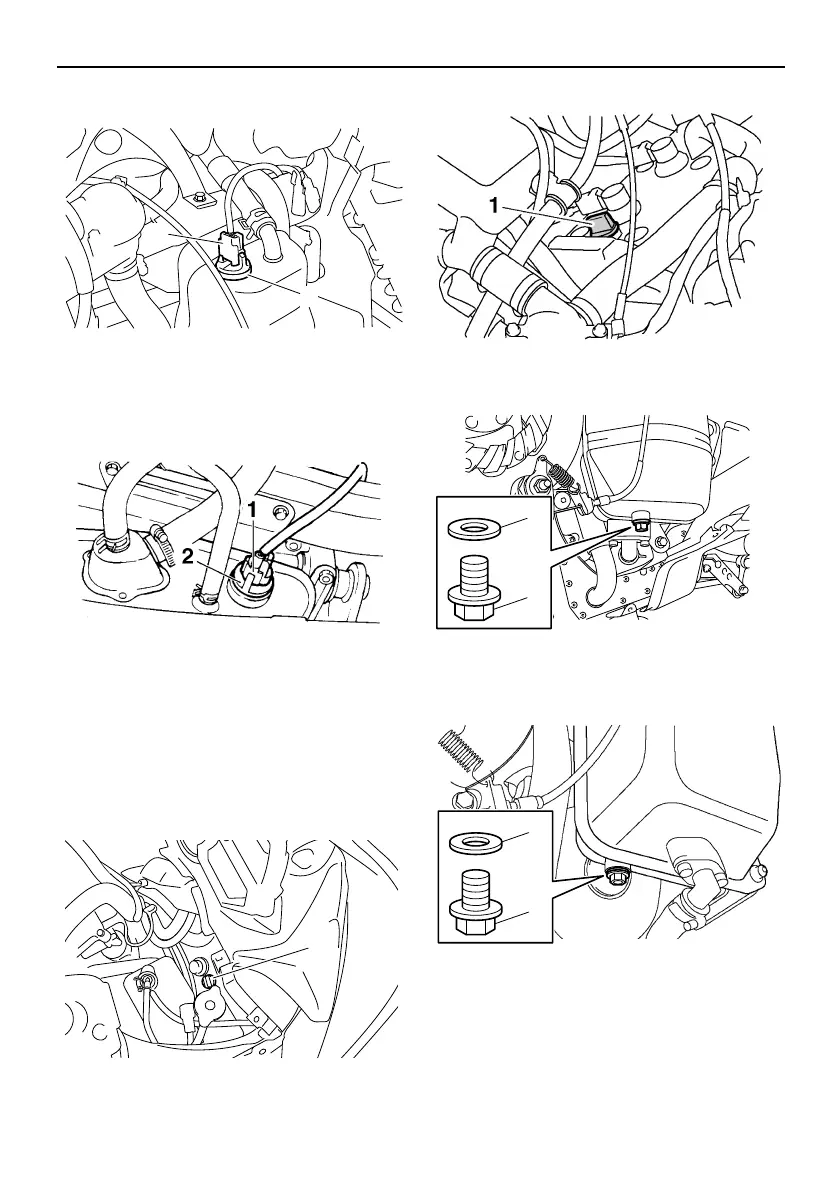

8. Remove the oil filler cap and the cylinder
head cap, and then remove the engine oil
drain bolt and its gasket to drain the oil
from the oil tank.
RS90P / RS90PLT / RST90PGT
RST90
RS90P / RS90PLT / RST90PGT
RST90
9. Place an oil pan under the engine to col-
lect the used oil.
10. Remove the engine oil drain bolt and its
gasket to drain the oil from the crank-
case.
1. Oil level gauge coupler
2. Oil filler cap
1. Oil level gauge coupler
2. Oil filler cap
1. Cylinder head cap
2
1
1
1. Cylinder head cap
1. Engine oil drain bolt (oil tank)
2. Gasket
1. Engine oil drain bolt (oil tank)
2. Gasket
1
2
1
2
