Yamaha RX-V3085 - Video Signal Flow; Video Conversion Table

En 181

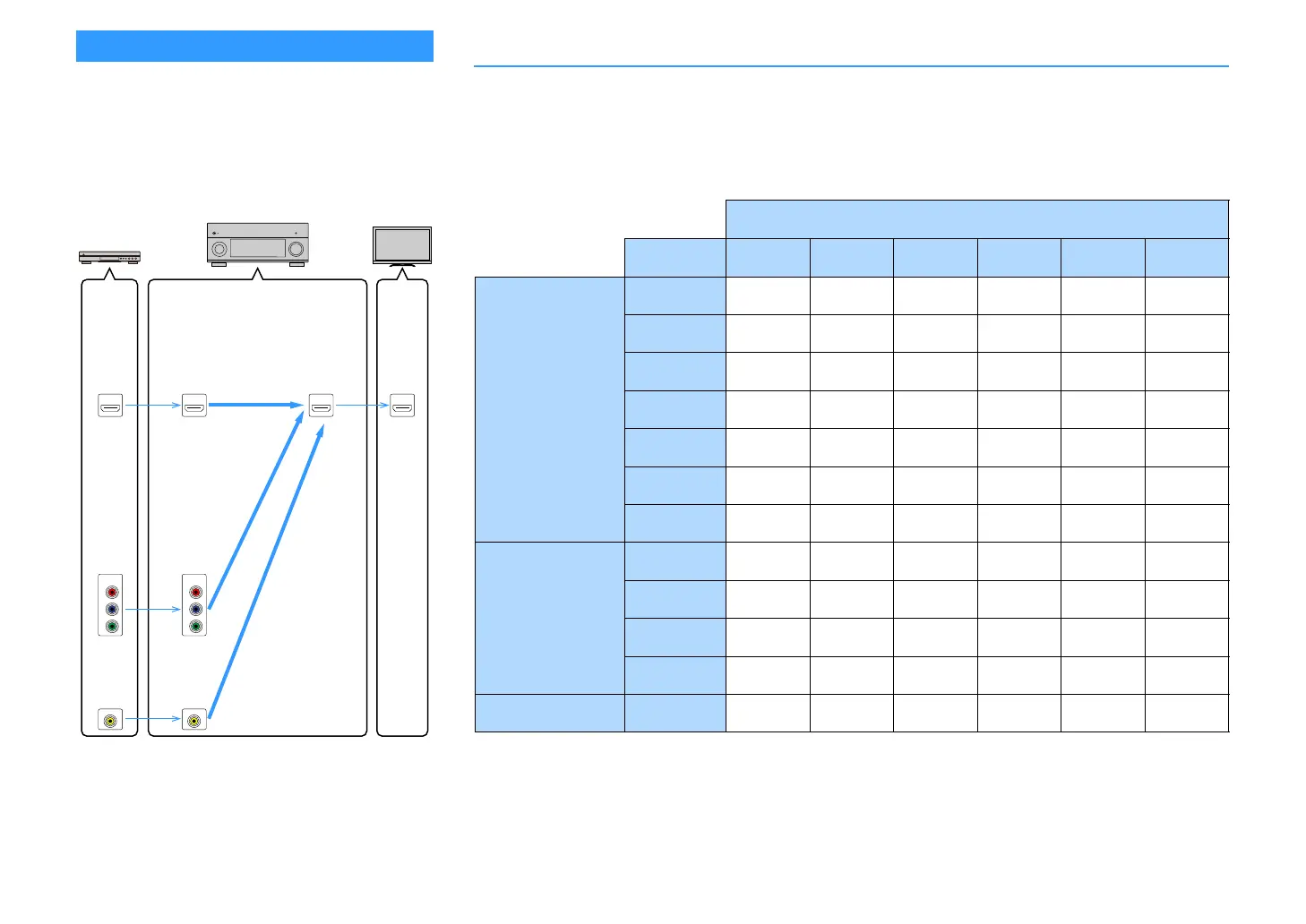

Video signal flow
Video signals input from a video device to the unit are output
to a TV as shown below.
HDMI HDMI HDMIHDMI
VIDEOVIDEO
PR
PB
Y
COMPONENT
VIDEO
PR
PB
Y
COMPONENT
VIDEO
Video device The unit TV
HDMI outHDMI in
COMPONENT
VIDEO in
VIDEO in
Video conversion table
X
• You can select the resolution and the aspect ratio applied to HDMI-output video processing in “Video Mode” (p.140) in the “Setup” menu.
• The unit does not convert 480-line and 576-line video signals interchangeably.
m: Available
* If “HDMI ZONE OUT Assign” is set to “Zone2”, conversion to 4K is possible only from 1080p. All other resolutions are pass-through.
HDMI out
Resolution
480i/576i
480p/576p 720p 1080i 1080p 4K
HDMI in
480i/576i
mm (*) m (*) m (*) m (*) m (*)
480p/576p
mm (*) m (*) m (*) m (*)
720p
mm (*) m (*) m (*)
1080i
m (*) mm (*) m (*)
1080p/50, 60 Hz
m (*) m (*) mm
1080p/24 Hz
mm
4K
m
COMPONENT VIDEO in
480i/576i
mm (*) m (*) m (*) m (*) m (*)
480p/576p
mm (*) m (*) m (*) m (*)
720p
mm (*) m (*) m (*)
1080i
m (*) mm (*) m (*)
VIDEO in
480i/576i
mm (*) m (*) m (*) m (*) m (*)
