g FRONT (XLR) jacks (RX-V3085 only)
Output front channel sounds through XLR balanced cables.
(Example)
Connecting front speakers via an external power amplifier

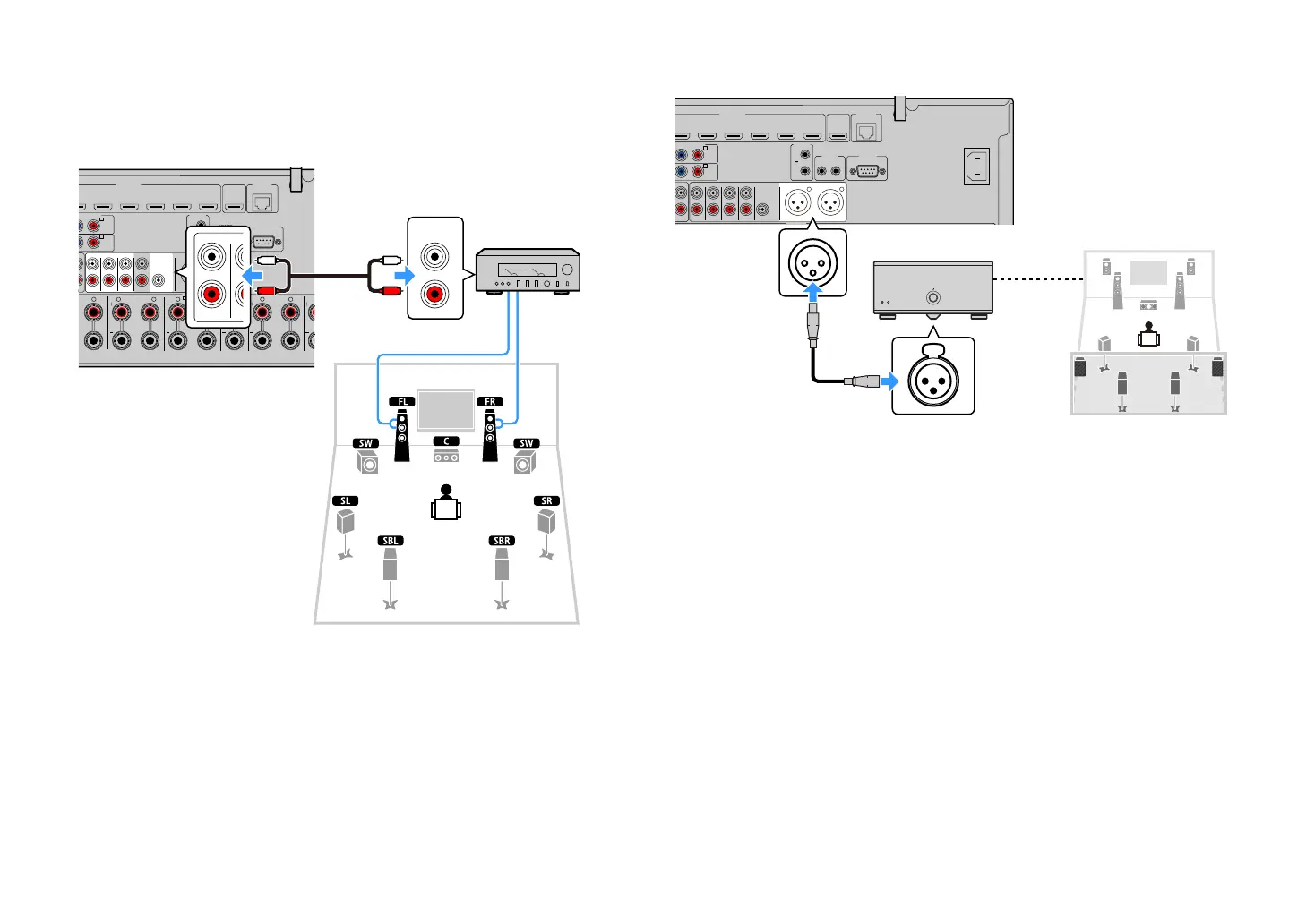

Making balanced connections
Use XLR balanced cables to connect a power amplifier to the FRONT (XLR) jacks on the unit.
About external power amplifiers
We recommend using power amplifiers that meet the following conditions.
• Hi-Fi amplifier equipped with XLR jacks (to enjoy a 2-channel stereo system with a balanced
connection)
• Multichannel amplifier equipped with unbalanced inputs (to enjoy multichannel CINEMA
DSP)
• With volume control bypass (or without volume control circuit)
• Output power: 100 W or more (6 to 8 Ω)
