CHAS
FRONT FORK
7-31
1
EAS00649
REMOVING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Stand the vehicle on a level surface.
w
Securely support the vehicle so that there is
no danger of it falling over.
NOTE:
Place the vehicle on a suitable stand so that the
front wheel is elevated.
2. Remove:
9
side cowlings (left and right)
9
front cowling
9
center panels
9
inner panel
Refer to “COVERS” in chapter 3.
3. Remove:
9
brake caliper assembly
9
brake hose clamp
Refer to “FRONTBRAKE”.
9
front wheel
Refer to “FRONTWHEELAND BRAKE
DISC”.
4. Remove:
9

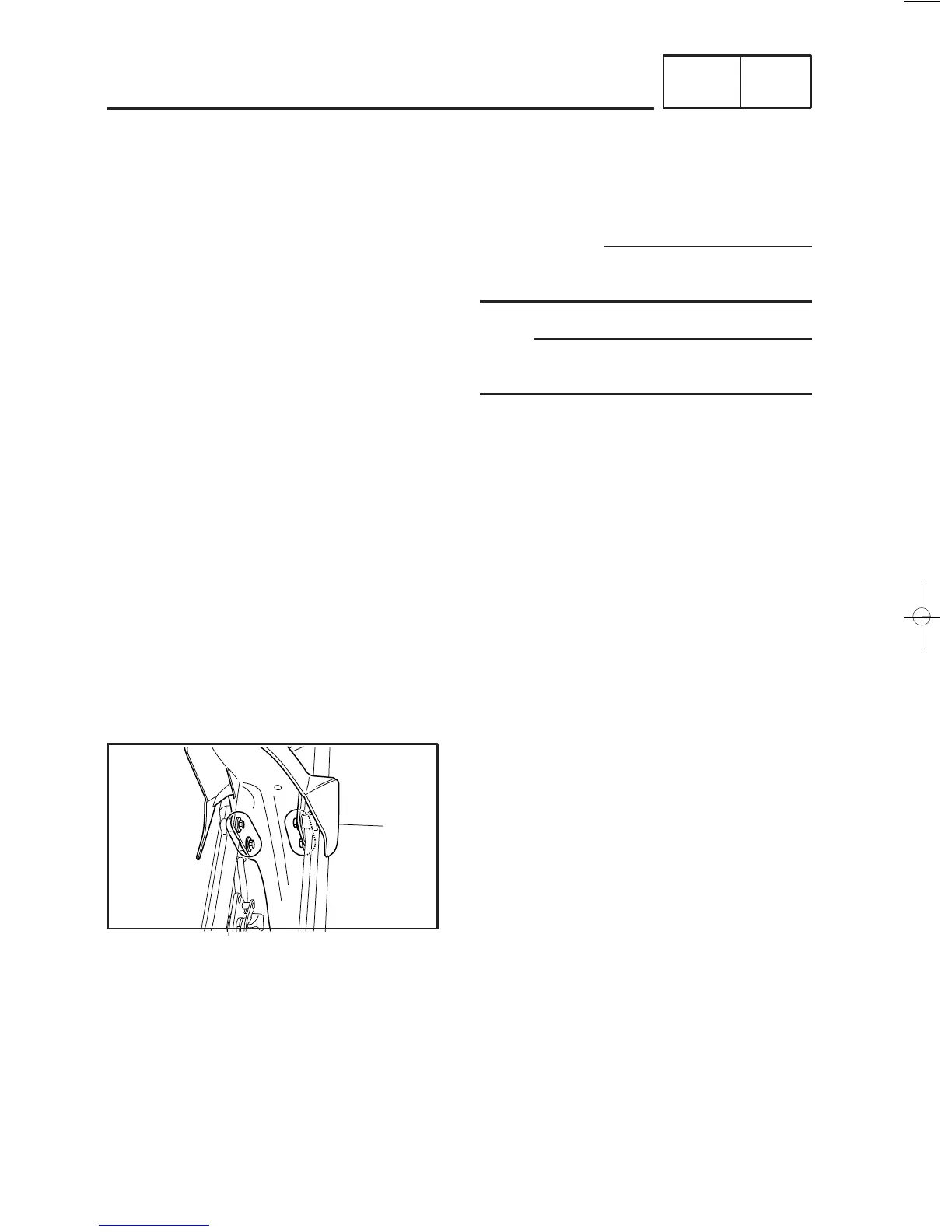

front fender bolts
9
washers
9
collars
9
front fender
1
To Next Page
