8. Install:
9
spark plug
9. Connect:
9
spark plug cap
10. Install:
9
side cowling (right)
Refer to “INSTALLING THE SIDE COWL-
INGS”.
1
b
a
CHK
ADJ
3-17
MEASURING THE COMPRESSION PRESSURE/
CHECKING THE ENGINE OILLEVEL
EAS00070

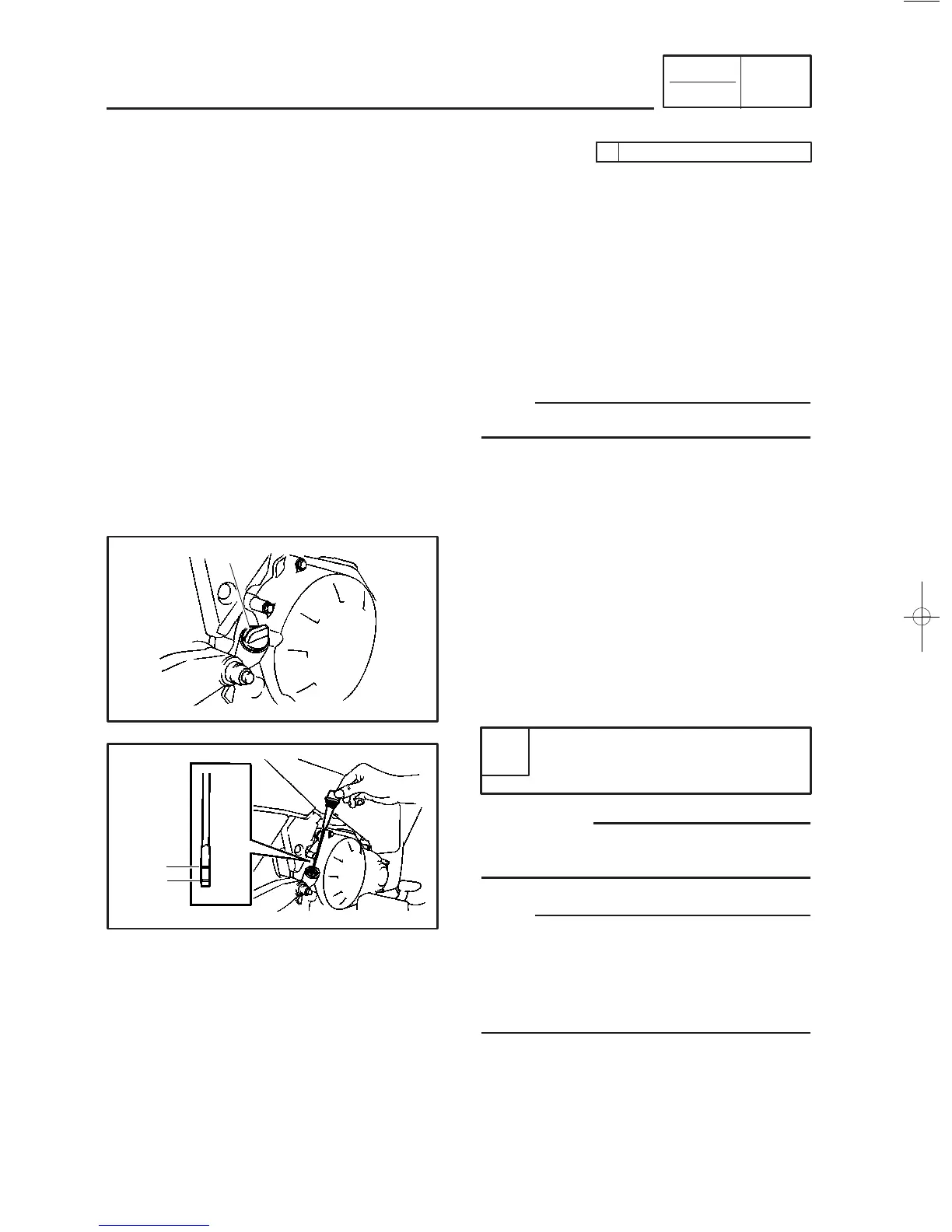

CHECKING THE ENGINE OILLEVEL
1. Stand the vehicle on a level surface.
NOTE:
Make sure the vehicle is upright.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Remove:
9
oil level plug
1
4. Check:
9
engine oil level
The engine oil level should be between the
minimum level mark
a
and maximum level
mark
b
.
Below the minimum level mark
→
Add the
recommended engine oil to the proper level.
cC
Do not allow foreign materials to enter the
crankcase.
NOTE:
9
Insert the oil level plug back into the oil filler
hole (without screwing it in), and then remove
it again to check the oil level.
9
Before checking the engine oil level, wait a few
minutes until the oil has settled.
5. Start the engine, warm it up for several min-
utes, and then turn it off.
6. Check the engine oil level again.
Recommended oil
SAE 20W40 type SF or SAE 20W50
motor oil
13 Nm (1.3 m•kg, 9.5 ft•lb)
