SPEC
2-22

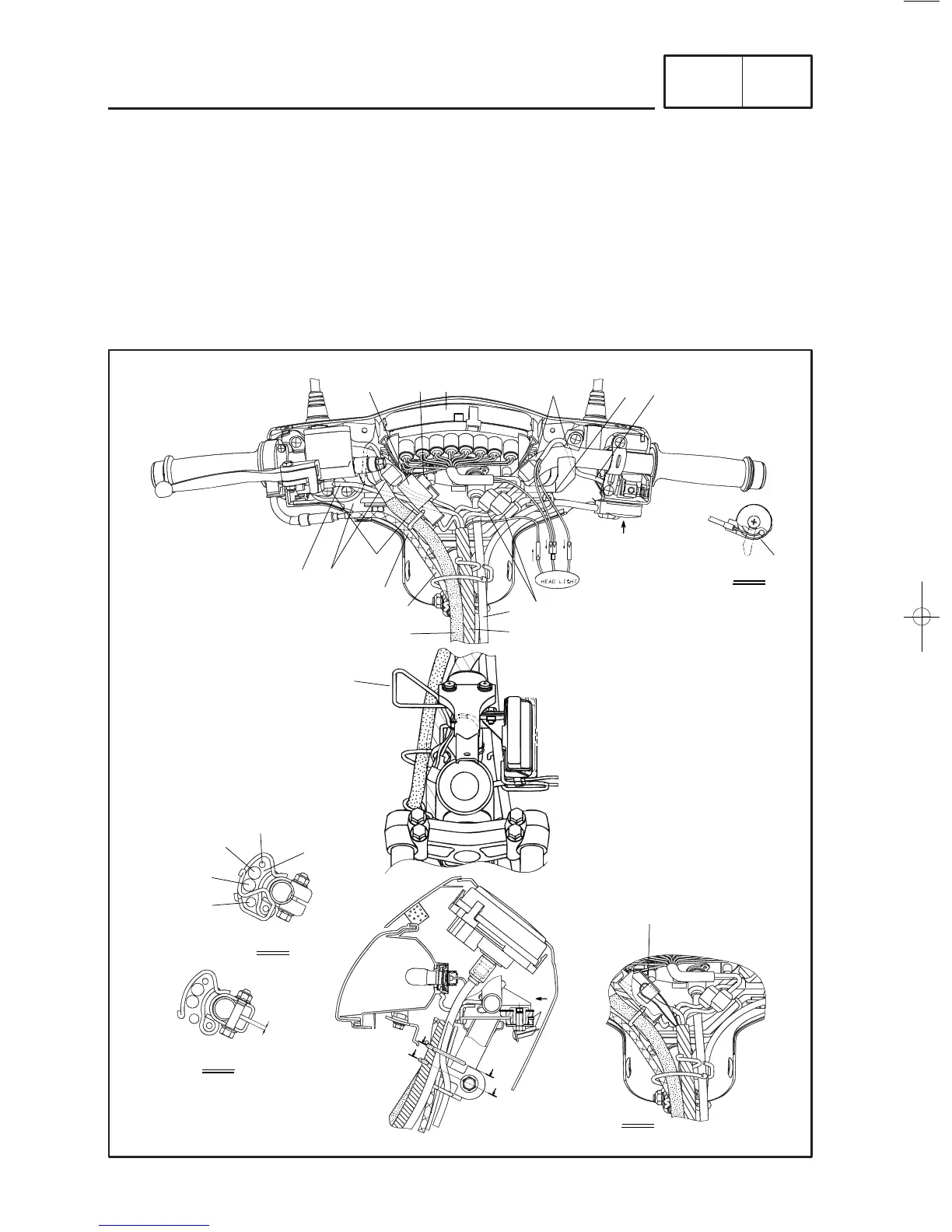

CABLE ROUTING
CABLE ROUTING
1
Turn signal light relay
2
Meter assembly
3
Left handlebar switch lead
4
Speedometer cable
5
Wireharness
6
Brake hose
7
Throttle cable
8
Front brake light switch lead
å
Install the turn signal relay
onto the bracket.
∫
Connect the left handlebar
switch lead coupler in front of
the handlebar left.
ç
Pass through the choke cable
into the wireharness.
∂
Connect the couplers in front
of the handlebar left side.
´
Do not pass the brake hose
into the bracket.
ƒ
Pass through into the wire
guide, follow the routing order.
Brake hose, throttle cable and
wireharness.
©
Hook the strap of the wirehar-
ness onto the bracket.
˙
Pass through the brake hose
into the wire guide on the han-
dlebar bracket.
å
∫
ç
∂
ƒ
©
˙
ˆ
∆
B
B
A-A
C
C
B-B
A
A
1
2
3
4
5
6
7
4
5
6
7
8
´
D
D
˚
