SPEC
2-23

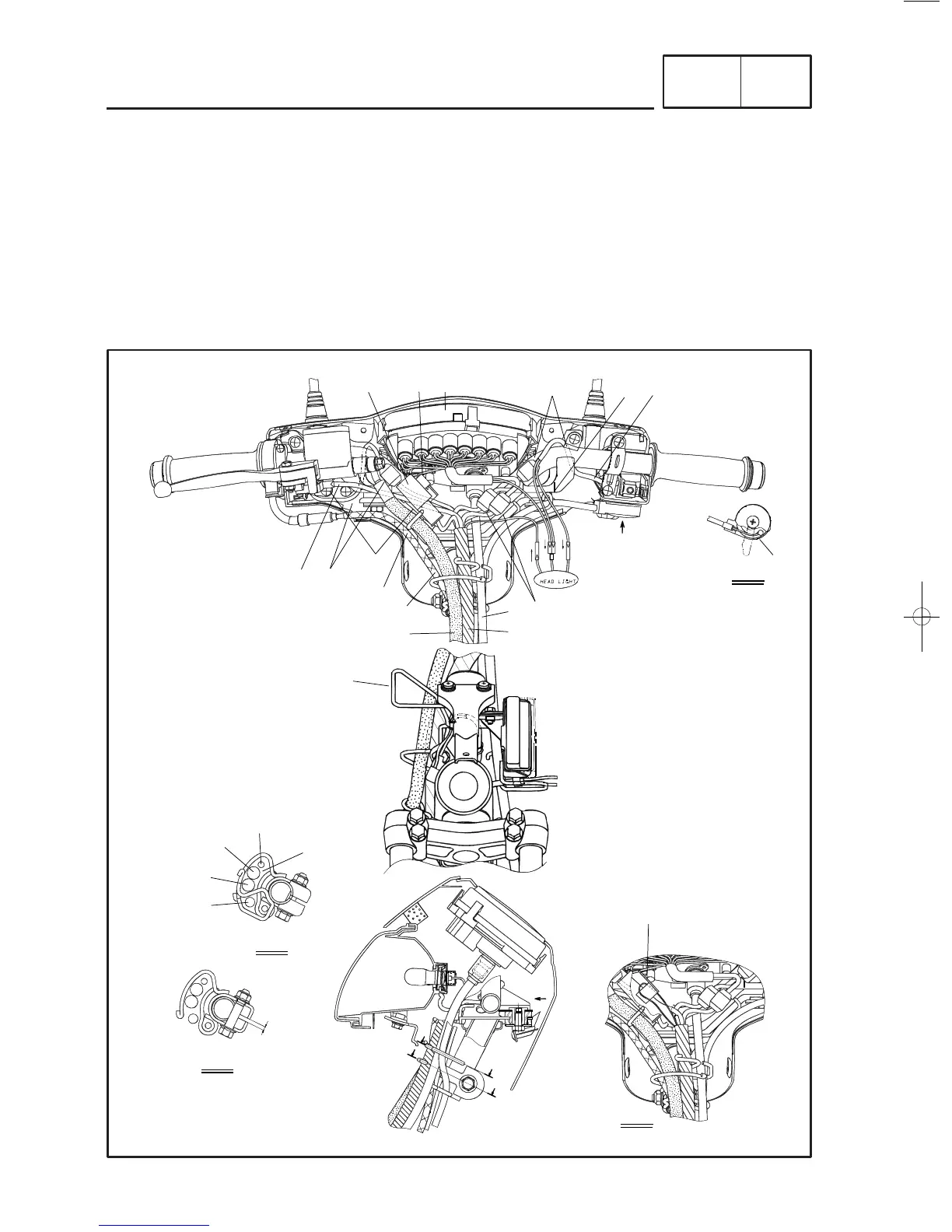

CABLE ROUTING
ˆ
Pass the wireharness behind
the turn signal relay and brake
hose, and then connect the
front brake switch.
∆
Route the right handlebar
switch lead behind the handle-
bar and connect the coupler
with handlebar right side, and
then set the turn signal light
relay.
˚
Take care not to bend the
choke cable when installing.
