3 En

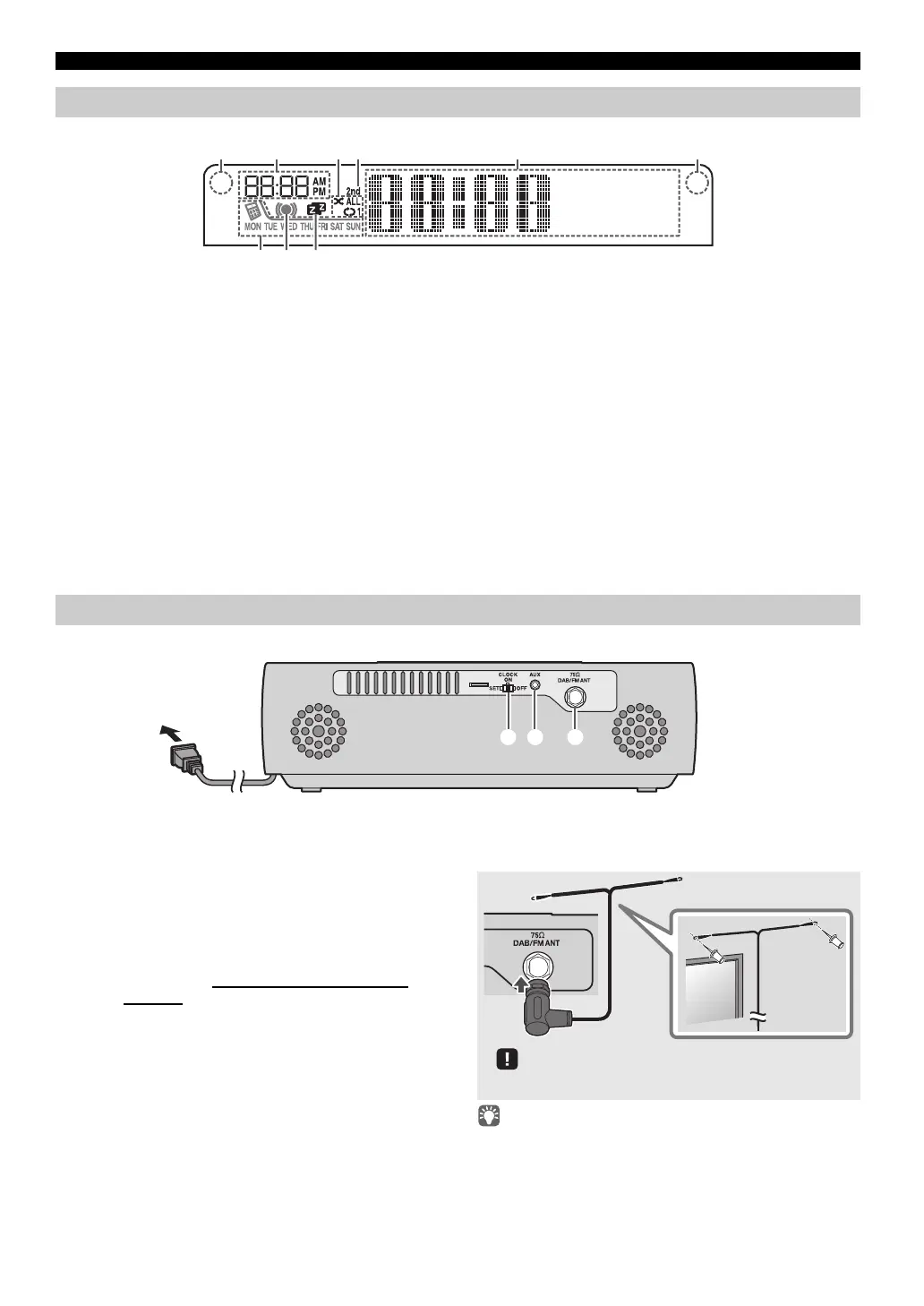

NAMES OF PARTS AND THEIR FUNCTIONS
English
a Illumination sensor
Detect ambient lighting. Do not cover this sensor.
b Alarm time
This indicates the alarm time.
c Repeat/shuffle indicator
Display the playback mode (☞ P. 6, 8).
d Secondary indicator
Turn on if a secondary station is playing when you listen
to a DAB station.
e Multi-function indicator
Display various information, including the clock time,
information about the currently-playing track, and the
frequency of the DAB/FM station.
f Remote control signal receiver
Make sure that this sensor is not obstructed (☞ P. 1).
g Sleep indicator
Turn on if the sleep timer has been set (☞ P. 20).
h Alarm indicator
Turn on if the alarm has been set (☞ P. 19).
i Weekly alarm indicator
Shows alarm information specified using the free “DTA
Controller” application for the iPod touch/iPhone/iPad
(☞ P. 19)
a CLOCK switch
Sets the clock and specifies whether the clock will be
displayed (☞ P. 5).
b AUX
Use a commercially available 3.5 mm mini-plug cable
to connect your external device here (☞ P. 16).
c DAB/FM antenna connector
Connect the DAB/FM antenna here.
• If reception is poor, try changing the height or direction of the
antenna, or move the unit to find a location that has better
reception.
• If you use a commercially available outdoor antenna instead of
the supplied antenna, reception may be better.
Front panel display
Rear panel
1 2 3
SET:
Set the clock.
ON:
Even when the system is off, the clock will be
displayed and the alarm function will be available.
OFF:
When the system is off, the clock will not be
displayed and the alarm function will not be
available.
Be sure to stretch out the antenna.
To Next Page
