2 En
[AM radio is available only for North America model.]
1 VOLUME – / +
Adjust the volume.
2 (Power)
Press to turn the unit on/off (standby).
There are two types of the standby state (+ P. 5).
3 Source buttons
Switch the audio source to be played.
If you press one of these while the unit is in standby
(except ECO standby), the unit will turn on and then
switch the audio source.
Press RADIO repeatedly to switch between FM/AM.
4 NFC mark
Allows easy pairing with NFC technology (+ P. 11).
5 Audio control buttons
Use these to operate the CD/USB device.
6 SNOOZE/SLEEP
Set the sleep timer or switch the alarm to snooze mode
(+ P. 18, 19).
7 CHARGING port
This port is for use to charge only.
Supplies 5V/1.0A to a portable device, such as a
smartphone, when it is connected with a USB cable
(+ P. 6).
When the USB device is not in use, put the USB cap in place to
protect the connector.
8 USB port
Connect and play your USB device here (+ P. 8).
When the USB device is not in use, put the USB cap in place to
protect the connector.
9 PRESET /
Select a radio station that you stored (+ P. 14, 15).
0 TUNING /
Tune the radio (+ P. 13, 14).
A (Headphone jack)
Connect headphones here.
B ALARM
Switch the alarm on/off (+ P. 18).
C SET
Set the alarm (+ P. 17).
D –/+
Select an item or value when setting the clock or the
alarm.
E EJECT
Eject the CD.
F Disc slot
Insert a CD here (+ P. 7).
G ENTER
Confirm a selected item or value.
H Front panel display
The clock and other information is displayed here
(+ P. 3).

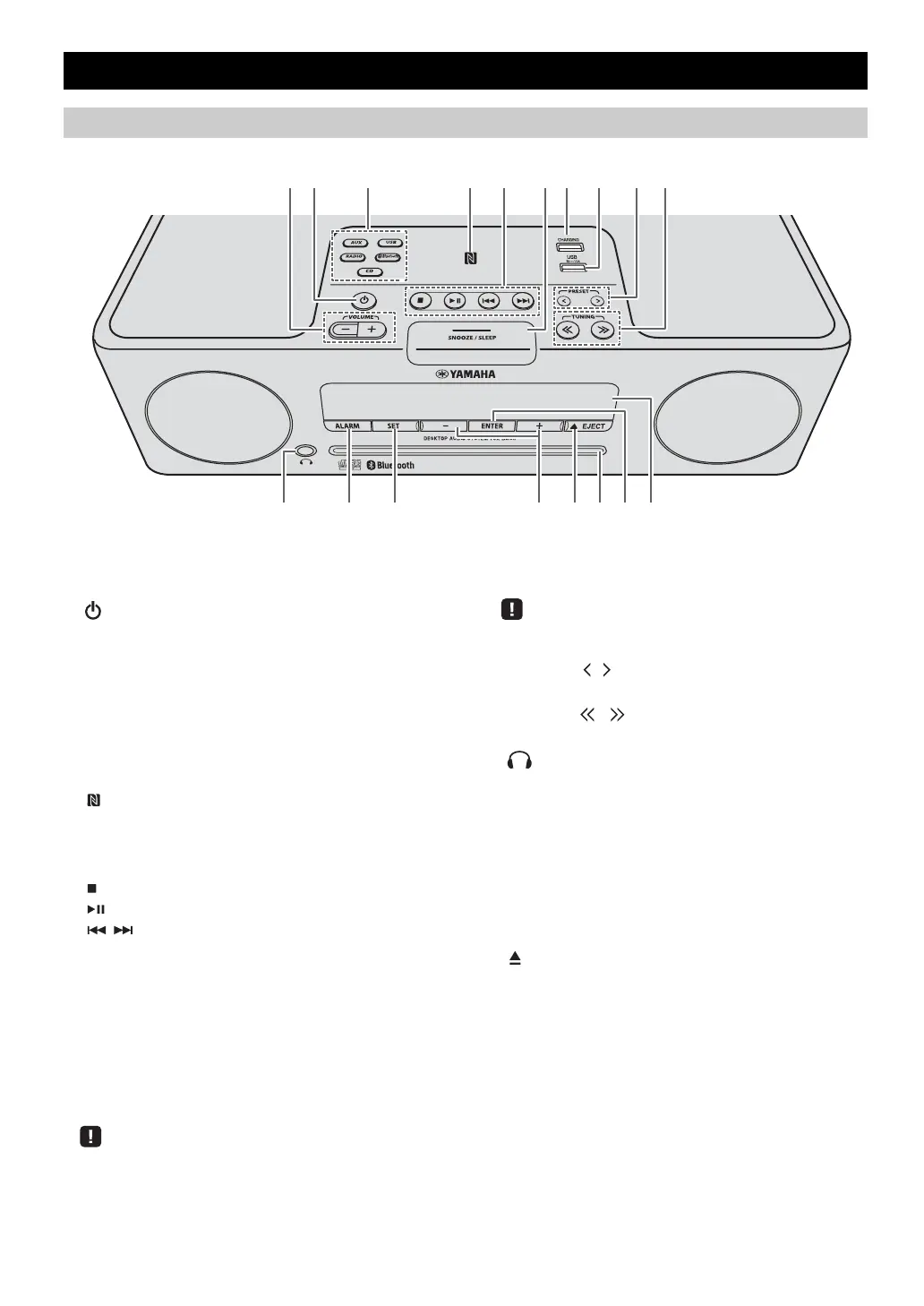

NAMES OF PARTS AND THEIR FUNCTIONS
Top panel / Front panel
A
3
7 9 054612
CB GD FE H
8
: Stop
: Play/Pause
/ :
Skip, Search backward/forward (press and hold
down)
