Yamaha TSX-B235 User Manual

3 En

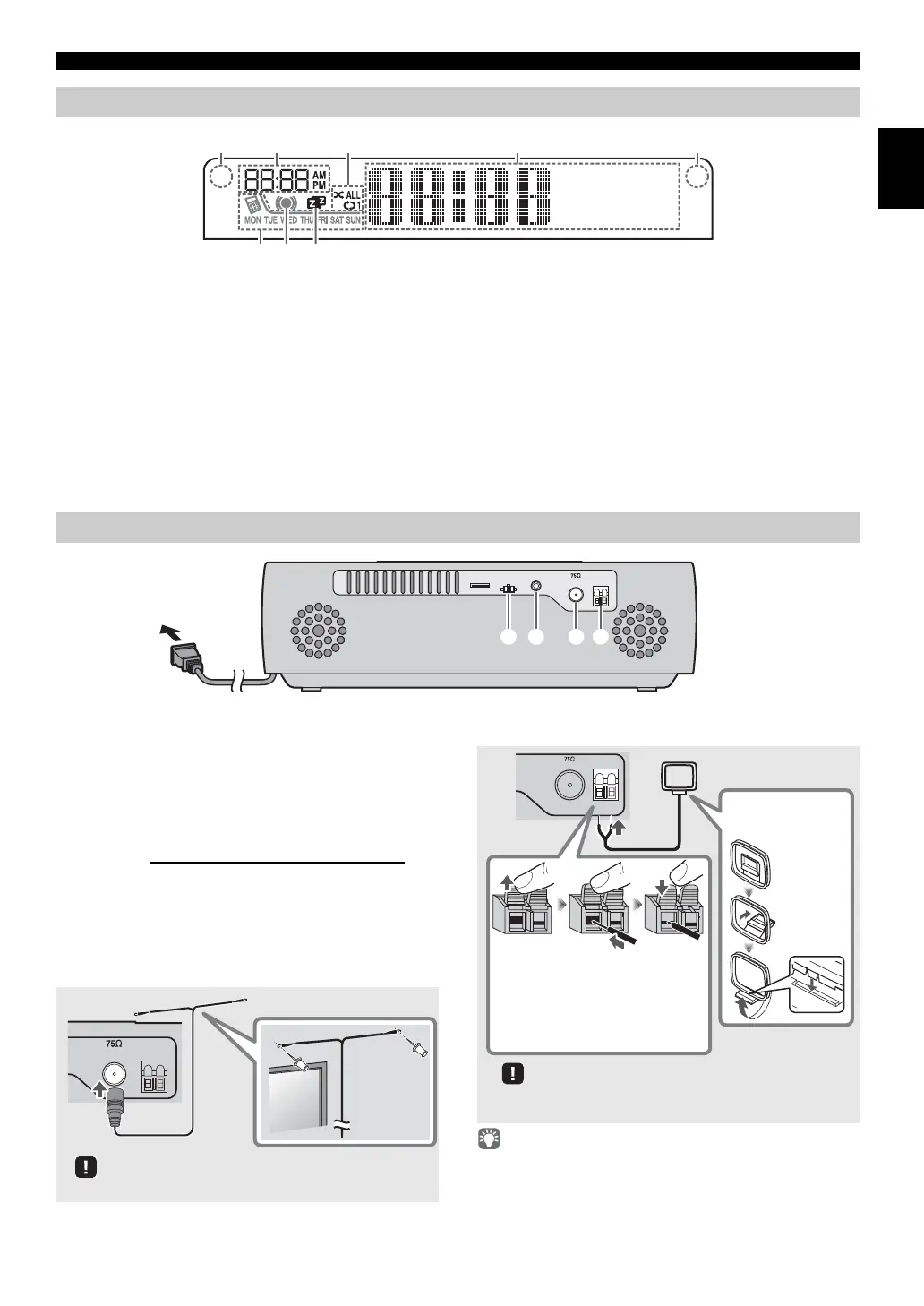

NAMES OF PARTS AND THEIR FUNCTIONS
English
1 Illumination sensor
Detect ambient lighting. Do not cover this sensor
(+ P. 6).
2 Alarm time
Indicates the alarm time (+ P. 17).
3 Repeat/shuffle indicator
Displays the playback mode (+ P. 9).
4 Multi-function indicator
Displays various information, including the clock time,
information about the currently-playing track, and the
frequency of the radio station.
5 Remote control signal receiver
Make sure that this sensor is not obstructed (+ P. 1).
6 Weekly alarm indicator
Shows alarm information specified using the free “DTA
CONTROLLER” application for a smartphone and
tablet computer (+ P. 19).
7 Alarm indicator
Turns on if the alarm has been set (+ P. 18).
8 Sleep indicator
Turns on if the sleep timer has been set (+ P. 19).
1 CLOCK switch
Sets the clock and specifies whether the clock will be
displayed (+ P. 5).
2 AUX
Use a commercially available 3.5 mm mini-plug cable
to connect your external device here (+ P. 9).
3 FM antenna connector
Connect the FM antenna here.
4 AM antenna connector (North America model only)
Connect the AM antenna here.
• If reception is poor, try changing the height or direction of the
antenna, or move the unit to find a location that has better
reception.
• If you use a commercially available outdoor antenna instead of
the supplied antenna, reception may be better.
Front panel display
~~~~~~
~~~~~~
54
6
21
7 8
3
Rear panel
AM ANT
FM ANT
ON
CLOCK AUX
SET OFF
1 2 3 4
SET:
Set the clock.
ON:
Even when the unit is off, the clock will be
displayed and the alarm function will be available.
OFF:
When the unit is off, the clock will not be displayed
and the alarm function will not be available
.
AM ANT
FM ANT
Be sure to stretch out the antenna.
AM ANTFM ANT
Assembling
AM antenna
If there is a digital device near the antenna, you may
experience interference.
The AM antenna cable is not
polarized.
When you've finished making
connections, pull gently on the cable
to ensure that the connection is solid.

Yamaha TSX-B235 Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	White
Disc loading type	Front
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	6 Ω
Bass reflex	-
Speaker type	1-way
RMS rated power	30 W
Number of speakers	2
Total Harmonic Distortion (THD)	10 %
Supported radio bands	AM, FM
Preset stations quantity	30
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Display type	LCD
Bluetooth profiles	A2DP
Audio formats supported	AAC, MP3, WMA
Bluetooth version	2.1+EDR
Power source	AC

Weight and Dimensions

Depth	234 mm
Width	370 mm
Height	110 mm
Weight	3900 g
