Yamaha VIKING 2021 - Parking Brake Lever Free Play Adjustment

9-37
9
EBU40380
Parking brake lever free play adjust-
ment
Periodically check the parking brake lever
free play and adjust it if necessary.
1. Shift the drive select lever into low gear
“L”.
2. Check the parking brake lever free play.
The maximum free play is equal to 3
clicks of the parking brake lever. If neces-
sary, adjust the free play as follows.
3. Release the parking brake lever.
4. Slide the rubber cover back on the park-
ing brake cable.
5. Loosen the locknut.
6. Turn the adjusting nut in direction (a) to
increase the free play or in direction (b) to
decrease the free play.
7. Tighten the locknut, and then slide the
rubber cover to its original position.

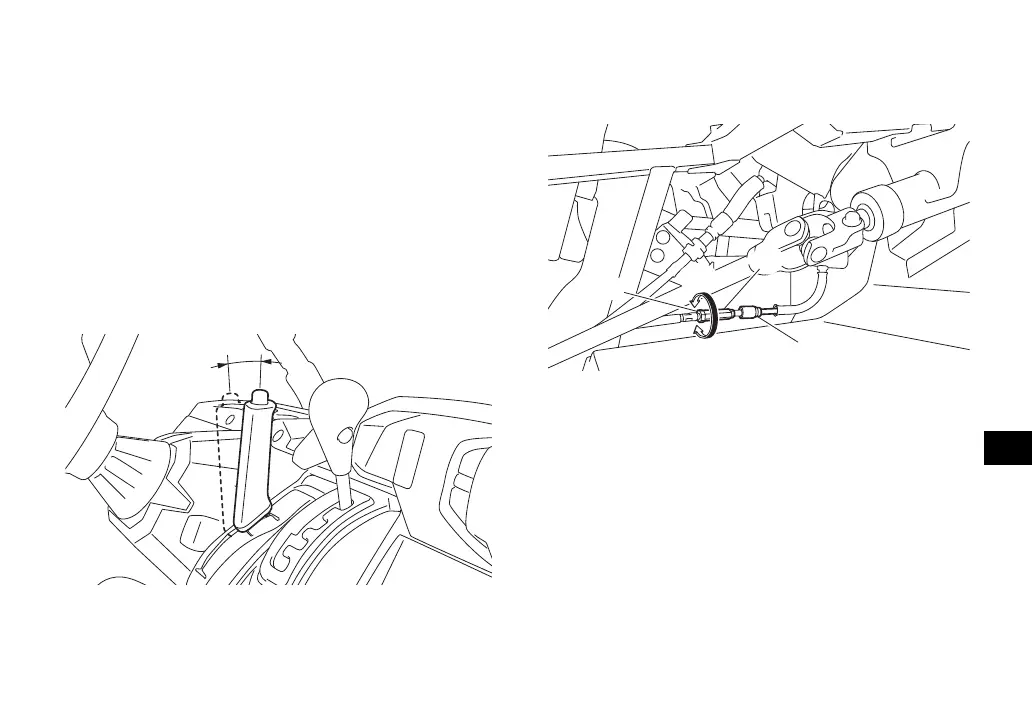

1. Parking brake lever free play
1
1. Rubber cover
2. Adjusting nut
3. Locknut
1
(a)
(b)
2
3
