Indicator lights and warning lights
EBU31270
Low-range indicator light “L”
This indicator light comes on when the drive
select lever is in the “L” position.
EBU31280
High-range indicator light “H”
This indicator light comes on when the drive
select lever is in the “H” position.

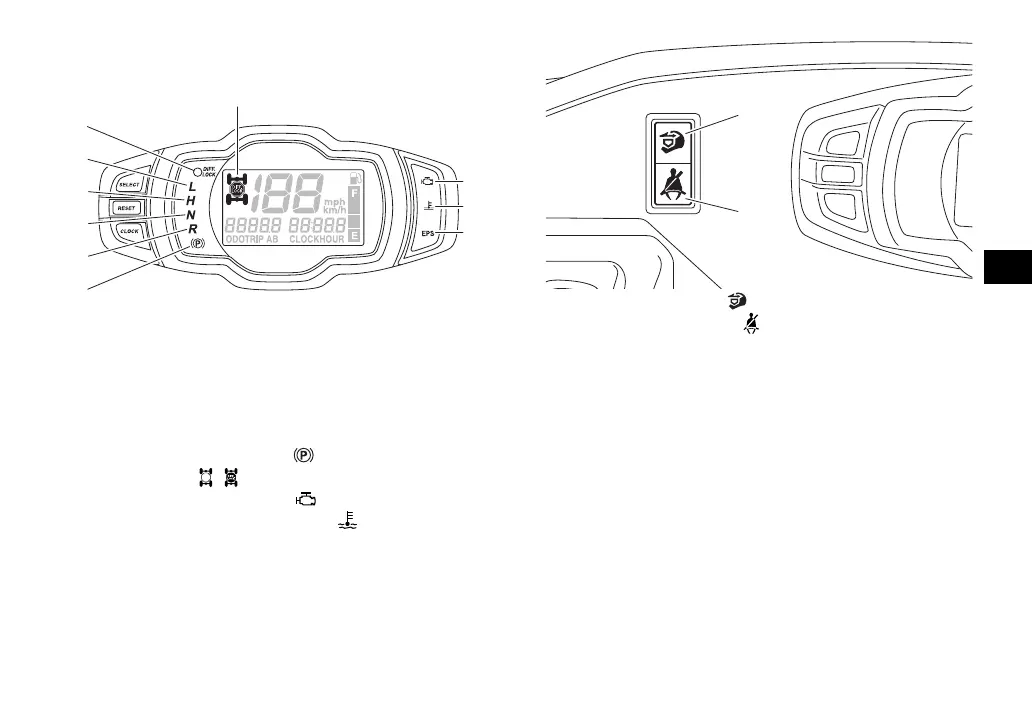

1. Differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Parking brake indicator light “ ”
7. Drivetrain icon “ / ”
8. Engine trouble warning light “ ”
9. Coolant temperature warning light “ ”
10.Electric Power Steering warning light “EPS”
3
5
6
4
2
1
7
8
10
9
1. Helmet reminder light “ ”
2. Seat belt reminder light “ ”
2
1
