9-48
9
EBU32665
Fuse replacement
The fuses are located under the hood. If an
electrical problem is suspected, check the
fuses and replace if necessary.

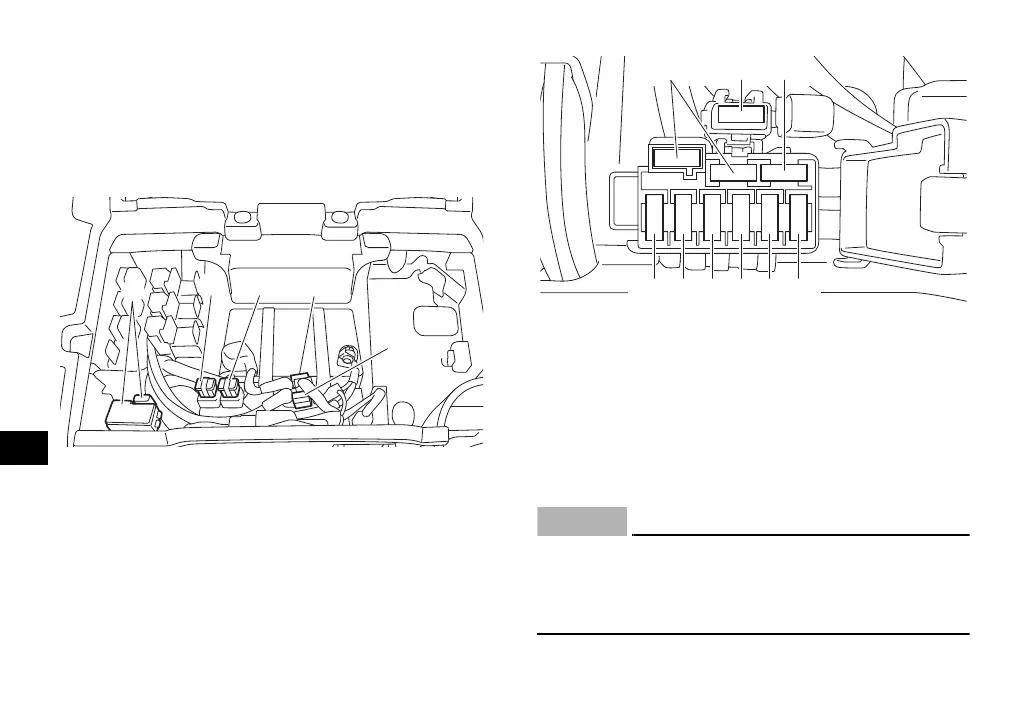

General layout
Fuse box
ECB00641
To prevent accidental short-circuiting,
turn off the main switch when checking or
replacing a fuse.
1. Fuse box
2. Main fuse
3. EPS fuse
4. Fuel injection system fuse
5. Fuel injection system spare fuse
1. Backup fuse “BACK UP” (for clock)
2. Ignition fuse “IGNITION”
3. Four-wheel-drive motor fuse “DIFF”
4. Auxiliary DC jack fuse “TERMINAL”
5. Signaling system fuse “SIGNAL”
6. Headlight fuse “HEAD”
7. Spare fuse
8. Radiator fan motor fuse “FAN”
