5-15
5
EBU31472
Seats

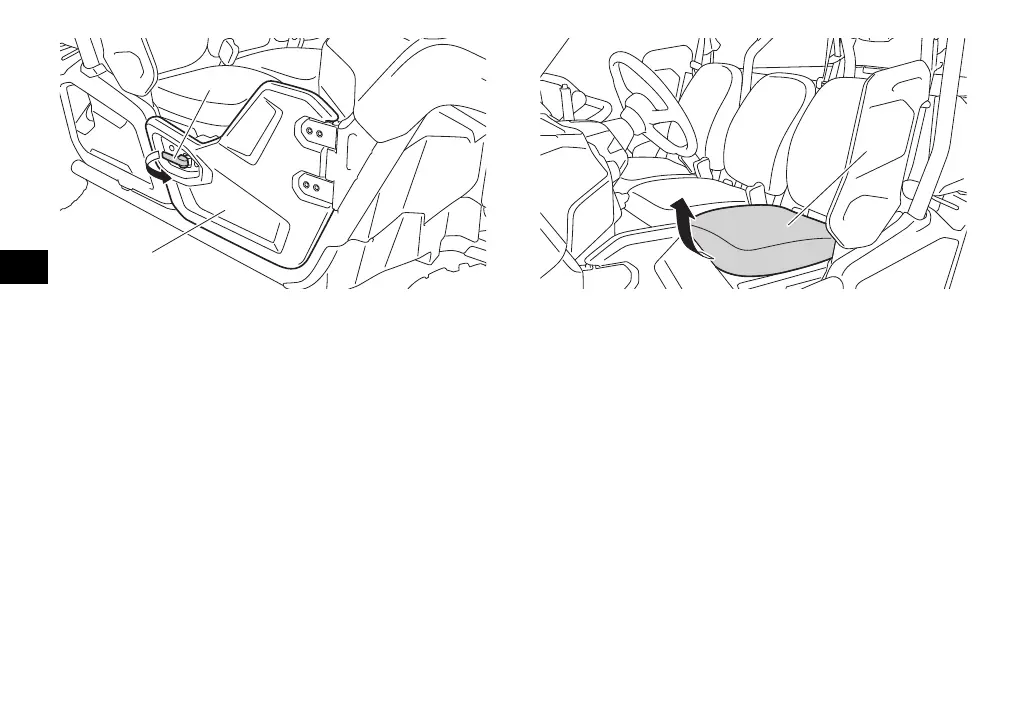

Certain models have under-seat storage
compartments. (See page 5-18.) To access
these compartments, remove the seat cush-
ion by pulling it up from the front.
To install a seat cushion, insert the hooks on
the rear of the seat cushion under the seat
frame, and then insert the projection on the
front of the cushion into the grommet by
pushing down. Make sure the seats are prop-
erly secured before starting off. WARNING! A
loose seat could cause the operator to
lose control, or cause the operator or pas-
sengers to fall.
[EWB03220]
1. Latch
2. Door
1. Seat cushion
