Yamaha WaveRunner VX 700 Service Manual

7-9
ELEC

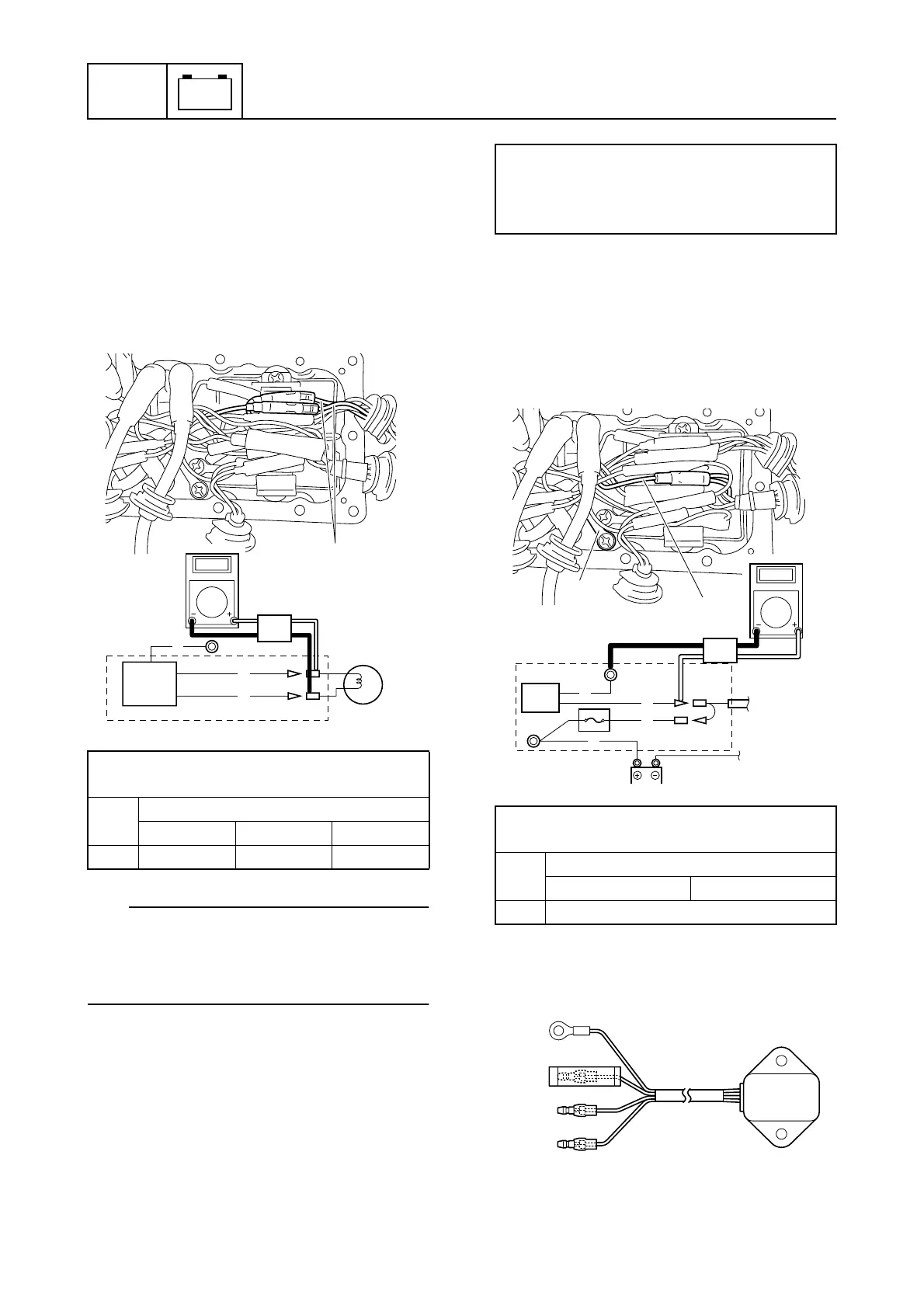

Electrical system
– +
Charging system
Lighting coil
Lighting coil output peak voltage
1. Disconnect the lighting coil connectors.
2. Measure the lighting coil output peak
voltage.
3. Measure the lighting coil resistance if
below specification.
TIP:
To crank the engine, connect the engine
shut-off cord to the engine shut-off switch,
and then push the engine start switch and
engine stop switch simultaneously.
Lighting coil resistance
1. Measure the lighting coil resistance.
2. Replace the lighting coil if out of specifi-
cation.
Rectifier regulator
Rectifier regulator output peak voltage
1. Disconnect the rectifier regulator connec-
tors.
2. Measure the rectifier regulator output
peak voltage.
3. Measure the rectifier regulator resistance
if below specification.
Lighting coil output peak voltage:
Green (G) – Green (G)
r/min
Unloaded
Cranking 1500 3500
V 8.7 25.6 47.3
G
B
G
G
Lighting coil resistance at 20 °C (68 °F)
(reference data):
Green (G) – Green (G)
1.143–1.397 Ω
Rectifier regulator output peak voltage:
Red (R) – Black (B)
r/min
Unloaded
1500 3500
V 13.0
B
R
R
R
R
B
B
R
G1
G2
