A

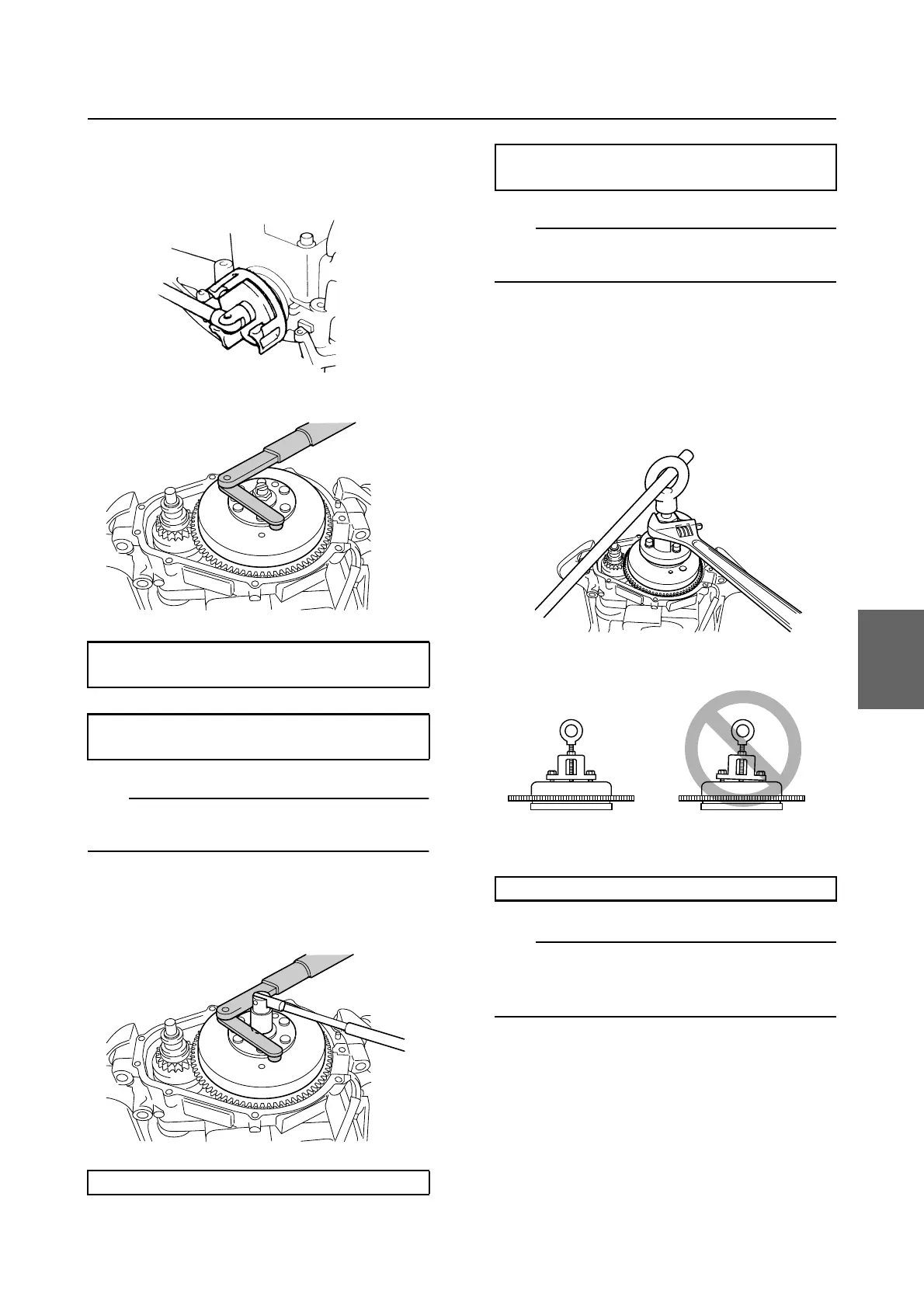

Drive coupling removal and
installation
1. Remove the drive coupling.
TIP:
Install the drive coupling with the same spe-
cial service tools that were used for removal.
Flywheel magneto removal and
installation
1. Remove the flywheel magneto bolt.
TIP:
Install the bolt with the same special service
tool that was used for removal.
2. Remove the flywheel magneto. NOTICE:
To prevent damage to the engine or
special service tools, screw in the fly-
wheel puller set bolts evenly and com-
pletely so that the puller plate is
parallel to the flywheel magneto.
TIP:
When installing the flywheel magneto,
degrease the flywheel magneto where it is
coupled to the crankshaft.
Drive coupling check
1. Check the drive coupling. Replace if
damaged or worn.
Flywheel magneto check
1. Check the ring gear. Replace if damaged
or worn.
Coupler wrench: 90890-06425
Flywheel holder: 90890-06522
Drive coupling:
36 N·m (3.6 kgf·m, 26.6 ft·lb)
Flywheel holder: 90890-06522
Flywheel magneto bolt:
74 N·m (7.4 kgf·m, 54.6 ft·lb)
Flywheel puller: 90890-06521
Starter clutch assy.
