Yamaha WaveRunner VX 700 Service Manual

7-15
ELEC
Electrical system
– +

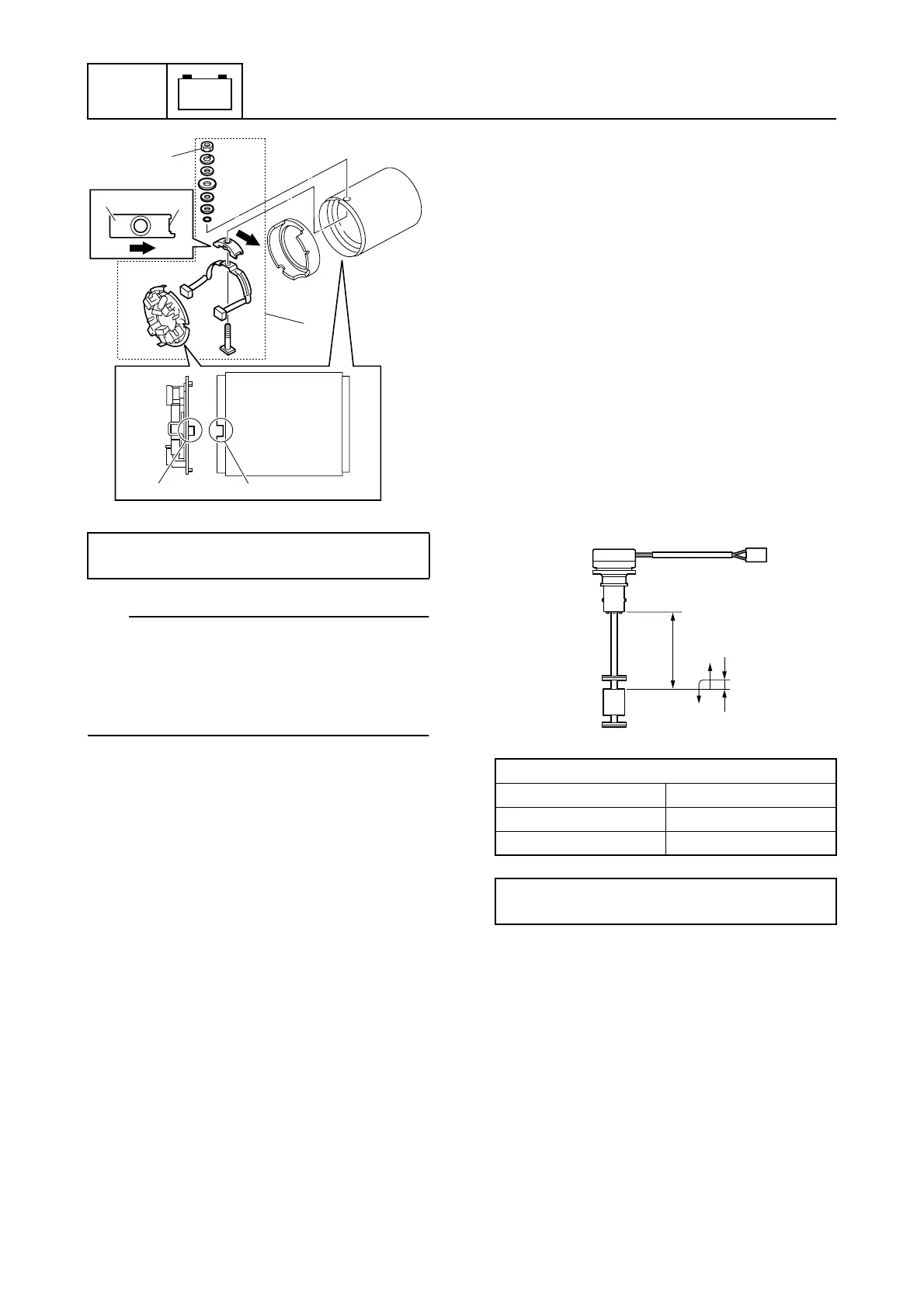

TIP:
• Install the spacer 2 so that the notch b in
the spacer is facing in the direction of the
arrow.
• Align the protrusion c on the brush holder
with the notch d on the starter motor yoke.
Indication system
Multifunction meter
Multifunction meter appearance
1. Check the multifunction meter external
appearance. Replace the multifunction
meter if there is cracked meter hosing,
fogged meter, or water intrusion.
Tachometer operation
1. Check the tachometer display.
2. Measure the lighting coil output peak
voltage if it does not operate correctly.
See “Lighting coil” (7-9).
3. Measure the CDI unit resistance. See
“CDI unit” (7-6).
4. Check the wiring harness for continuity.
5. Replace or repair the wiring harness if
there is no continuity.
6. Replace the multifunction meter if there
is continuity.
Hour meter operation
1. Check the hour meter display.
2. Replace the multifunction meter if it does
not operate correctly.
Oil level sensor and oil level warning
indicator
1. Check the oil level sensor if oil level
warning indicator does not come on.
2. Replace the oil level sensor if out of
specification.
3. Replace the multifunction meter if the oil
level sensor continuity is within specifica-
tion.
Fuel level meter display and fuel
level warning indicator
1. Measure the fuel level sensor resistance
if fuel level meter does not display.
2. Measure the fuel level sensor resistance
if fuel level warning indicator does not
come on.
Starter motor terminal nut a:
5 N·m (0.5 kgf·m, 3.7 ft·lb)
c
1
a
b
d
2
Oil level sensor continuity:
Float position Blue (L)- Black (B)
OFF No continuity
ON Continuity
Float length a:
37.0–41.0 mm (1.46–1.61 in)
ON
OFF
Max. 2.5 mm
(0.10 in)
a
