Yamaha WaveRunner VX 700 Service Manual

4-4
1
2
3
4
5
6
7
8
9
A

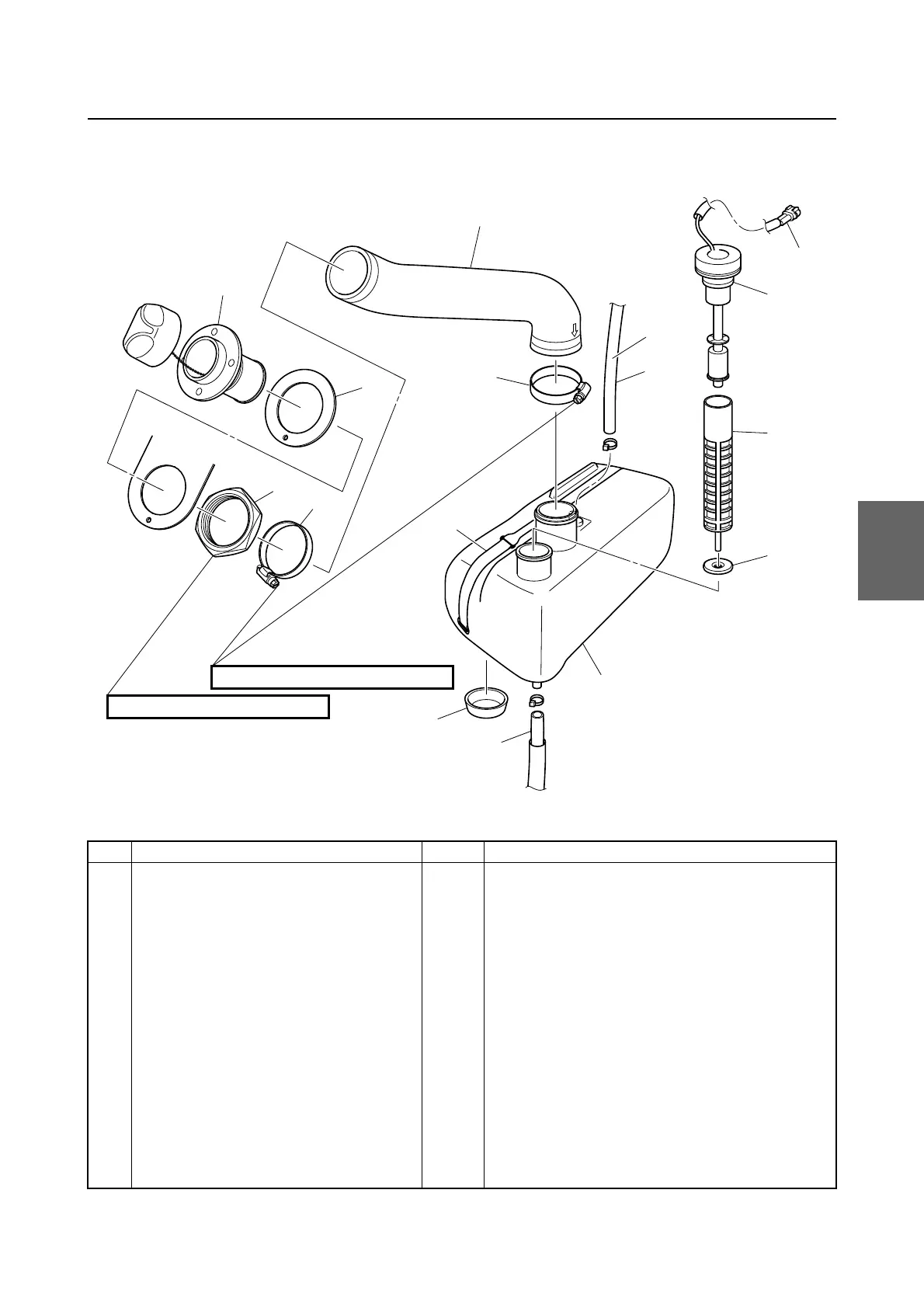

Oil tank
No. Part name Q’ty Remarks
1 Clamp 1
2Nut 1
3 Oil filler neck 1
4 Rubber seal 1
5 Tank belt 1
6 Oil level sensor coupler 1
7 Oil level sensor 1
8 Oil filter 1
9Damper 1
10 Clamp 1
11 Oil filler hose 1
12 Breather hose 1
13 Oil hose 1
14 Oil tank 1
15 Damper 1
2
1
3
4
11
12
14
13
15
10
6
7
8
9
3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
5
(VENT)
6 N • m (0.6 kgf • m, 4.4 ft • Ib)
Choke cable / Oil tank
