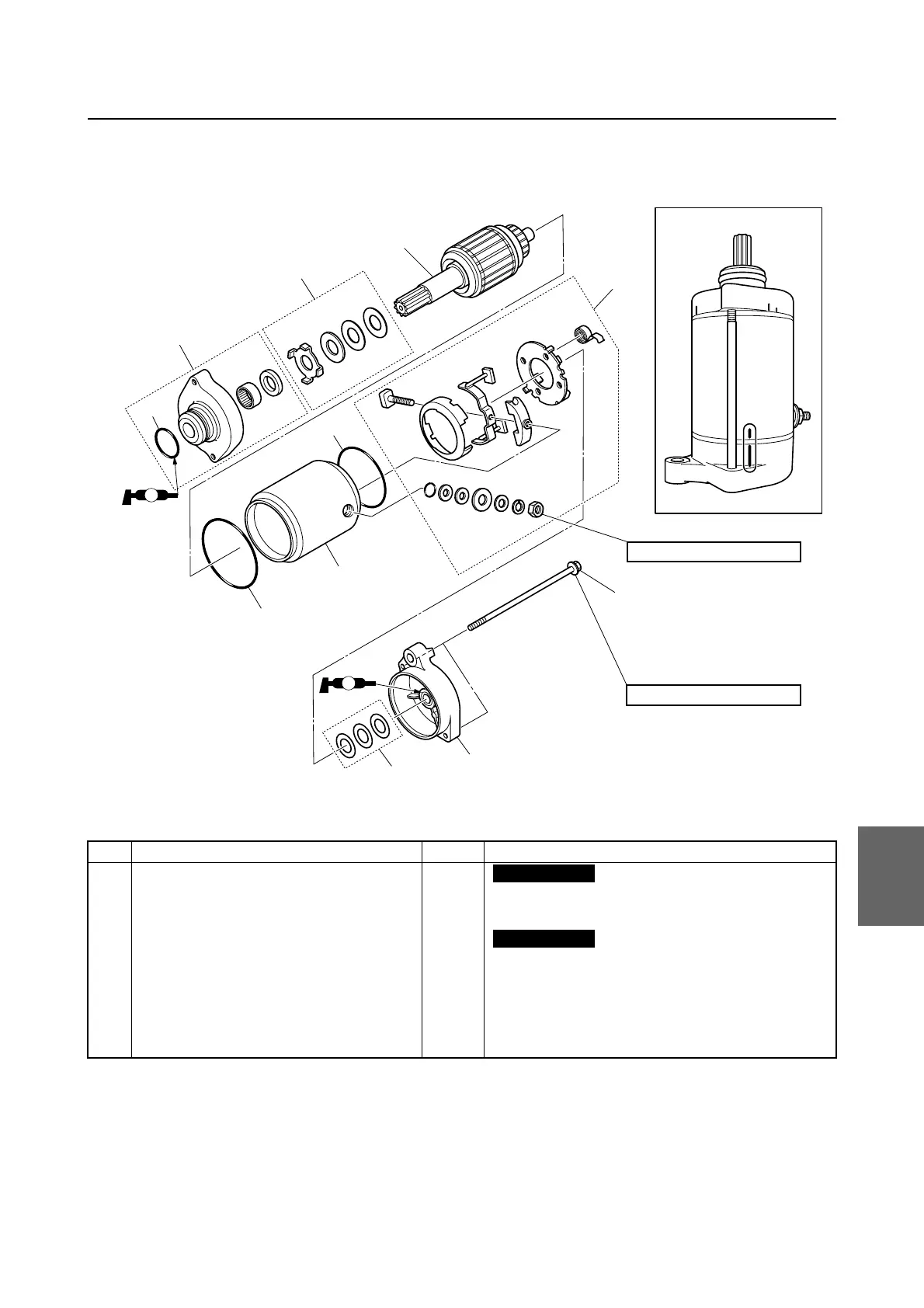

Starter motor
No. Part name Q’ty Remarks
1O-ring 1
Not reusable
2Bolt 2 M5 × 114 mm
3 Front cover assy. 1
4O-ring 2
Not reusable
5 Washer set 1
6 Rear cover assy. 1
7 Armature 1
8 Brush holder assy. 1
9 Starter motor yoke 1
6 N
·
m (0.6 kgf
·
m, 4.4 ft
·
Ib)
AA
AA
6
5
2
9
4
4
7
8
5
3
1
5 N
·
m (0.5 kgf
·
m, 3.7 ft
·
Ib)
Starting system / Starter motor
