Yamaha WaveRunner VX 700 Service Manual

4-8
1
2
3
4
5
6
7
8
9
A

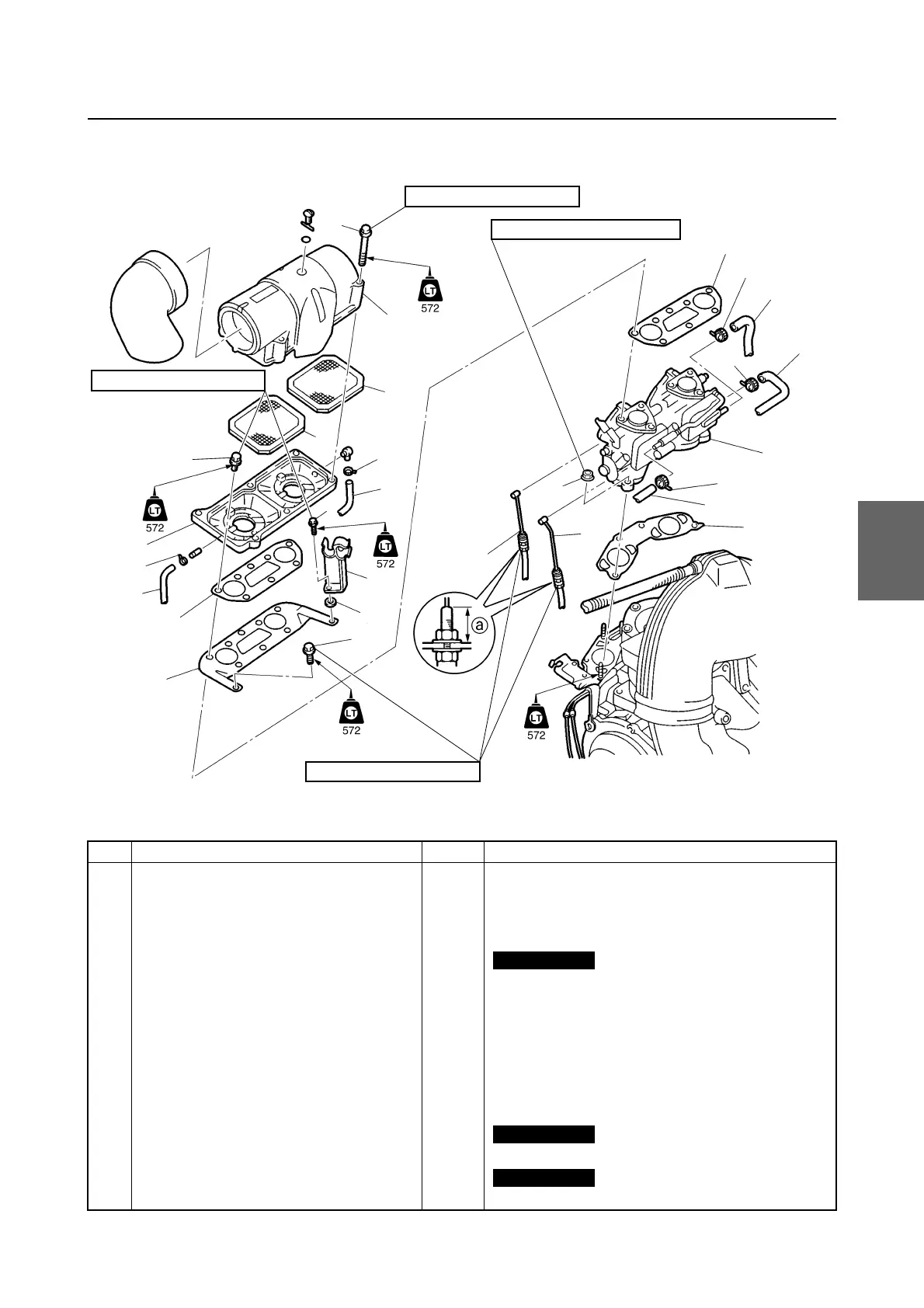

Carburetor unit
No. Part name Q’ty Remarks
Fuel cock knob Turn the fuel cock knob to “OFF”.
1Bolt 6 M5 × 56 mm
2 Cover 1
3 Flame arrester 2
4Band 2
Not reusable
5 Oil delivery hose 2 2
6Bolt 1 M6 × 14 mm
7Bolt 1 M6 × 12 mm
8 Holder 1
9 Washer 1
10 Bolt 6 M6 × 20 mm
11 Flame arrester holder 1
12 Gasket 1
Not reusable
13 Plate 1
14 Gasket 1
Not reusable
15 Choke cable 1 a: 13–15 mm (0.51–0.59 in)
1 N
·
m (0.1 kgf
·
m, 0.7 ft
·
Ib)
7
9
8
6
5
4
14
17
19
18
17
22
17
20
23
16
21
15
3
3
2
1
10
11
4
5
12
13
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
18 N
·
m (1.8 kgf
·
m, 13.3 ft
·
Ib)
Fuel tank / Carburetor unit

Yamaha WaveRunner VX 700 Specifications

General

Model	WaveRunner VX 700
Displacement	701cc
Fuel Capacity	13.2 gal
Rider Capacity	3
Width	46.1 inches
