Yamaha WaveRunner VX 700 Service Manual

7-11
ELEC
Electrical system
– +
Starter relay

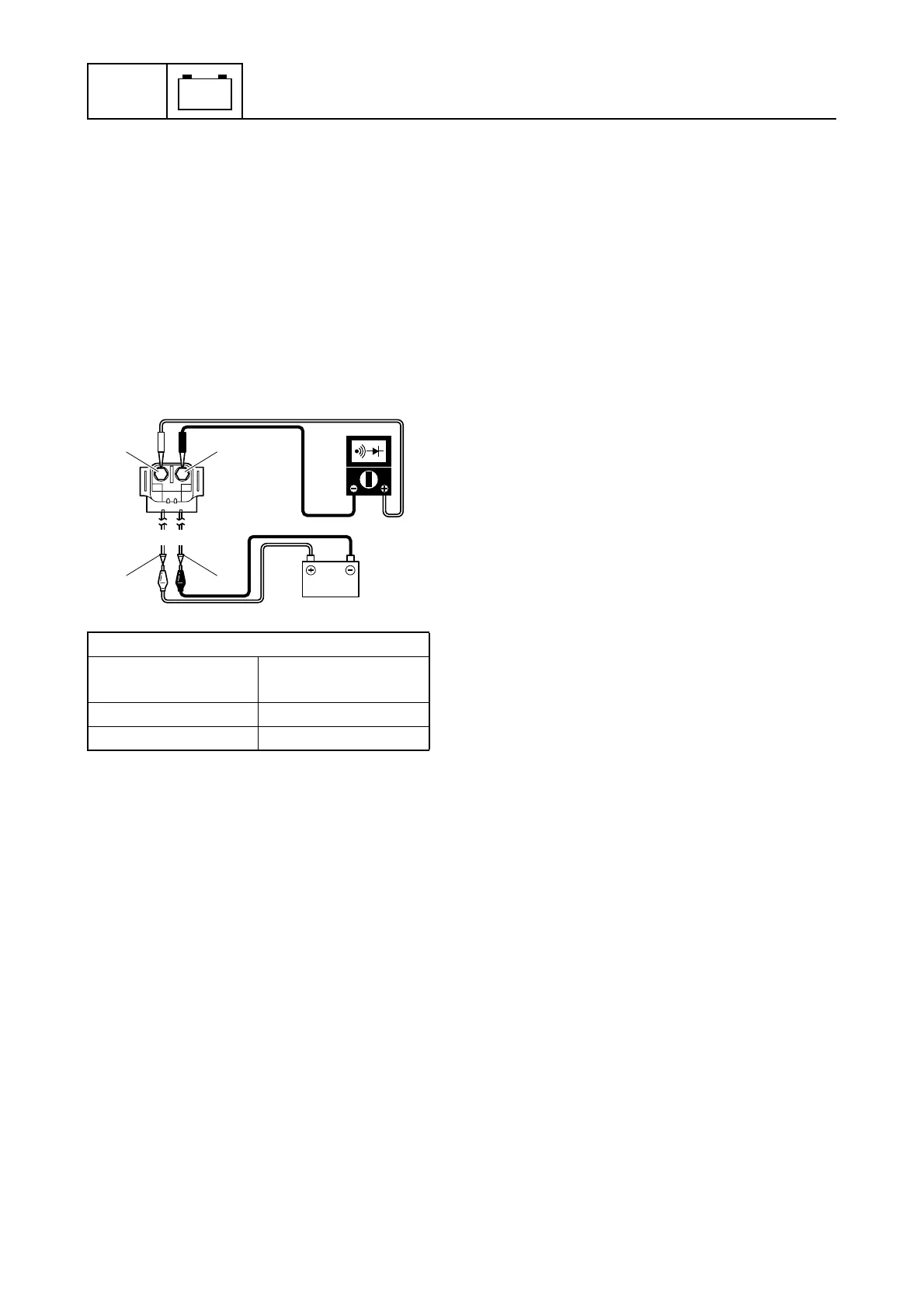

1. Connect the tester leads between the
starter relay terminals 1 and 2.
2. Connect the positive battery lead to the
terminal a, and the negative battery lead
to the terminal b.
3. Check the continuity between the starter
relay terminals 1 and 2.
4. Replace the starter relay if out of specifi-
cation.
Starter relay continuity:
Battery lead
a – b
Terminal
1 – 2
Disconnected No continuity
Connected Continuity
Br B
1 2
a b
