Yamaha YW50AP User Manual

5-2
CARB
Order
1
2
3
4
5
6
7
8
9
0
q
w
e
Q’ty
1
1
1
1
1
1
1/1
1
1
1
1
1
1

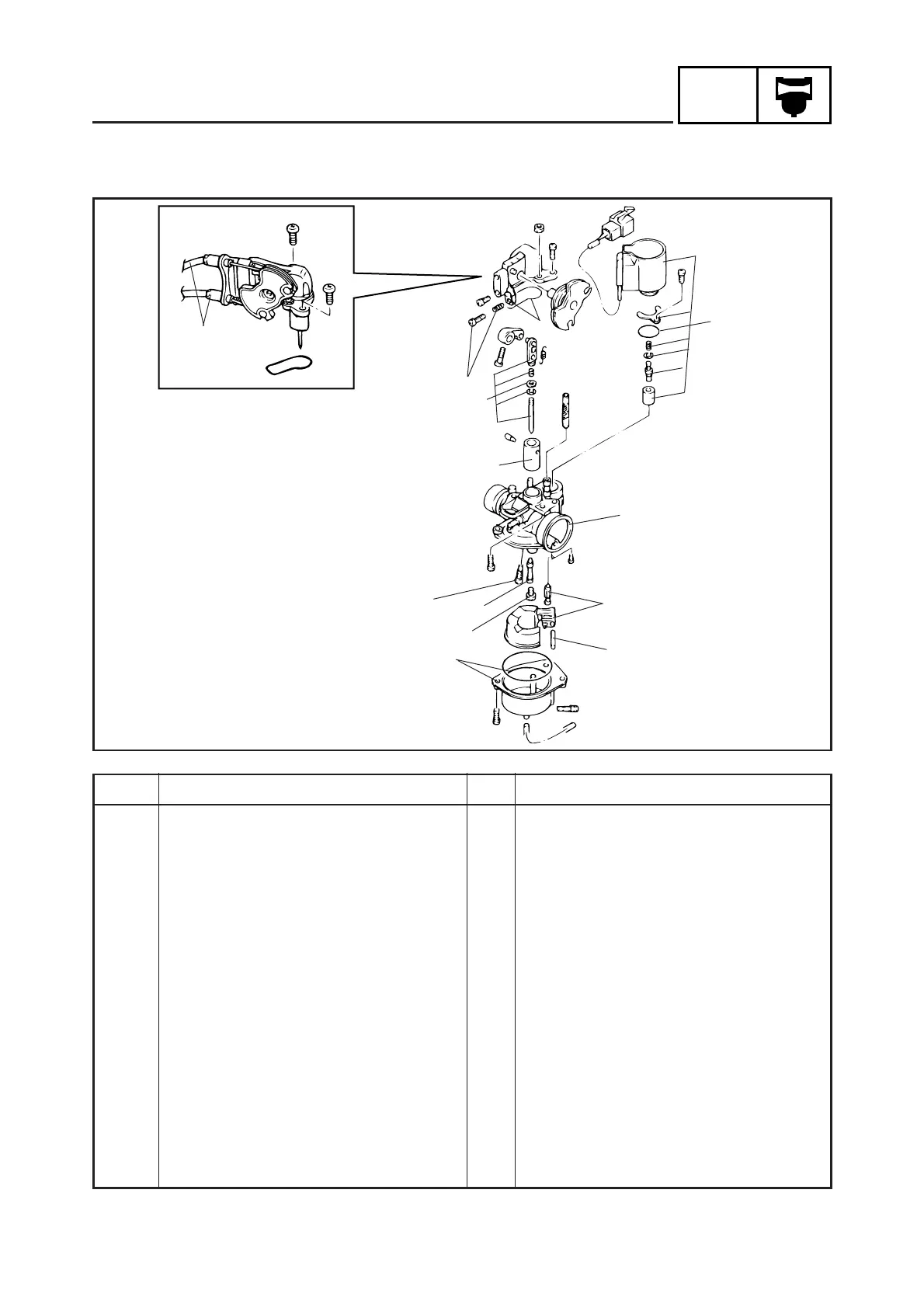

CABURETOR DISASSEMBLY
Remarks
Disassemble the parts in order.
Reverse the removal procedure for in-
stallation.
Job name/Part name
Carburetor disassembly
Throttle cable
Throttle valve
Needle set
Carburetor top cover/o-ring
Throttle stop screw
Auto choke unit assembly
Float chamber/Seal ring
Float pin
Float/Needle valve
Main jet
Pilot jet
Main nozzle
Carburetor body
CARBURETOR
1
5
6
e
9
8
7
0
w
q
3
2
4
