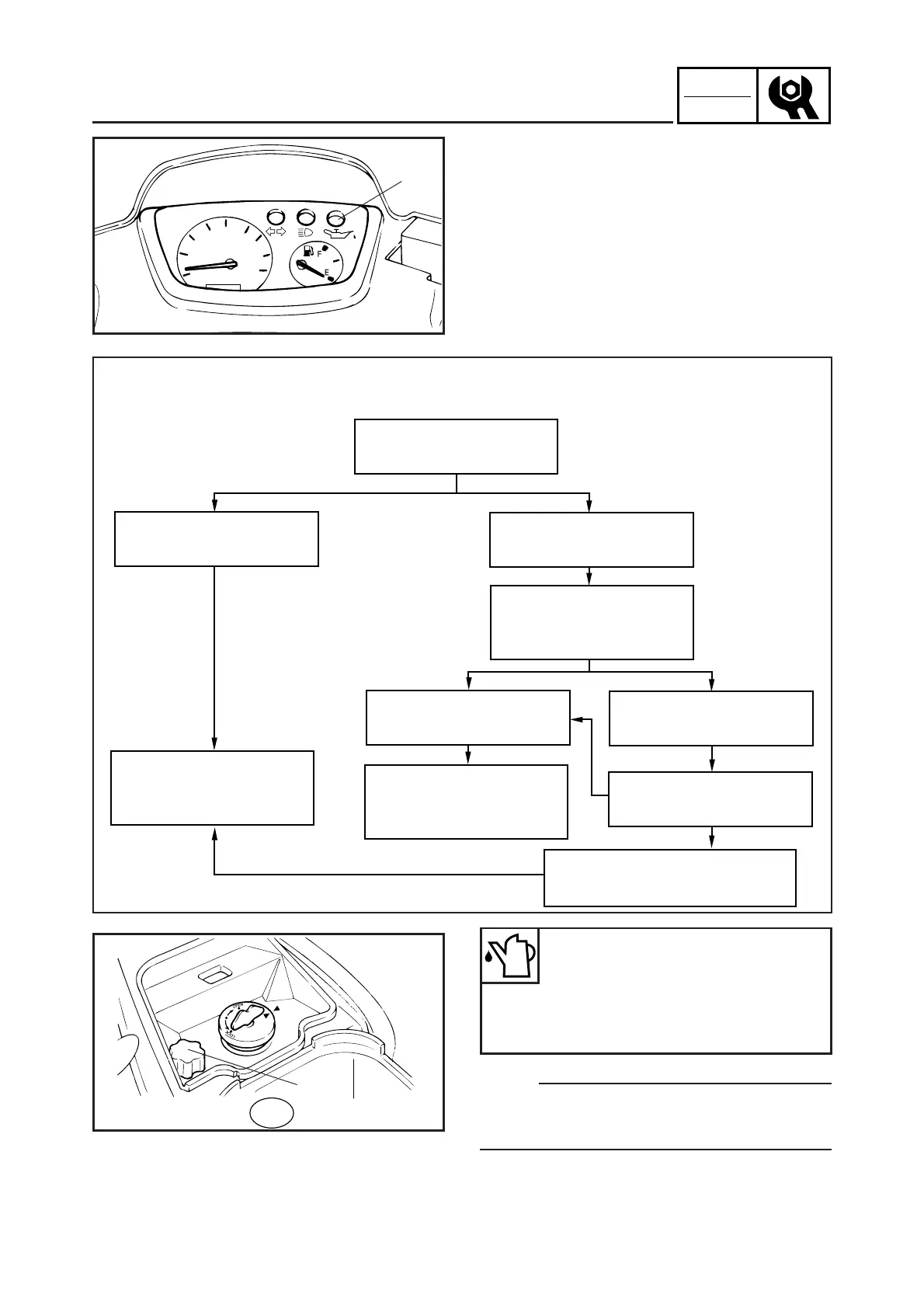

ENGINE OIL LEVEL INSPECTION
1. Inspect:
8 Engine oil level Oil level low→Add suf-
ficient oil by the following inspection
steps.
1 “OIL” indicator light
Recommended oil:
For Yamaha:
Yamalube 2 or 2-stroke engine oil
(ISO EG-C, EG-D grade)
Total:
1.4L(1.23 lmp.qt, 1.48 US.qt)
NOTE:
Install the oil tank filler cap 1 and push it fully
into the filler.
Engine oil level visual inspection steps:
Turn main switch to ”*”
position.
“OIL” indicator light does
not comes on.
Inspect faulty electrical
circuit, light bulbs etc.
“OIL” indicator light
comes on.
Turn main switch to
“ON” position.
“OIL” indicator light does
not come on.
Engine oil level and elec-
trical circuit are OK.
“OIL” indicator light
comes on.
Supply engine oil.
“OIL” indicator light comes on.
ENGINE OIL LEVEL INSPECTION
1
1
