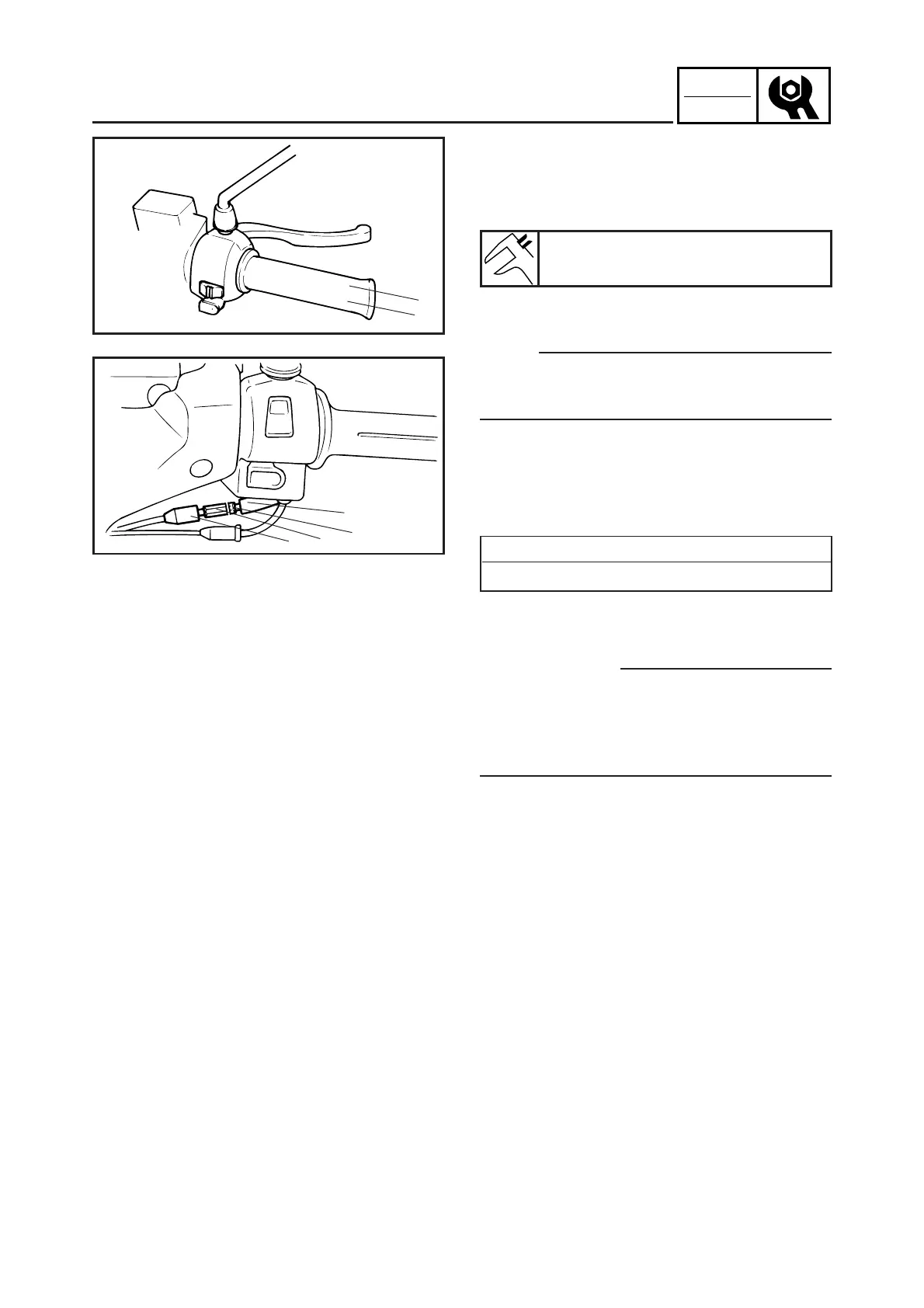

THROTTLE CABLE FREE ADJUSTMENT
1. Check:
8 Throttle cable free play a
Out of specification→Adjust.
Free play:
3 ~ 5 mm(0.12 ~ 0.20 in)
***************************************
Throttle cable free play adjustment steps;
NOTE:
Before adjusting the throttle cable free play, the
engine idle speed should be adjusted.
8 Remove the adjuster cover 1
8 Loosen the locknut 2 on the throttle cable.
8 Turn the adjuster 3 in or out until the speci-
fied free play is obtained.
Turning in→Free play is increased.
Turning out→Free play is decreased.
8 Tighten the locknuts.
8 Install the adjuster cover
w
After adjusting the throttle cable free play, start
the engine and turn the handlebar to the right
and to the left to ensure that this does not cause
the engine idling speed to change.
