4-21
ENG
V-BELT, CLUTCH AND
SECONDARY/PRIMARY SHEAVE

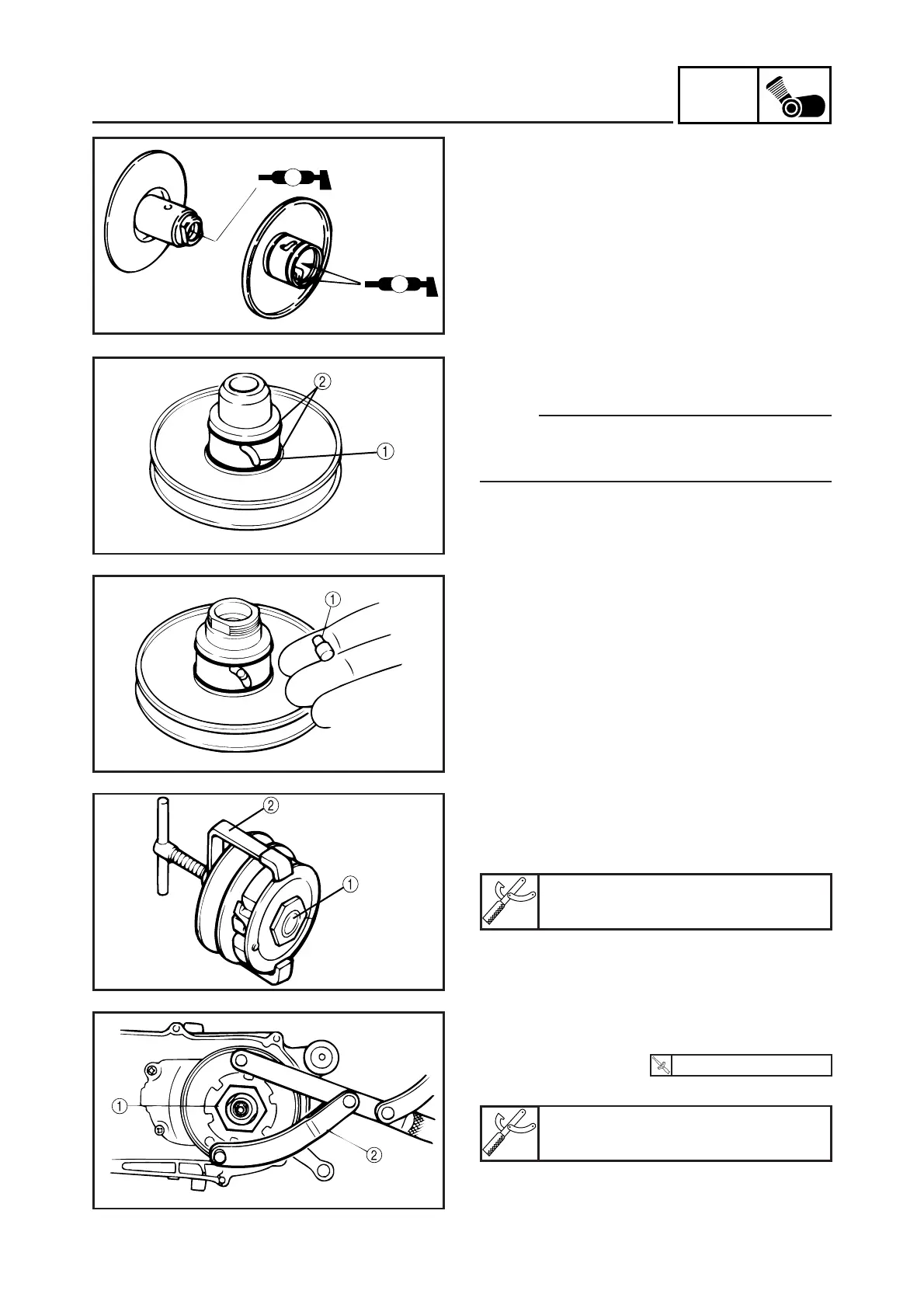

SECONDARY SHEAVE INSTALLATION
When assembling the secondary sheave, re-
verse the disassembly procedure. Note the fol-
lowing points.
1. Apply:
8 Lithium soap base grease
(to the inside of the sliding/fixed sheave)
2. Install:
8 Sliding sheave 1
NOTE:
Be careful so that the oil seal 2 lips are not
turned over when installing the sheave.
3. Apply:
8 Lithium soap base grease
(to the torque cam grooves and O-rings)
4. Install:
8 Guide pin 1
5. Check:
8 Sliding sheave
Unsmooth operation→Repair.
6. Install:
8 Clutch securing nut 1
Use clutch spring holder 2
Clutch spring holder:
YS-28891
7. Tighten:
8 Clutch securing nut 1
50 Nm(5.0 m.kg, 36 ft.lb)
Use Flywheel holding tool 2
Rotor holding tool
YU-01235
LS
LS
T
R
.
.
