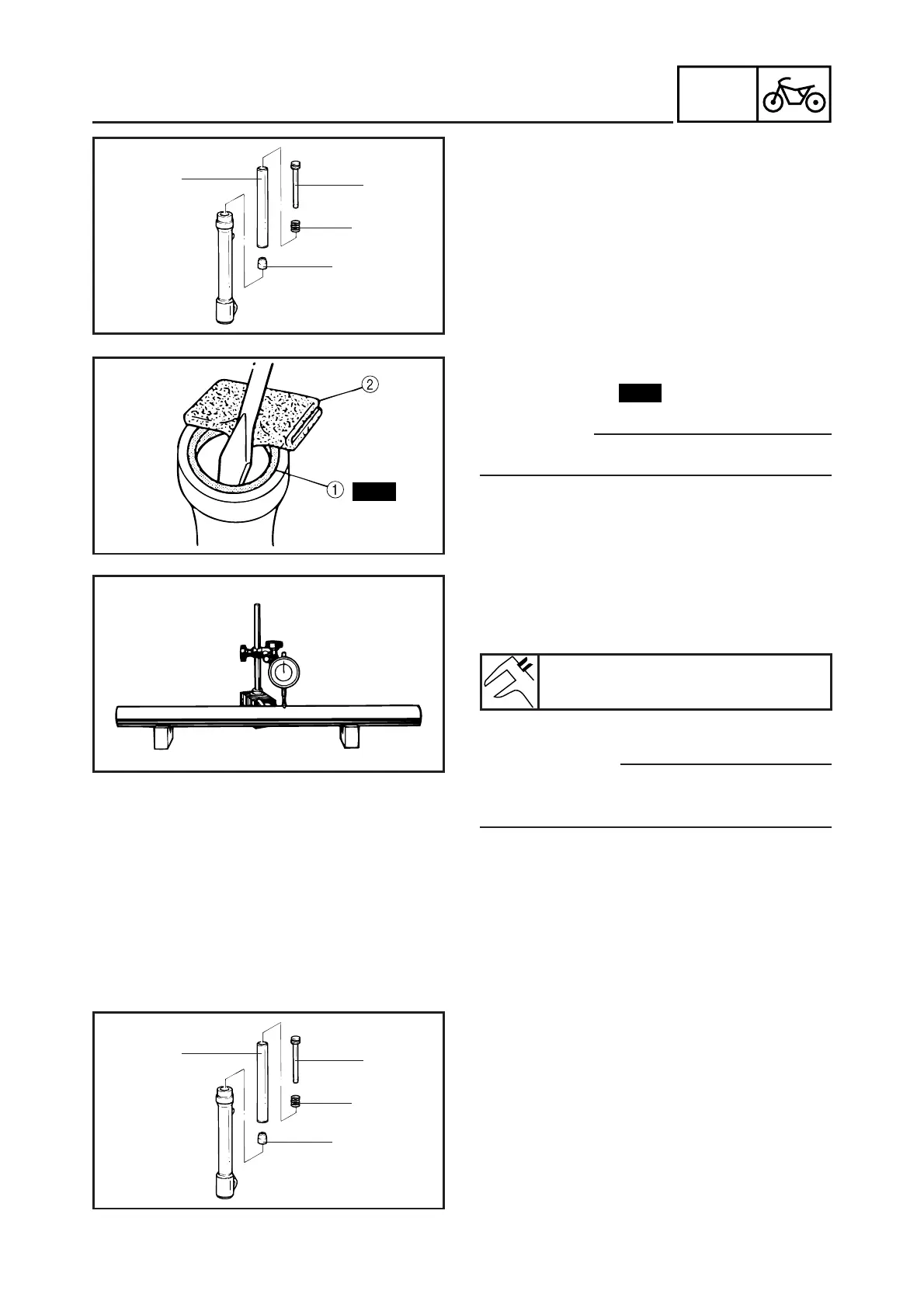

6-37
CHAS
FRONT FORK
2. Remove:
8 Inner tube 1
8 Oil lock pice 2
8 Damper rod 3
8 Rebound spring 4
3. Remove:
8 Oil seal 1
New
cC
Never reuse the oil seal.
2 Rag
YP703030
FRONT FORK INSPECTION
1. Inspect:
8 Inner tube bending
Inner tube bending limit:
0.2 mm(0.008 in)
Scratches/bends/damage→Replace.
w
Do not attempt to straighten a bent inner tube
as this may dangerously weaken the tube.
YP.....
FRONT FORK ASSEMBLY
Reverse the “ DISASSEMBLY” procedure.
Note the following points.
1. Install:
8 Damper rod 1
8 Rebound spring 2
8 Oil lock piece 3
8 Inner tube 4
1
3
4
2
New
4
1
2
3
To Next Page
