spring prevents the pulling-in of clothes into the guide spindle,
•
chip protection,
·
securing screw
•
an overload clutch on the feed shaft,
•
safety screws for the Camlock bolts on the workpiece holder.
a. Lockable main switch
In the position "0", the lockable main switch can be secured against
accidental or non-authorized switching-on by means of a padlock.
When the main switch is switched off, the current supply is being
interrupted.
Except for the areas marked by the ideogram in the margin. In these
areas, there might be voltage, even if the main switch is being switched
off.
WARNIN G!
Dangerous voltage exists even if the main switch is switched off.
In the areas marked by the ideogram in the margin, there might be
voltage, even if the main switch is switched off.
b. EMERGENCY-STOP button
The EMERGENCY-STOP button switches the lathe off.
After actuating the switch, turn it to the right, in order to restart the
lathe.

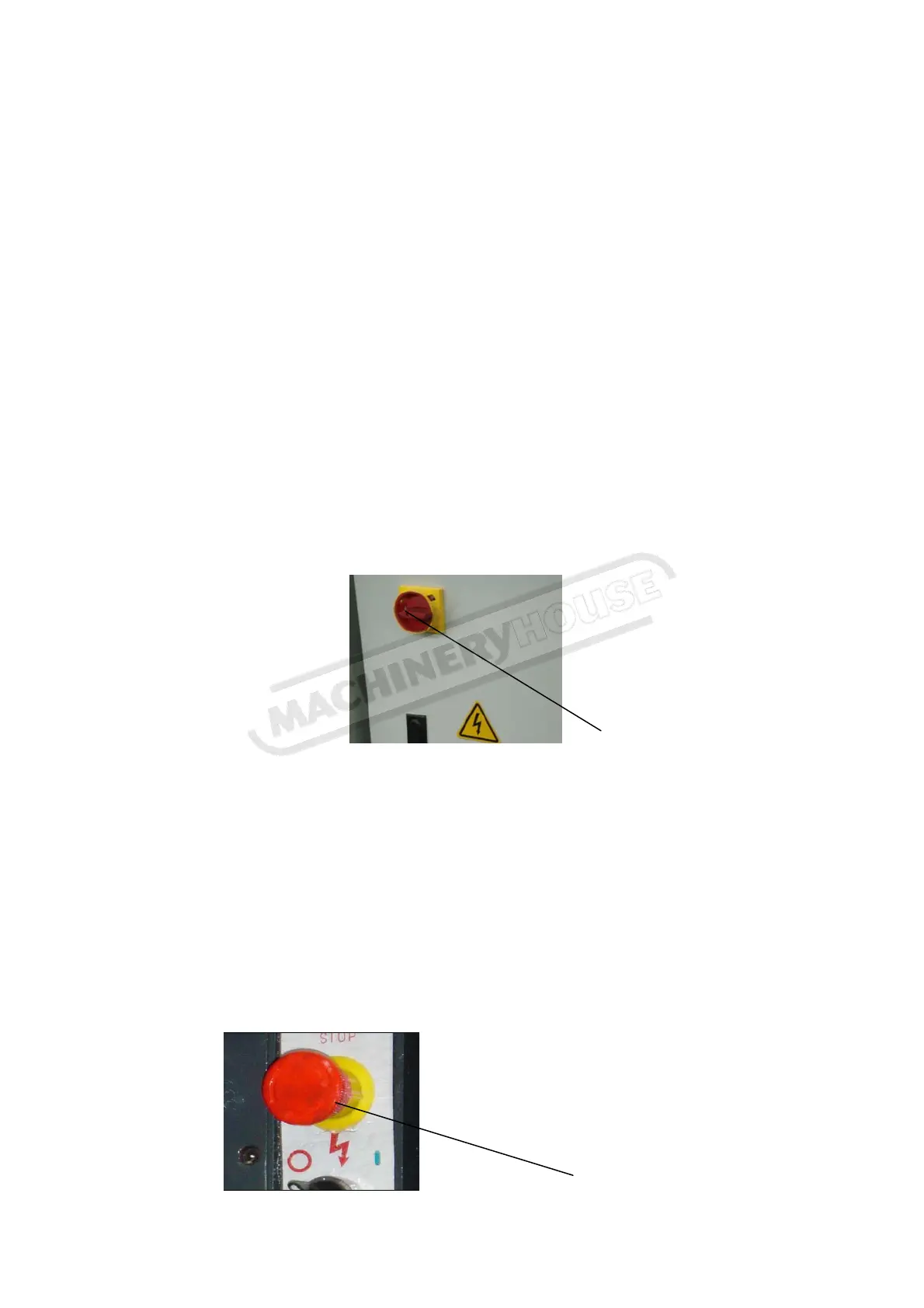

main switch
EMERGENCY-
STOP button
Instructions Manual for CL-38 (L190)
