Construction of the Ground
Due to the recent tendency of utilizing Ultra-Hard
Alloy Steel tools, it surely increases the speed of
heavy cutting comparing to the previous steel tool.
But, in the mean time, it easily happens to the
vibration of the machine. For assuring better cutting
result, it requires a very strong and steady
construction of ground. (Please refer to right

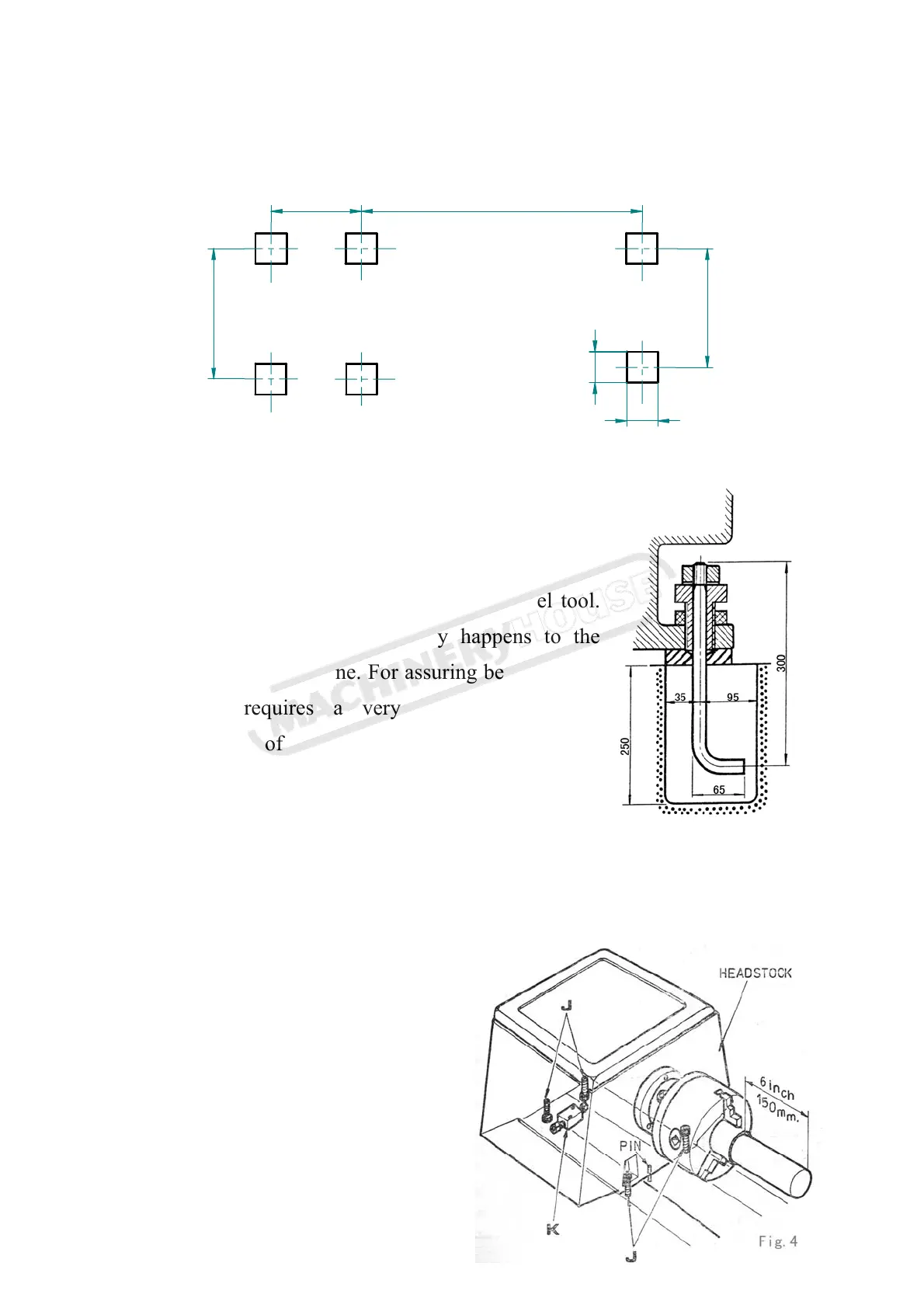

illustration of construct in of ground)(Fig.3)
7. Lathe Alignment Part.1
With the lathe install and running. We recommend a check on machine
alignment before commencing work. Check leveling and machine
alignment at regular periods to
periods to ensure continued lathe
accuracy.
Headstock check: Take a light
cut-with a keen tool over a 6 in.
(150mm.) length of 2 in. dia. (50mm)
steel bar gripped in the chuck but
Fig.2
/1680
Fig.3
Instructions Manual for CL-38 (L190)
