12. Speed Controls (2 Speed Motor)
Spindle speeds: Selected by the two lever controls and electrical
switch, on the headstock and stand. The sixteen available speeds are
shown directly on the data plate. While the electrical switch set at (1)
position, the small lever rotated right-hand side, it provides speeds
from 1800-510r.p.m., and rotated to left-hand side, it provides speeds
from 330-90r.p.m. Then move the large lever to the appropriately
colored arrow aligned with the required speed on the data plate.
While the electrical switch set at (2) position, it provides speeds from
900-255 R.P.M. and 165-45 R.P.M. When the small lever set at upper
or bottom position, the spindle is free for hand rotation.

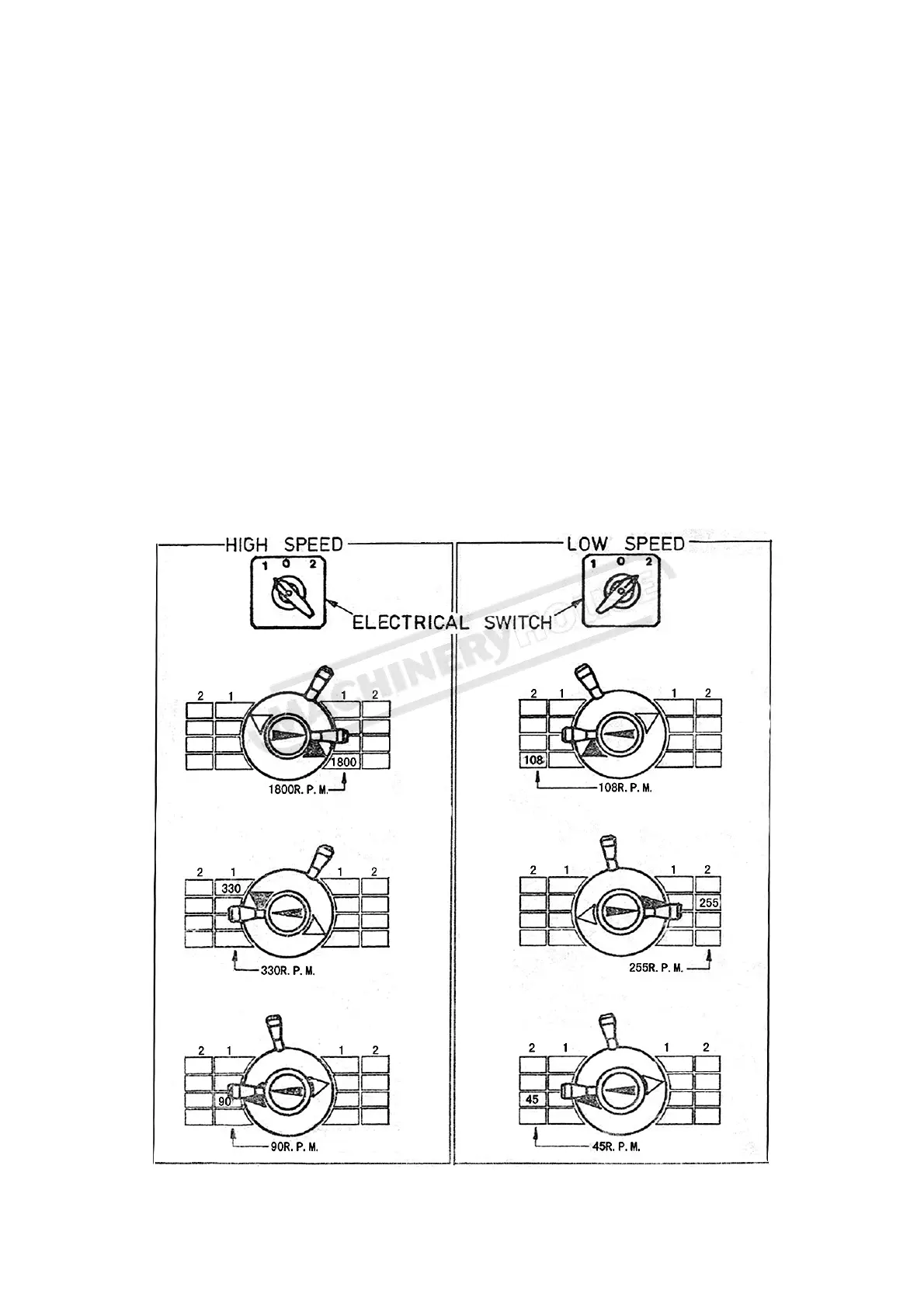

Fig.11
Instructions Manual for CL-38 (L190)
