4. Lifting
Use a sling-chain to sling the lathe as in fig position the saddle
and tailstock along the bed to obtain balance.
Important
: The sling-chain should not touch the leadscrew or
Feed-shaft to avoid damage.
Unloading of the machine. When the machine is unloaded from the car
or to be moved, please proceed with

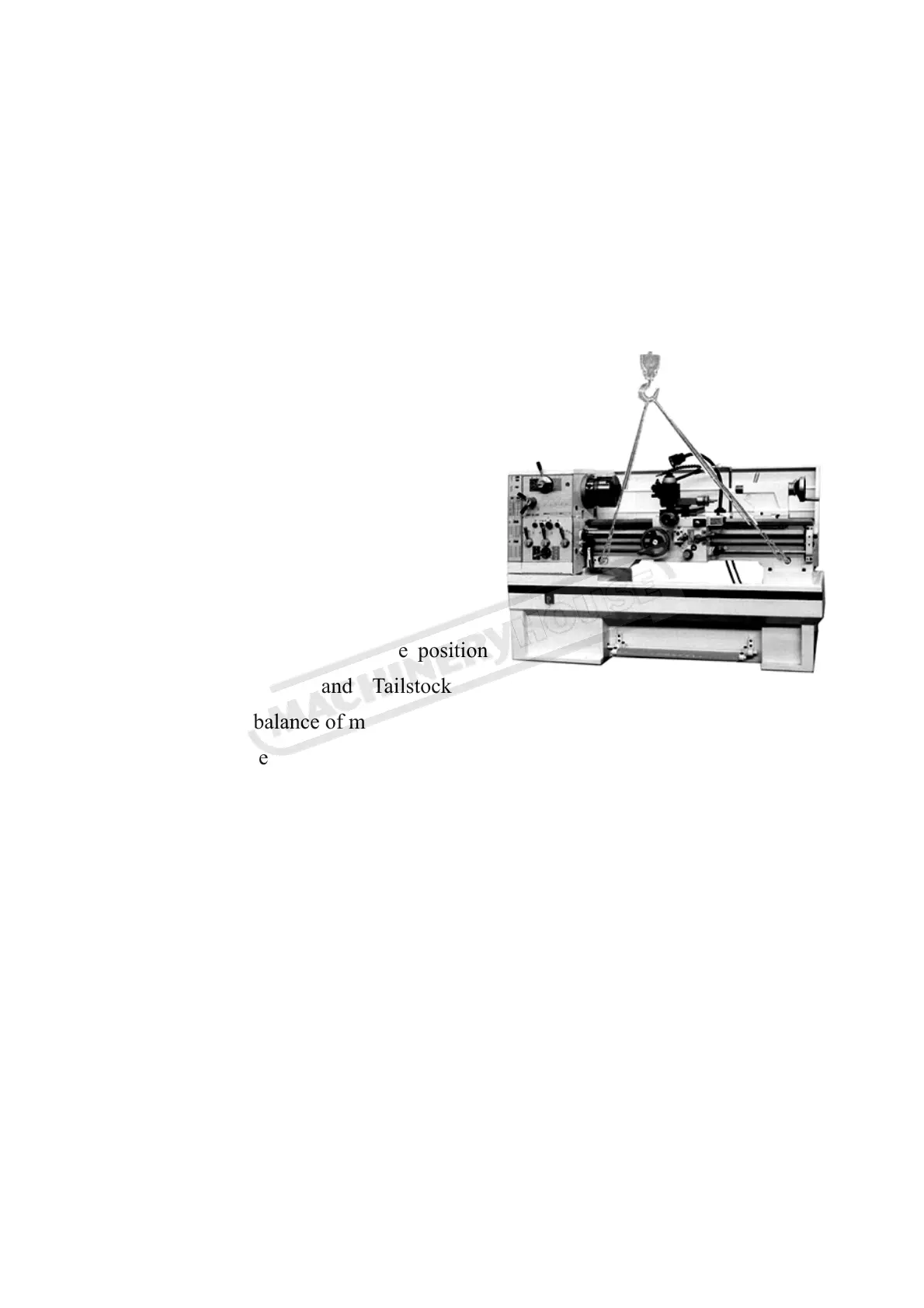

following steps (Fig.1)
1. Preparing two round sticks (long
approx.800mm dia 35mm) insert into
the preserved holes on lathe bed. Then
lift up with applying wires on both end
of the stick.
Lifting the machine by a crane.
3. Before lifting adjust the position
of Lathe Apron and Tailstock to
maintain the balance of machine.
4. When the machine was shifted to its destination, always handle with
care to put it down. Don’t let go of it to hit the ground or it will affect the
accuracy of the machine
Note: Machine weight can be seen in Specification Table.
5. For the adjustment of electric control, keep the distance between
machines and wall not less than 600mm.
