PRODUCT OVERVIEW
22 JH Series Operation Manual
Instrument Panel

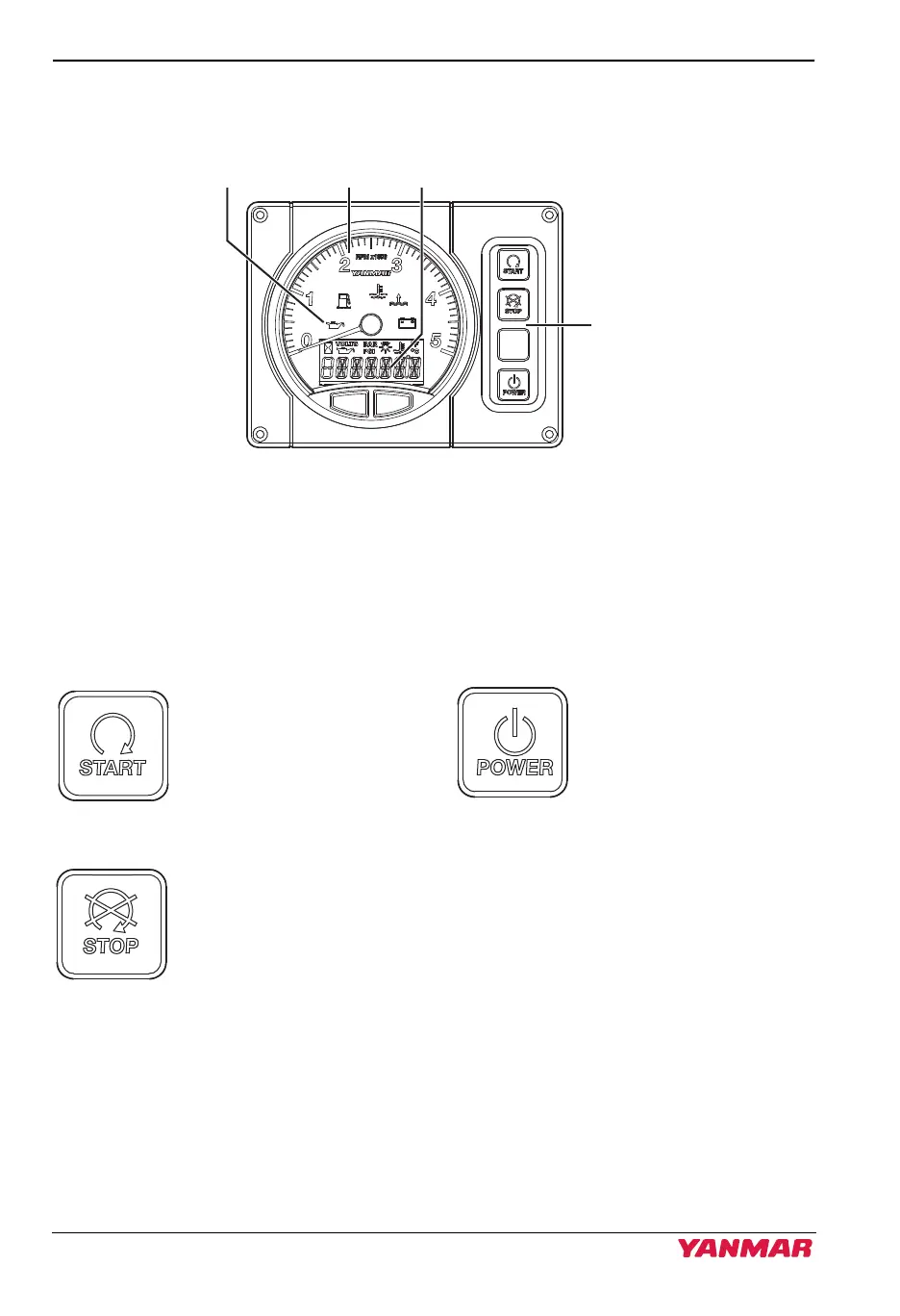

The formats for the instrument panel are shown below.
Figure 12
1 – Alarm lamp
2 – Tachometer
3–LCD
4 – Switches (push-buttons)
Control panel switches
All switches are push-buttons.
042563-02X00
4
213
Start switch
Pushing this switch
operates the starter and
starts the engine.
Stop switch
Pushing this switch stops
the engine.
042564-01X00
042565-01X00
Power switch
Pushing this switch turns
on or off the power.
