Yanmar 4LHA-HTP User Manual

Chapter 3 Fuel Injection Equipment
2. Disassembly, Reassembly and Inspection of Governor
4LHA Serit
2. Disassembly, Reassembly and Inspection
of Governor

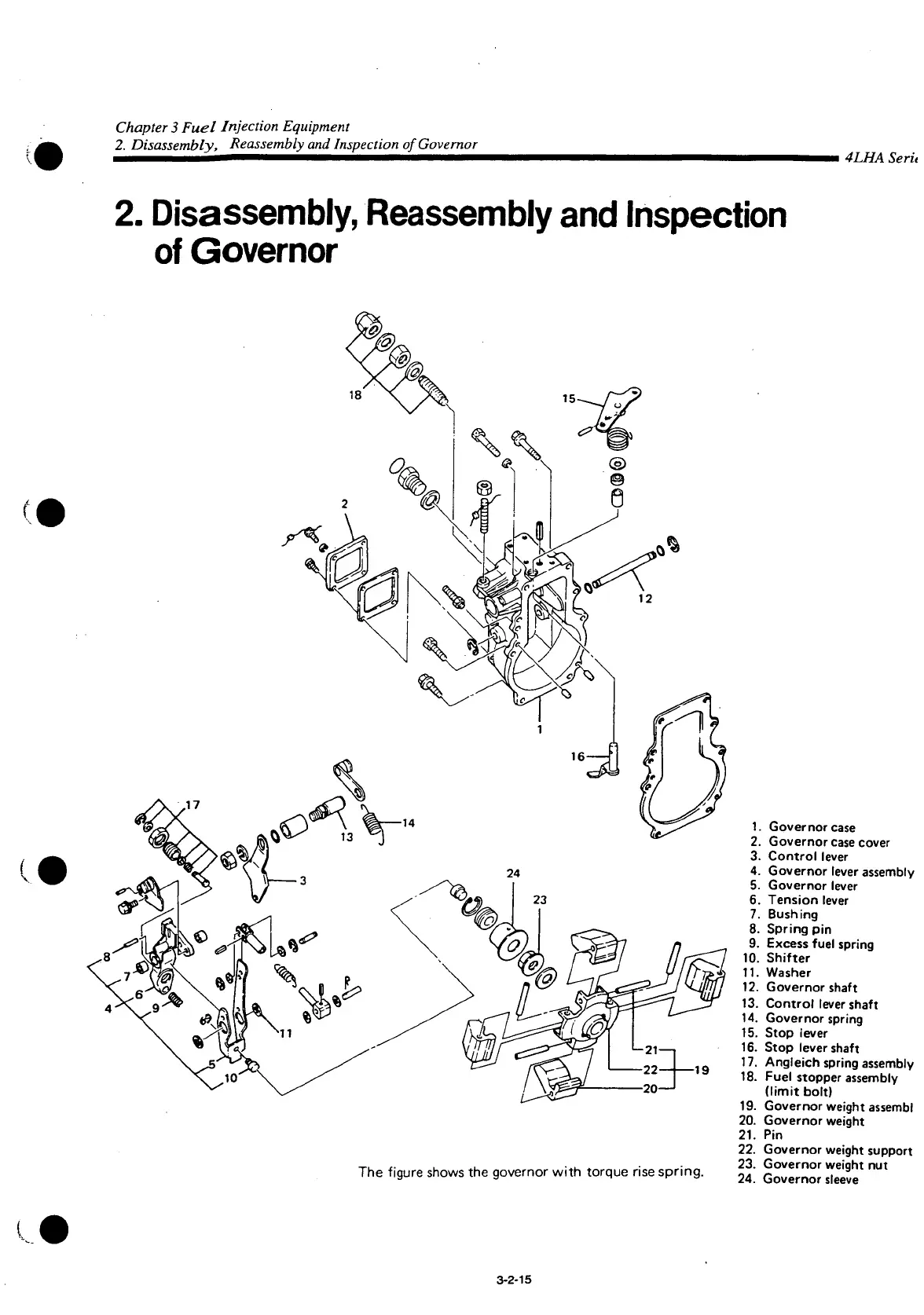

The figure shows the governor with torque rise spring.
19
20.
21.
22.
23.
24.
. Governor case
. Governor case cover
. Control lever
. Governor lever assembly
. Governor lever
. Tension lever
. Bushing
. Spring pin
. Excess fuel spring
. Shifter
Washer
Governor shaft
Control lever shaft
Governor spring
Stop iever
Stop lever shaft
Angleich spring assembly
Fuel stopper assembly
(limit bolt)
Governor weight assembl
Governor weight
Pin
Governor weight support
Governor weight nut
Governor sleeve
3-2-15
