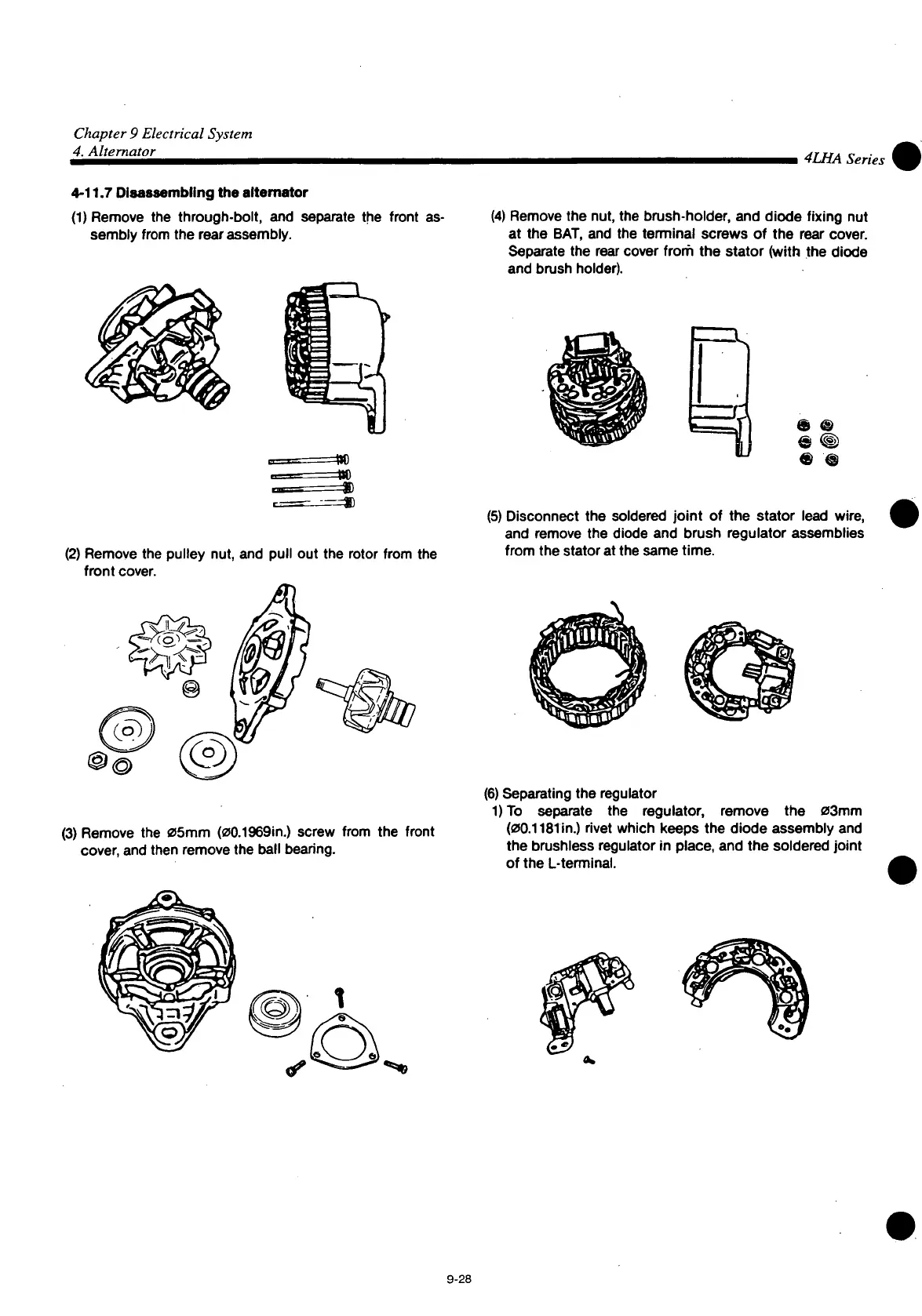

Chapter 9 Electrical System
4. Altemator
4LHA Series
4-11.7
Disassembling the
altemator
(1) Remove the through-bolt, and separate the
front
as-
sembly
from the rear
assembly.
(4) Remove the nut, the brush-holder, and diode fixing nut
at the BAT, and the terminal screws of the rear cover.
Separate
the rear cover from the stator
(with
the diode
and
brush holder).
=»
(2) Remove the pulley nut, and pull out the rotor from the
front
cover.
(5) Disconnect the soldered
joint
of the stator lead wire,
and
remove the diode and brush regulator assemblies
from the stator at the same time.
(3) Remove the 05mm (0O.1969in.) screw from the
front
cover,
and then remove the ball bearing.
(6) Separating the regulator
1)To separate the regulator, remove the 03mm
(00.1181
in.)
rivet
which keeps the diode assembly and
the brushless regulator in place, and the soldered
joint
of the L-terminal.
9-28
