5 Description of the driving position
30

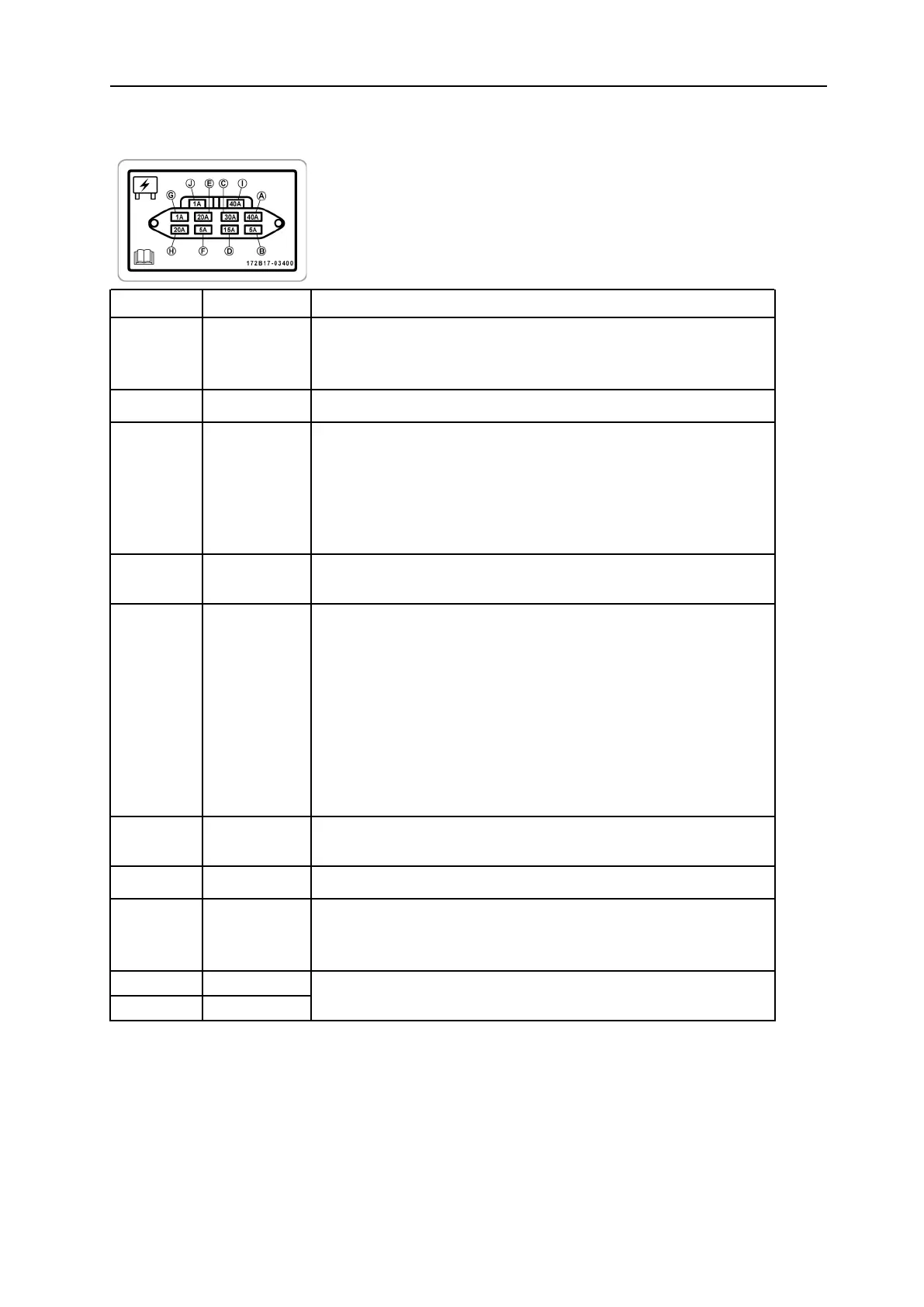

5.7.1 Fusebox
Symbol Fuse capacity
Circuit name
A 40A
Cigar lighter
Heating
Cab lighting
B 5A
Operator display station
C 30A
Boom headlamp
Switches
Operator display station
Horn
Movement alarm (Options )
Safety valves (Options )
D 15A
Windscreen wiper
Windscreen washer
E 20A
Safety relay
Anti theft mechanism (Options )
Preheating relay
Operator display station
Enginestop solenoid
Alternator
Electric engine fuel supply pump
Right command lever
Left command lever
Boom rotation relay / PTO 1
F 5A
Safety valves (Options )
Cut-off valve
G 1A
Radio (Options )
H 20A
Centralized greasing system (Options )
Automatic engine idle (Options )
Plug-in flashing light (Options )
I
40A
Spare fuses
J
1A
