7 Options
53
7.19.1 Dismantling the accessory

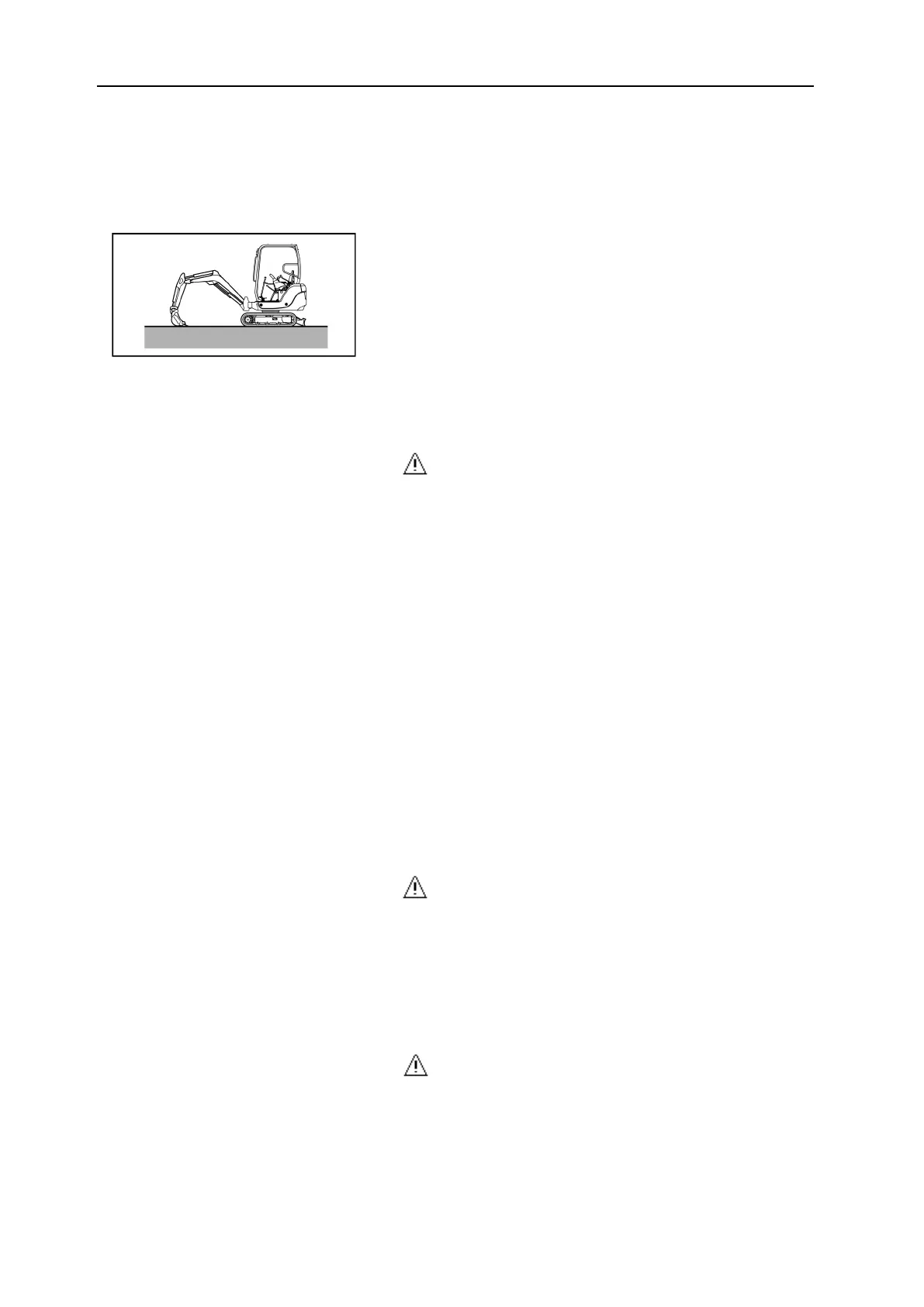

1. Park the machine preferably on a stable, flat and level surface.
2. Place the accessory on the ground.
3. Turn the switch (1) to ON.
The contactor switch indicator lights and the alarm sounds.
WARNING
If the warning light does not come on or if the alarm does not sound, stop the current ope-
ration and contact your dealer.
4. Hold switch (2) in the locked position until the locking pins are completely retracted.
The green light comes on. The control rod is visible (C).
5. Take the boom to disengage the accessory hooks on the bucket pin or accessory.
6. Move the quick attachment away from the accessory.
7. Turn the switch (1) to OFF.
The light goes off and the alarm stops.
7.19.2 Mounting the accessory
1. Turn the switch (1) to ON.
The contactor switch indicator lights and the alarm sounds.
WARNING
If the warning light does not come on or if the alarm does not sound, stop the current ope-
ration and contact your dealer.
2. Hold switch (2) in the locked position until the locking pins are completely released.
The green light comes on. The control rod is not visible.
WARNING
Do not perform this step if the control rod is visible. You might damage the control rod
engaging the quick coupler to the bucket or accessory.
